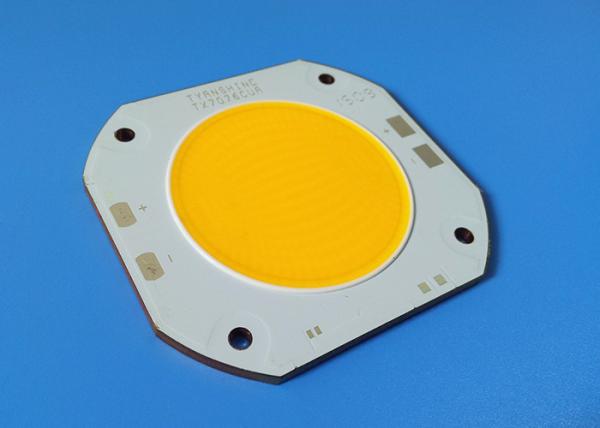

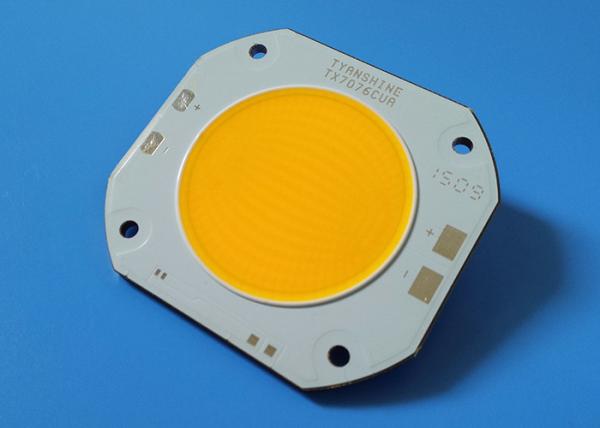

High CRI COB LED Array 95Ra Daylight 5600K 600W Fresnel COB LED
High CRI COB LED Array 95Ra Daylight 5600K 600W Fresnel COB LED
High CRI COB LED Array 95Ra Daylight 5600K 600W Fresnel COB LED
High CRI COB LED Array 95Ra Daylight 5600K 600W Fresnel COB LED
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-7076W6000D180CUY-B02AH95
Certification :
ISO9001:2008 SGS RoHS
Place of Origin :
CN
MOQ :
10pcs
Price :
negotiation
Payment Terms :
ExW, FOB, CIF
Supply Ability :
10000PCS/month
Delivery Time :
5-10 days
Packaging Details :
In Tray
Power :
600Watt
Voltage :
44V-48V
Color Temperature :
5600°K
LES :
Φ52mm
Lumen :
50000lm
TLCI :
90
CRI :
95Ra
R9 :
90
R12 :
85
Description

High CRI COB LED Array 95Ra Daylight 5600K 600W Fresnel COB LED ​

Features:

  1. High CRI, better performance, 95Ra+ @3200K, 90Ra+ @5600K
  2. High power/high efficiency package
  3. Full spectrum White Color-mixing by RGBY
  4. Integraged packages, low luminous decay and long lifespan
  5. 3mm Copper MCPCB, fast heat-conductivity
  6. Easy installation, save cost

Specifications:

Code Color

Vf

(V)

If

(A)

CCT

(K)

Φv

(lm)

 Power

LES

(mm)

CRI

(Ra)

TX-7076W600D180CUY

-C02AH95

 Tungsten 42-48 12 3200°K 40000-44000 600 Φ52 ≥95

TX-7076W600D180CUY

-B02AH95

 Daylight 42-48 12 5600°K 46000-50000 600 ≥95

Absolute Maximum Ratings at Ta=25℃

Parameter Symbol Values Units
Min. Typical Max.
Forward Voltage VF 44 - 48 V
Continuous Forward Current IF 12 A
Power Dissipation PD 400 W
Luminous Flux φV 46000 50000 lm
Correlated Colour Temperature CCT 5000 6000 7000 K
Color Rendering Index Ra 90 95
LED Junction Temperature Tj 150 ℃
ElectrostaticDischarge Threshoid ESD 2000 V

Applications:

Photography / TV / Film equipment luminaires

Fresnels lights

Entertainment stage/studio lighting

Architectural lighting
