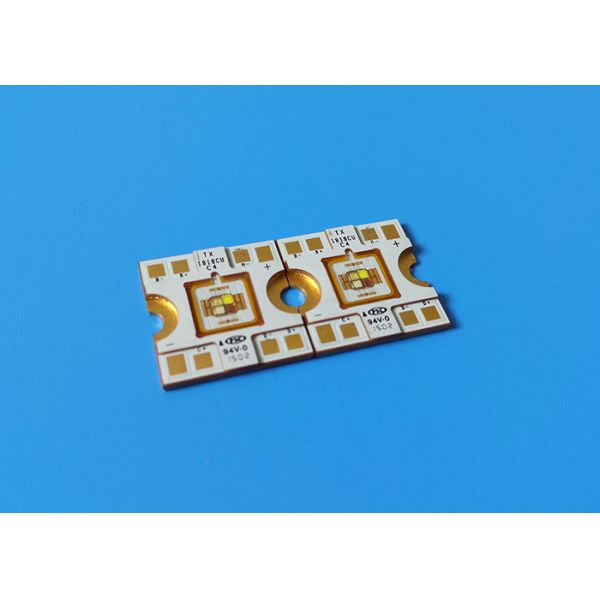

Quad RGBW LED Array 30W 4in1 Vertical Multichips 870lm LED Modules
Quad RGBW LED Array 30W 4in1 Vertical Multichips 870lm LED Modules
Quad RGBW LED Array 30W 4in1 Vertical Multichips 870lm LED Modules
Quad RGBW LED Array 30W 4in1 Vertical Multichips 870lm LED Modules
Quad RGBW LED Array 30W 4in1 Vertical Multichips 870lm LED Modules
Quad RGBW LED Array 30W 4in1 Vertical Multichips 870lm LED Modules
Quad RGBW LED Array 30W 4in1 Vertical Multichips 870lm LED Modules
Quad RGBW LED Array 30W 4in1 Vertical Multichips 870lm LED Modules
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-1818RGBW30FC120-CUHCNG-01
Certification :
ISO9001:2008 ROHS SGS
Place of Origin :
CN
MOQ :
10
Payment Terms :
Western Union, T/T, L/C
Packaging Details :
In tray
Color-mixing :
Quad 4in1 RGBW
Forward Current :
1.8A
Forward Voltage :
DC2-4V
Power :
30W
LES :
Φ11mm
Lumen :
780-870 lm
Description

Quad RGBW LED Array 30W 4in1 Vertical Multichips 870lm LED Modules

Features for 30W RGBW LEDs:

1, Small LES, high brightness and light density. To generate strong light beam.

2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance

3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;

4, Average efficiency upto 40lm/W @Tj=85℃ with full power;

5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately,

Quad RGBW LED Array 30W 4in1 Vertical Multichips 870lm LED Modules

Specifications:

Code Color

Vf

(V)

If

(mA)

RθJ-C

Φv

(lm)

 Power

LES

(mm)
TX-1818RGBW30FC120-CUHCNG-01 RGBW 2-4V 1800 0.75 K/W 780-8700 30

9 x 9

Φ11mm

Characteristics at If=1800mA (Ta=85°C)

Parameter Symbol Emitting
Color		 Values
Min. Typ. Max.
Luminous Flux φv R 190lm 220lm -
G 210lm 230lm -
B 55lm 65lm -
W 330lm 360lm -
Dominant Wavelength λd R 615nm 620nm 625nm
G 515nm 520nm 525nm
B 452nm 456nm 460nm
Colour Temperature CCT W 6500K 7500K 8500K
Forward Voltage Vf R 2.4V - 3.2V
G 3.2V - 4.0V
B 3.2V - 4.0V
W 3.2V - 16V

Applications:

Entertainment lighting, Projection lights

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber optic lighting
