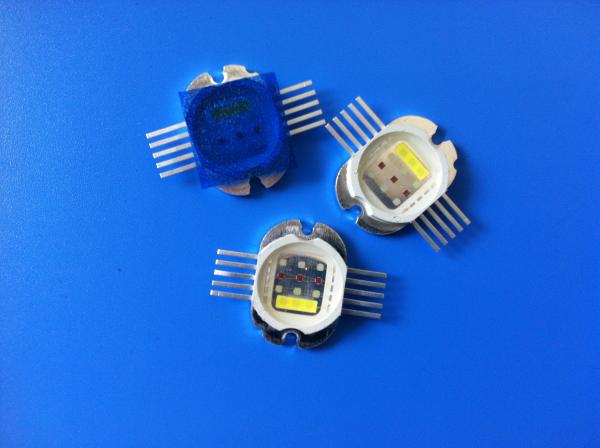

Integrated RGBW Multicolor Led Diode , High Power 30W 4IN1 RGB White LED Module
Integrated RGBW Multicolor Led Diode , High Power 30W 4IN1 RGB White LED Module
Integrated RGBW Multicolor Led Diode , High Power 30W 4IN1 RGB White LED Module
Integrated RGBW Multicolor Led Diode , High Power 30W 4IN1 RGB White LED Module
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-BRGW30C180-001
Certification :
ISO9001:2008 SGS RoHS
Place of Origin :
CN
MOQ :
100pcs
Price :
negotiation
Payment Terms :
EXW,FOB,CIF,CFR
Supply Ability :
1, 000, 000pcs/month
Delivery Time :
5-10 days

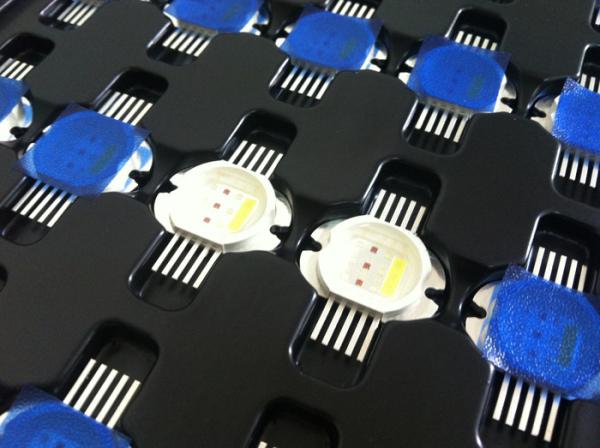

Packaging Details :
In plastic tube
Power :
30W
Color :
RGBW
Current :
700mA
Chip :
Epileds Cree
Applications :
Stage lighting
Features :
Low voltage DC operation
Description

Integrated RGBW Multicolor Led Diode , High Power 30W 4IN1 RGB White LED Module

Products’ Features:

  1. High index of refraction, Good thermal stability
  2. Strong ability of Anti-interference
  3. Low voltage DC operation
  4. Multi-color, 4-IN-1, 5-in-1

Specifications:

Absolute Maximum Ratings at Ta=25℃

Parameter Symbol Value (Max.) Unit
LED Junction Temperature Tj 150 ℃
Power Dissipation PD mW
B 8400
R 6400
G 8400
W 8400
Peak Forward Current IFP 1000 mA
Continuous Forward Current IF 700 mA
Electrostatic Discharge Threshoid ESD 2000 　
Operating Temperature Range Topr -40 ~ +70 ℃
Storage Temperature Range Tspr -40 ~ +100

Characteristics at If=2400mA (Ta=25°C):

Parameter Symbol Color Values Unit
Min. Typical Max.
Luminous Flux φv lm
B 140 160 -
R 270 310 -
G 400 450 -
W 450 520 -
Viewing Angle at 50﹪IV 2θ1/2 - - 120 - Deg
Dominant Wavelength λd
B 462 465 468
R 620 623 626
G 522 525 528
Correlated Colour Temperature CCT W 6000 7000 8000 K
Forward Voltage Vf V
B 9 10.5 12
R 6 7.5 9
G 9 10.5 12
W 9 10.5 12
Thermal Resistance Junction to Case RθJ-C - - 0.5 - K/W
Temperature Coefficient of Forward Voltage V△F/T - - -2 - mV/℃

Applications:

Stage lighting, LED Par lights, LED Moving-head lights

Entertainment lighting

Architectural lighting

Landscape lighting

Integrated RGBW Multicolor Led Diode , High Power 30W 4IN1 RGB White LED Module
