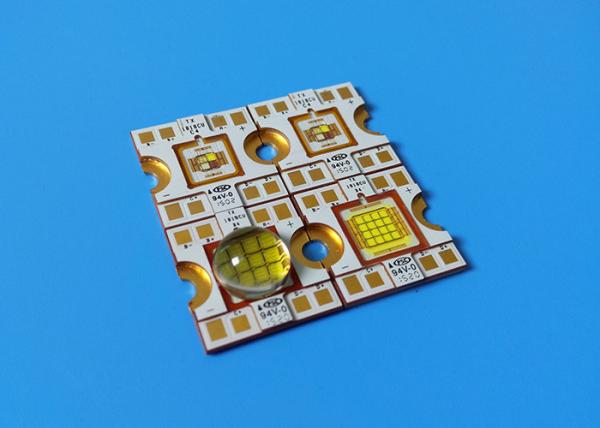

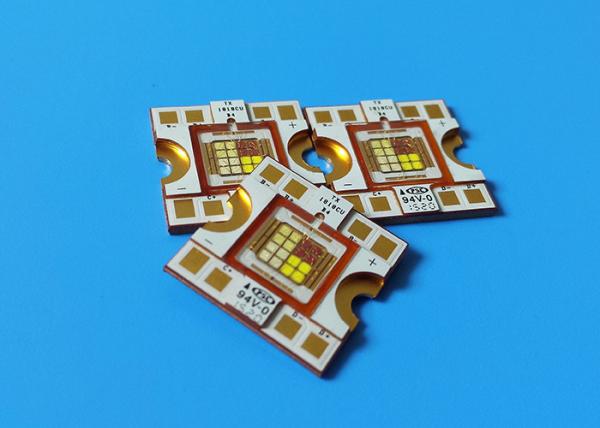

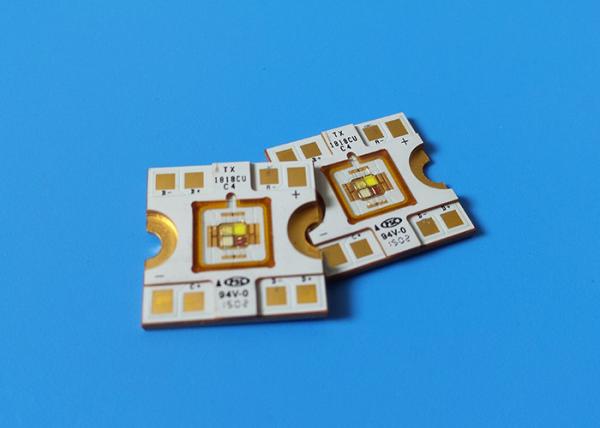

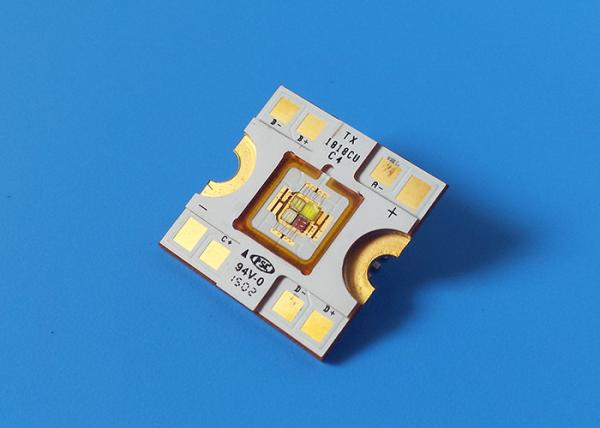

RGBW Multi Color LED Diode , 30W / 60W Copper Base LED Modules
RGBW Multi Color LED Diode , 30W / 60W Copper Base LED Modules
RGBW Multi Color LED Diode , 30W / 60W Copper Base LED Modules
RGBW Multi Color LED Diode , 30W / 60W Copper Base LED Modules
RGBW Multi Color LED Diode , 30W / 60W Copper Base LED Modules
RGBW Multi Color LED Diode , 30W / 60W Copper Base LED Modules
RGBW Multi Color LED Diode , 30W / 60W Copper Base LED Modules
RGBW Multi Color LED Diode , 30W / 60W Copper Base LED Modules
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-1818RGBW30FC120-NUVCNG-01
Certification :
ISO9001:2008 ROHS SGS
Place of Origin :
CN
MOQ :
10
Payment Terms :
Western Union, T/T, L/C
Packaging Details :
In tray
Color-mixing :
Full color RGBW
Red :
615nm-625nm
Green :
515nm-525nm
Blue :
452nm-460nm
White :
6500K - 8500K
Forward Current :
1.8A
Power :
30W
Lumen :
900lm
Description

RGBW Multi Color LED Diode , 30W / 60W Copper Base LED Modules

Features for 30W RGBW LEDs:

1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam used for

Moving head lights.

2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance

3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;

4, Average efficiency upto 40lm/W @Tj=85℃ with full power;

5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately,

Specifications:

Code Color

Vf

(V)

If

(mA)

RθJ-C

Φv

(lm)

 Power

LES

(mm)
TX-1818RGBW30FC120-NUVCNG-01 RGBW 3.2-4.0 1800 0.75 K/W 780-900 30 9 x 9

Characteristics at If=1800mA (Ta=85°C)

Parameter Symbol Emitting
Color		 Values
Min. Typ. Max.
Luminous Flux φv R 190lm 220lm -
G 210lm 230lm -
B 55lm 65lm -
W 330lm 360lm -
Dominant Wavelength λd R 615nm 620nm 625nm
G 515nm 520nm 525nm
B 452nm 456nm 460nm
Colour Temperature CCT W 6500K 7500K 8500K
Forward Voltage Vf R 2.4V 2.8V 3.2V
G 3.2V 3.6V 4.0V
B 3.2V 3.6V 4.0V
W 3.2V 3.6V 4.0V

Applications:

Entertainment lighting, Projection lights

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber optic lighting

RGBW Multi Color LED Diode , 30W / 60W Copper Base LED Modules
