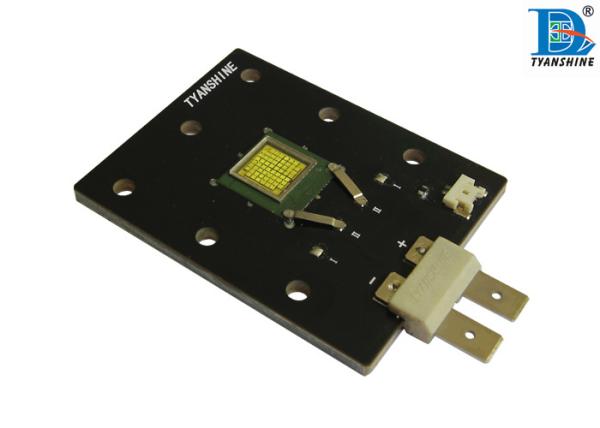

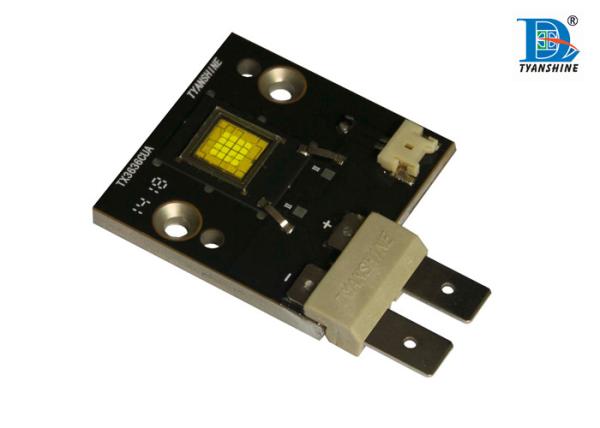

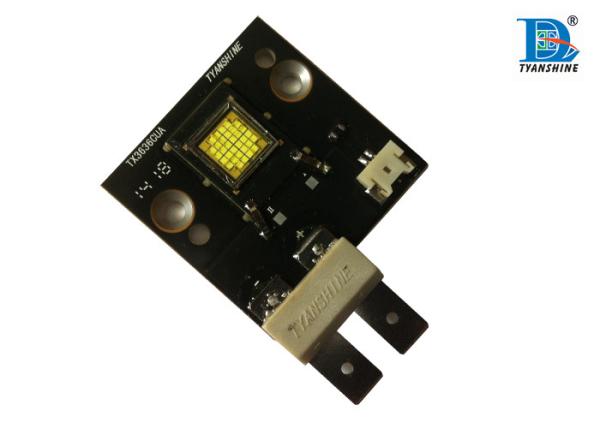

Eutectic Multi Chip White High Power LED Module 150W with Small LES 4.3 x 4.3 mm
Eutectic Multi Chip White High Power LED Module 150W with Small LES 4.3 x 4.3 mm
Eutectic Multi Chip White High Power LED Module 150W with Small LES 4.3 x 4.3 mm
Eutectic Multi Chip White High Power LED Module 150W with Small LES 4.3 x 4.3 mm
Eutectic Multi Chip White High Power LED Module 150W with Small LES 4.3 x 4.3 mm
Eutectic Multi Chip White High Power LED Module 150W with Small LES 4.3 x 4.3 mm
Eutectic Multi Chip White High Power LED Module 150W with Small LES 4.3 x 4.3 mm
Eutectic Multi Chip White High Power LED Module 150W with Small LES 4.3 x 4.3 mm
Specifications
Place of Origin :
CN
Brand Name :
TYANSHINE
Certification :
ISO9001:2008 SGS RoHS
Model Number :
TX-3636W150FC120-NUVENG-A01
MOQ :
10pcs
Price :
Negotiation
Packaging Details :
In Tray
Delivery Time :
5-10 days
Payment Terms :
ExW
Supply Ability :
10000pcs/week
Description

Eutectic Multi Chip White High Power LED Module 150W with Small LES 4.3 x 4.3 mm

Eutectic Multichip White LED Modules 90W 150W 250W with Small LES

Features & Advangates:

1, Small LES, 5W/mm²

2, Eutectic packages, Thermoelectric management, fast heat-conductivity

3, Special Parallel and Serial connection, Low If, higher Vf

4, Average efficiency upto 40lm/W @Tj=85℃ with full power

5, Excellent effect of color-mixing for 3Colors or 4Colors LEDs light source

6, Quick on/off; Anti-poisonous or toxic, comply with RoHS

Specifications:

Code Color

Vf

(V)

If

(A)

CCT(K)

Φv

(lm)

 Power

LES

(mm)
TX-3636W90FC120
-NUVENG-A01		 White 12-16 6.5 6500-8500 3600-4000 90 4.3 x 4.3
TX-3636W150FC120
-NUVENG-A01		 White 12-16 11 6500-8500 6000-6500 150 6.5 x 6.5

Applications:

Entertainment lighting

Architectural lighting

Medical illumination

Event lighting

Stage lighting Projection
