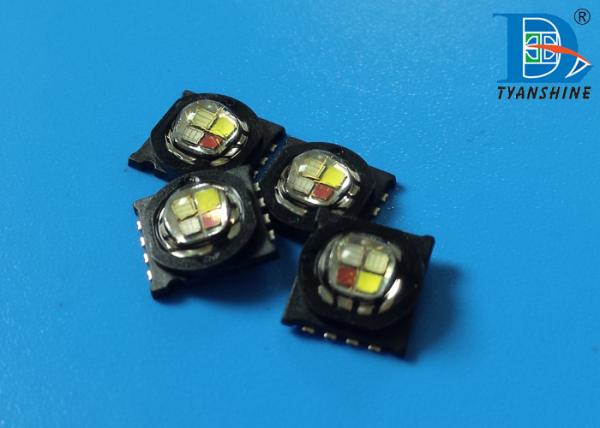

15W High Power RGB White LED Diode SMD Quad 4-in-1 Multicolor 810lm
15W High Power RGB White LED Diode SMD Quad 4-in-1 Multicolor 810lm
15W High Power RGB White LED Diode SMD Quad 4-in-1 Multicolor 810lm
15W High Power RGB White LED Diode SMD Quad 4-in-1 Multicolor 810lm
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-RBWG15B120-001
Certification :
ISO9001:2008 SGS RoHS
Place of Origin :
CN
MOQ :
500pcs
Price :
USD
Supply Ability :
100K / month
Packaging Details :
In plastic Tube or Reel
Color-Mixing :
4in1 RGBW
Wattage :
15W
Current :
1000mA per LED die
Voltage :
3.2-3.5V
Dimension :
9 x 9mm
LES :
Φ5.8 mm
Description

15W High Power RGB White LED Diode SMD Quad 4-in-1 Multicolor 810lm

Features of the RGBW multicolor LEDs:

  1. Small and bright SMD package LEDs, Patent LEDs
  2. Compatible with Optical LENs of Cree XLamp XML Color,MCE LEDs, Osram Ostar LEDs
  3. Compact LED light source with small LES, RGBW chips evenly distributed in 2.4x2.4mm space
  4. Same light-emitting shape for the 4 color LED die, high orientability of light, excellent color-mixing effect
  5. Packaged with high thermal conductivity materials, low thermal resistance

Specifications:

Code Color Vf (V) If (mA) λd(nm)
CCT(K)		 φv(lm) Power LES(mm)
TX-RBWG15B120-001 Red 2.5-3.2 1000 618-628 170-205 15W Φ5.8
Green 3.2-3.8 1000 520-530 200-240
Blue 3.2-3.8 1000 450-460 40-55
White 3.2-3.8 1000 6500-8500K 280-310

Package Dimensions:

15W High Power RGB White LED Diode SMD Quad 4-in-1 Multicolor 810lm

Typical Electrical / Optical Characteristics Curves:

(25℃ Ambient Temperature Unless Otherwise Noted)

15W High Power RGB White LED Diode SMD Quad 4-in-1 Multicolor 810lm

Applications:

  • Entertainment Lighting
  • Architectural illumination
  • Display & Projection

Soldering:

15W High Power RGB White LED Diode SMD Quad 4-in-1 Multicolor 810lm

Profile Feature Lead-Based
Solder		 Lead-Free Solder
Average Ramp-Up Rate (Tsmax to Tp) 3℃/second max. 3℃/second max.
Preheat: Temperature Min. (Tsmin.) 100℃ 150℃
Preheat: Temperature Max. (Tsmax.) 150℃ 200℃
Preheat: Time (Tsmin. to Tsmax.) 60-120 seconds 60-180 seconds
Time Maintained Above: Temperature (TL) 183℃ 217℃
Time Maintained Above: Time (TL) 60-150 seconds 60-150 seconds
Peak/Classification Temperature (TP) 215℃ 260℃
Time Within 5℃ of Actual Peak Temperature (TP) 10-30 seconds 20-40 seconds
Ramp-Down Rate Max. 6℃/seconds Max. 6℃/seconds
Time 25℃ to Peak Temperature Max. 6 minutes Max. 8 minutes

Packageing:

In Plastic tube, 40pcs / tube

15W High Power RGB White LED Diode SMD Quad 4-in-1 Multicolor 810lm
