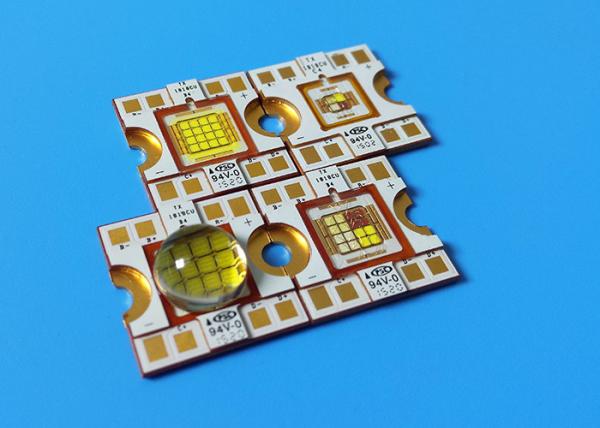

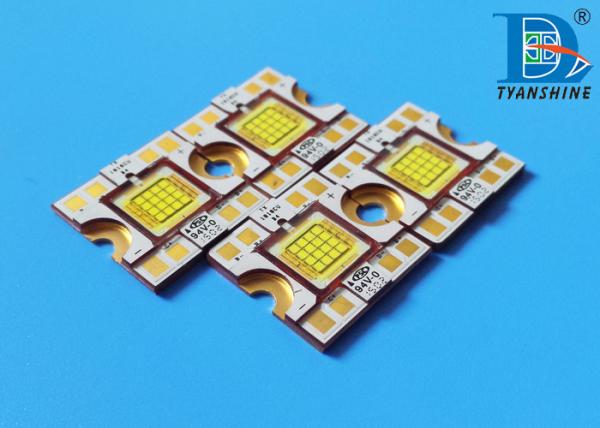

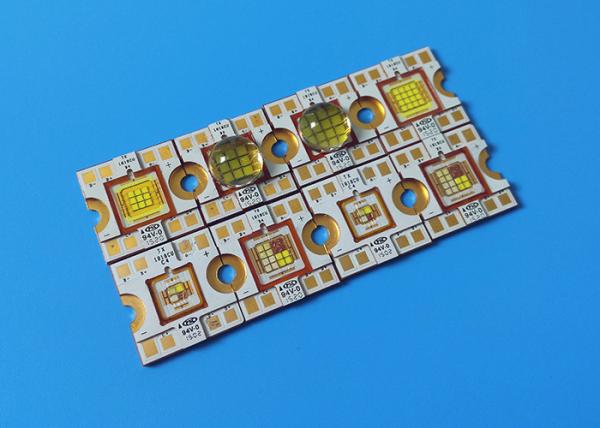

White RGB 30W / 60W Multichip LED , High Power LED Module
White RGB 30W / 60W Multichip LED , High Power LED Module
White RGB 30W / 60W Multichip LED , High Power LED Module
White RGB 30W / 60W Multichip LED , High Power LED Module
White RGB 30W / 60W Multichip LED , High Power LED Module
White RGB 30W / 60W Multichip LED , High Power LED Module
White RGB 30W / 60W Multichip LED , High Power LED Module
White RGB 30W / 60W Multichip LED , High Power LED Module
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-1818RGBW60FC120-CUHCNG-01
Certification :
ISO9001:2008 ROHS SGS
Place of Origin :
CN
MOQ :
10
Packaging Details :
In Tray
Color :
White and RGBW
Forward Current :
1000mA
Forward Voltage :
12V - 16V
LES :
Φ11mm
Dimension :
18 * 18mm
Description

White RGB 30W / 60W Multichip LED , High Power LED Module

Features for 60W RGBW LEDs:

1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam

2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance

3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;

4, Average efficiency upto 40lm/W @Tj=85℃ with full power;

5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately,

Specifications:

60W RGBW LED Module

Code Color

Vf

(V)

If

(mA)

RθJ-C

Φv

(lm)

 Power

LES

(mm)
TX-1818RGBW60FC120-CUHCNG-01 RGBW 12-16V 1000 0.75 K/W 1700-2000 60W

9 x 9

Φ11mm

Characteristics at If=1800mA (Ta=85°C)

Parameter Symbol Emitting
Color		 Values
Min. Typ. Max.
Luminous Flux φv R 400lm 460lm -
G 520lm 580lm -
B 120lm 150lm -
W 700lm 800lm -
Dominant Wavelength λd R 615nm 620nm 625nm
G 515nm 520nm 525nm
B 452nm 456nm 460nm
Colour Temperature CCT W 6500K 7500K 8500K
Forward Voltage Vf R 8V 10V 12V
G 12V 14V 16V
B 12V 14V 16V
W 12V 14V 16V

30W RGBW LED Module:

Code Color

Vf

(V)

If

(mA)

RθJ-C

Φv

(lm)

 Power

LES

(mm)
TX-1818RGBW30FC120-CUHCNG-01 RGBW 2-4V 1800 0.75 K/W 780-8700 30

9 x 9

Φ11mm

Characteristics at If=1000mA (Ta=85°C)

Parameter Symbol Emitting
Color		 Values
Min. Typ. Max.
Luminous Flux φv R 190lm 220lm -
G 210lm 230lm -
B 55lm 65lm -
W 330lm 360lm -
Dominant Wavelength λd R 615nm 620nm 625nm
G 515nm 520nm 525nm
B 452nm 456nm 460nm
Colour Temperature CCT W 6500K 7500K 8500K
Forward Voltage Vf R 2.4V - 3.2V
G 3.2V - 4.0V
B 3.2V - 4.0V
W 3.2V - 16V

Applications:

Entertainment lighting, Projection lights

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber optic lighting
