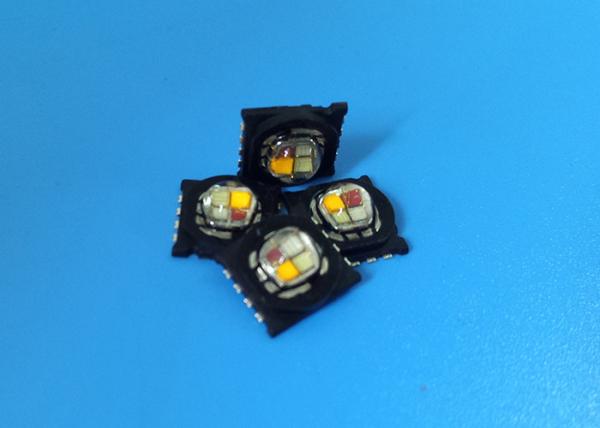

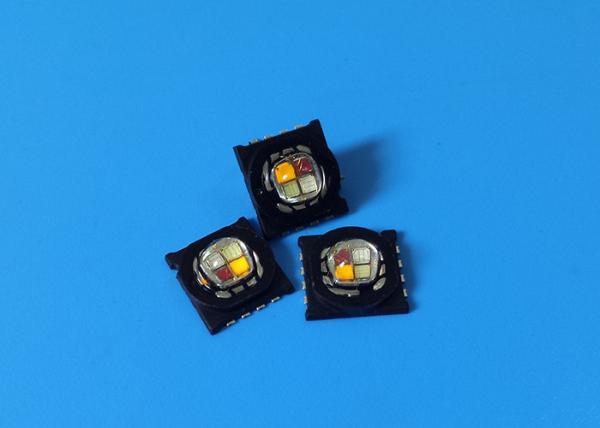

750MA Led 4 In 1 RGB Amber 15 Watt High Power Led Diodes With Multi - Chip
750MA Led 4 In 1 RGB Amber 15 Watt High Power Led Diodes With Multi - Chip
750MA Led 4 In 1 RGB Amber 15 Watt High Power Led Diodes With Multi - Chip
750MA Led 4 In 1 RGB Amber 15 Watt High Power Led Diodes With Multi - Chip
750MA Led 4 In 1 RGB Amber 15 Watt High Power Led Diodes With Multi - Chip
750MA Led 4 In 1 RGB Amber 15 Watt High Power Led Diodes With Multi - Chip
750MA Led 4 In 1 RGB Amber 15 Watt High Power Led Diodes With Multi - Chip
750MA Led 4 In 1 RGB Amber 15 Watt High Power Led Diodes With Multi - Chip
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-RBAG15B120-001
Certification :
ISO9001:2008 SGS RoHS
Place of Origin :
CN
MOQ :
500pcs
Price :
USD
Supply Ability :
100K / month
Packaging Details :
In plastic Tube or Reel
Color :
RGB-PCAmber
Power :
15Watt
Forwarder current :
750mA per chip
Forwarder voltage :
3.2-3.5V
LES :
Φ5.8 mm
Viewing angle :
120°
CRI :
90Ra
Package size :
9x9mm
Description

750MA Led 4 In 1 RGB Amber 15 Watt High Power Led Diodes With Multi - Chip

Features of the RGBW / RGBA LEDs:

  1. Small and bright SMD package LEDs, Patent LEDs
  2. Compact LED light source with small LES, RGBW chips evenly distributed in 2.4x2.4mm space
  3. Same light-emitting shape for the 4 color LED die, high orientability of light, excellent color-mixing effect
  4. Packaged with high thermal conductivity materials, low thermal resistance

Specifications:

RGB_PCAmber Color Vf (V) If (mA) λd(nm)
CCT(K)		 φv(lm) Power LES(mm)
TX-RBAG151B120-001 Red 2.6-2.9 750 620-625 120-140 15W Φ5.8
Green 3.0-3.6 750 525-530 175-200
Blue 3.0-3.6 750 454-458 38-48
PCAmber 3.0-3.6 750 1800-1900K 135-155

750MA Led 4 In 1 RGB Amber 15 Watt High Power Led Diodes With Multi - Chip

Applications:

  • Entertainment Lighting
  • Architectural illumination
  • Display & Projection
