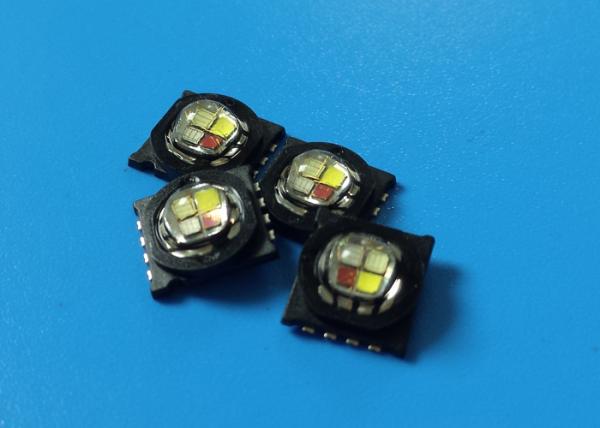

4in1 High Power LED Diode , 1000mA 800lm RGBW Multi-chip LEDs
4in1 High Power LED Diode , 1000mA 800lm RGBW Multi-chip LEDs
4in1 High Power LED Diode , 1000mA 800lm RGBW Multi-chip LEDs
4in1 High Power LED Diode , 1000mA 800lm RGBW Multi-chip LEDs
4in1 High Power LED Diode , 1000mA 800lm RGBW Multi-chip LEDs
4in1 High Power LED Diode , 1000mA 800lm RGBW Multi-chip LEDs
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-RBWG15B120-001
Certification :
ISO9001:2008 SGS RoHS
Place of Origin :
CN
MOQ :
500pcs
Price :
USD
Supply Ability :
100K / month
Packaging Details :
In plastic Tube or Reel
Color :
RGBW 4in1
Power :
15Watt
If :
1A per LED die
Vf :
3.2-3.5V
Lumen output :
690lm - 800lm
Viewing Angle :
120°
Description

4in1 High Power LED Diode , 1000mA 800lm RGBW Multi-chip LEDs

Multi-chip LEDs RGBW Features:

  1. Small and bright package LEDs, fully-holded patent,
  2. Compatible with Optical LENs of Cree XLamp XML Color,MCE LEDs, Osram Ostar LEDs
  3. Compact LED light source with small LES, RGBW chips evenly distributed in 2.4x2.4mm space
  4. Same light-emitting shape for the 4 color LED die, high orientability of light, excellent color-mixing effect
  5. Packaged with high thermal conductivity materials, low thermal resistance

Specifications:

Code Color Vf (V) If (mA) λd(nm)
CCT(K)		 φv(lm) Power LES(mm)
TX-RBWG15B120-001 Red 2.5-3.2 1000 618-628 170-205 15W Φ5.8
Green 3.2-3.8 1000 520-530 200-240
Blue 3.2-3.8 1000 450-460 40-55
White 3.2-3.8 1000 6500-8500K 280-310

4in1 High Power LED Diode , 1000mA 800lm RGBW Multi-chip LEDs

Applications:

  • Entertainment Lighting
  • Architectural illumination
  • Display & Projection

4in1 High Power LED Diode , 1000mA 800lm RGBW Multi-chip LEDs
