Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE
Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE
Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE
Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE
Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE
Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE
Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE
Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-RBWG15B120-001
Certification :
ISO9001:2008 SGS RoHS
Place of Origin :
CN
MOQ :
500pcs
Price :
USD
Supply Ability :
100K / month
Packaging Details :

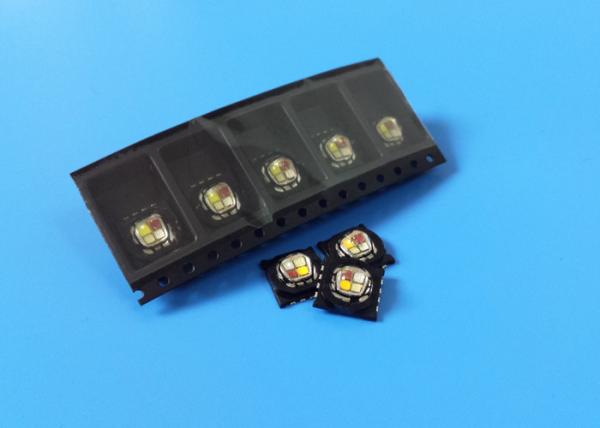

In plastic Tube or Reel
Color :
RGB-Amber
Power :
15Watt
Current :
1000mA
Voltage :
DC 3.2-3.5V
Viewing Angle :
120°
LES :
Φ5.8 mm
Dimension :
9 * 9mm
Description

Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE

Features of the RGBW / RGBA LEDs:

  1. Small and bright SMD package LEDs, Patent LEDs
  2. Compatible with Optical LENs of Cree XLamp XML Color,MCE LEDs, Osram Ostar LEDs
  3. Compact LED light source with small LES, RGBW chips evenly distributed in 2.4x2.4mm space
  4. Same light-emitting shape for the 4 color LED die, high orientability of light, excellent color-mixing effect
  5. Packaged with high thermal conductivity materials, low thermal resistance

Specifications:

RGBW Color Vf (V) If (mA) λd(nm)
CCT(K)		 φv(lm) Power LES(mm)
TX-RBWG15B120-001 Red 2.4-3.2 1000 618-628 170-205 15W Φ5.8
Green 3.2-3.8 1000 520-530 200-240
Blue 3.2-3.8 1000 450-460 40-55
White 3.2-3.8 1000 6500-8500K 280-310

RGBA Color Vf (V) If (mA) λd(nm)
CCT(K)		 φv(lm) Power LES(mm)
TX-RBYG151B180-001 Red 2.4-3.2 1000 618-628 100-120 15W Φ5.8
Green 3.2-3.8 1000 520-530 145-170
Blue 3.2-3.8 1000 450-460 30-40
Amber 2.4-3.2 1000 588-595 110-130

Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE

Applications:

  • Entertainment Lighting
  • Architectural illumination
  • Display & Projection

Multi-colored High Power LED Diode Compact RGB Amber 15Watt MCE
