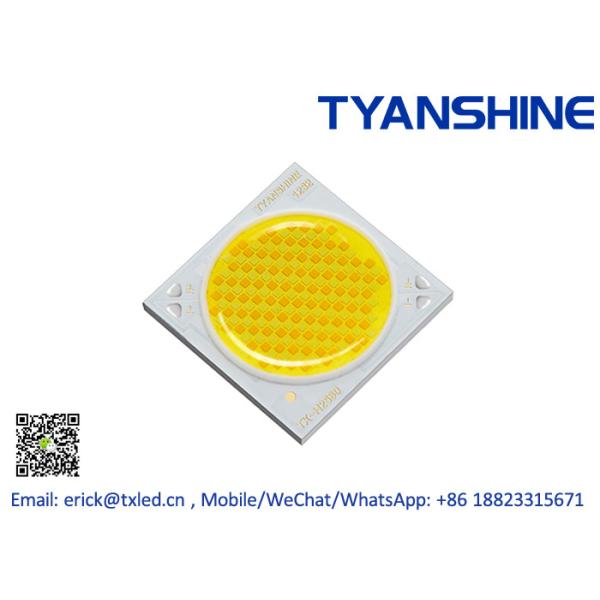

100W COB LED Bi-color 2700K-7000K Tuneable White 95CRI LED COB MODULE
100W COB LED Bi-color 2700K-7000K Tuneable White 95CRI LED COB MODULE
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-H2560SW21C-2770V36-03H95
Certification :
RoHS, LM80 (Pending)
Place of Origin :
CN
MOQ :
100
Packaging Details :
In plastic tray
Voltage :
33-37V
Current :
2800mA
Power :
100W *2
CCT :
2700K-7000K
Efficiency :
105lm/W
CRI :
95Ra
COB Base :
CU
LES :
Φ21mm
Description

Studio Light COB LED 100Watt 2700K-7000K Tunable White 95CRI



Features:

  • Cross-distribution of LED chips in a circular LES to perform a better color-mixing through optics reflectors or Lenses, anti polarized light and anti color cast;

  • Adopting Eutectic bonding packaging technique with flip-chips, conductivity reach 120-160 W/m-k to enable a longer lifespan;

  • Variable CCT-tunning from 2700K-7000K, dimming from 0%-100%

  • Compatible with the housing / reflectors and Lenses / holders of the CREE XLamp CXA (1304-1310)(1507-1512)(1820-1830)(2530-2540)

Advantages VS Disadvantages:

TYANSHINE Tuneable White COB Other Brands' Tuneable COB
100W COB LED Bi-color 2700K-7000K Tuneable White 95CRI LED COB MODULE 100W COB LED Bi-color 2700K-7000K Tuneable White 95CRI LED COB MODULE

1, Cross-distribution for the White and WarmWhite LED Dies;

2, Better performance of Color-mixing, without light strips or shadows;

3, Easy to adapt Lenses or reflectors

1, Strip arrays or Circular distribution of LED Dies;

2, Ununiformity of color-mixing, will be projected light strips or shadows;

3, Strictly requirements for Lenses/Relfectors


Specification:

Item Code Color IF
(mA)		 VF
(V)

Power

(W)

 CCT (K) CRI
(Ra)		 Lumen
(lm)		 LES
(mm)
TX-H2560SW21C-2770V36-03H95 W 2800 33-37 100 7000 95 6300 Φ21
S 2800 33-33 100 2700 4450


(W - White, S - WarmWhite) , Ta = 25℃


Housing / Lens / Holder Competitable with:

100W COB LED Bi-color 2700K-7000K Tuneable White 95CRI LED COB MODULE 100W COB LED Bi-color 2700K-7000K Tuneable White 95CRI LED COB MODULE 100W COB LED Bi-color 2700K-7000K Tuneable White 95CRI LED COB MODULE 100W COB LED Bi-color 2700K-7000K Tuneable White 95CRI LED COB MODULE
TX-1308 XLamp CXA 1304-1310 CLL022 -
TX-1512 XLamp CXA 1507-1512 - -
TX-1824 XLamp CXA 1820-1830 CLL032

Tiger Zenigata
GW6TGCBG4FD
TX-2548 XLamp CXA 2530-2540 - -


Drawings:

100W COB LED Bi-color 2700K-7000K Tuneable White 95CRI LED COB MODULE


Applications:

Commercial lighting / Residential lighting / Smart lighting
spot lights,down lights, ceiling lights,bulb lights or tracking lights ...

Photography lighting Fresnels lights

100W COB LED Bi-color 2700K-7000K Tuneable White 95CRI LED COB MODULE
