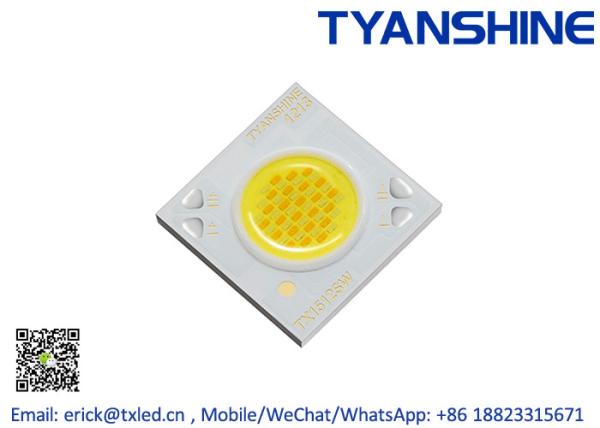

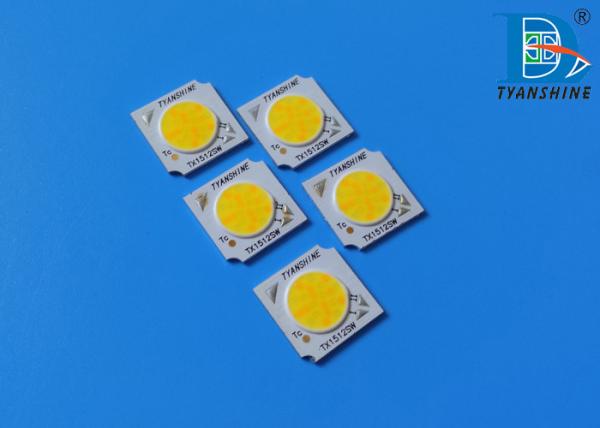

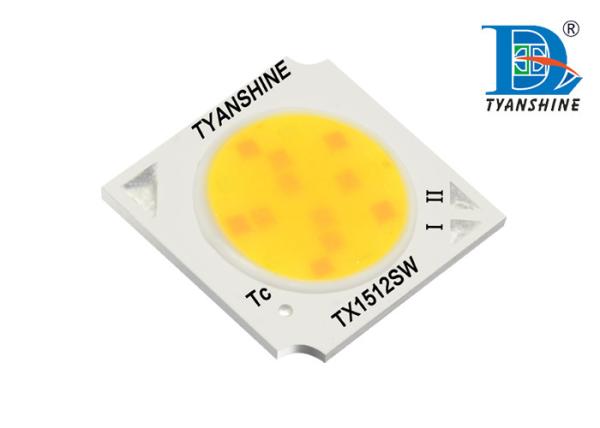

36V Bi-color COB LED CRI90 , 12W Tunable White COB LED 2800K-6500K LM-80
36V Bi-color COB LED CRI90 , 12W Tunable White COB LED 2800K-6500K LM-80
36V Bi-color COB LED CRI90 , 12W Tunable White COB LED 2800K-6500K LM-80
36V Bi-color COB LED CRI90 , 12W Tunable White COB LED 2800K-6500K LM-80
36V Bi-color COB LED CRI90 , 12W Tunable White COB LED 2800K-6500K LM-80
36V Bi-color COB LED CRI90 , 12W Tunable White COB LED 2800K-6500K LM-80
36V Bi-color COB LED CRI90 , 12W Tunable White COB LED 2800K-6500K LM-80
36V Bi-color COB LED CRI90 , 12W Tunable White COB LED 2800K-6500K LM-80
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-1512SW11A-2860V36-10H90
Certification :
RoHS, LM80
Place of Origin :
CN
MOQ :
100
Packaging Details :
In plastic tray
Current :
400mA
Input Voltage :
36V
Power :
12 Watt
CCT :
2800K-6500K
Efficiency :
110lm/W
CRI :
80Ra or 90Ra
Dimension :
15.85*15.85mm
LES :
Φ11mm
Description

36V Bi-color COB LED CRI90 , 12W Tunable White COB LED 2800K-6500K LM-80

Features:

■ Double phosphor coating technology, excellent color-mixing ;

■ Mac-Adam Ellipse 3 Step binning, high color consistency ;

■ High light quality, anti-glare ;

■ Fast thermal conductivity substrate, lower resistance ;

■ Compatible COB PKG size, easy to adapt accessories .

Specification:

36V Bi-color COB LED CRI90 , 12W Tunable White COB LED 2800K-6500K LM-80

Advantages vs Disadvantages:

TYANSHINE Tuneable White COB Other Brands' Tuneable COB
36V Bi-color COB LED CRI90 , 12W Tunable White COB LED 2800K-6500K LM-80 36V Bi-color COB LED CRI90 , 12W Tunable White COB LED 2800K-6500K LM-80

1, Cross-distribution for the White and WarmWhite LED Dies;

2, Better performance of Color-mixing, without light strips or shadows;

3, Easy to adapt Lenses or reflectors

1, Strip arrays or Circular distribution of LED Dies;

2, Ununiformity of color-mixing, will be projected light strips or shadows;

3, Strictly requirements for Lenses/Relfectors

Applications:

Commercial lighting:

spot lights,down lights, ceiling lights,bulb lights or tracking lights ...

Hotels and Restaurants

Fashion stores, Retail stores, Shpping malls

Residential lighting

Smart lighting

TV / Film / Studio lighting

Fresnels lights
