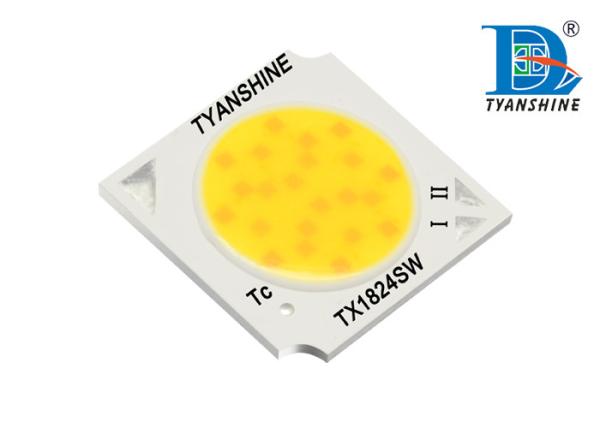

LES 14mm 24W Cob Led 800mA 4800lm Variable White Bi-color COB LED Arrays
LES 14mm 24W Cob Led 800mA 4800lm Variable White Bi-color COB LED Arrays
LES 14mm 24W Cob Led 800mA 4800lm Variable White Bi-color COB LED Arrays
LES 14mm 24W Cob Led 800mA 4800lm Variable White Bi-color COB LED Arrays
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-1824SW14A-2765V33-01H80
Certification :
RoHS, LM80 (Pending)
Place of Origin :
CN
MOQ :
100
Packaging Details :
In plastic tray
Input Voltage :
33V
Input Current :
800mA
Power :
24W
CCT :
2700K-6500K
Lumen :
4800lm
CRI :
80Ra / 95Ra
Dimension :
17.85*17.85mm
LES :
Diameter 14mm
Description

LES 14mm 24W Cob Led 800mA 4800lm Variable White Bi-color COB LED Arrays​

Specification:

Item Code Color IF
(mA)		 VF
(V)

Power

(W)

 CCT (K) CRI
(Ra)		 Lumen
(lm)		 LES
(mm)
TX-1824SW14A-2765V33-01H80 W 800 30-36 24 6000-6700 80 2600 Φ14
S 800 30-36 24 2700-2780 2240

(W - White, S - WarmWhite) , Ta = 25℃

LES 14mm 24W Cob Led 800mA 4800lm Variable White Bi-color COB LED Arrays

Features:

  • Cross-distribution of LED chips in a circular LES to perform a better color-mixing through optics reflectors or Lenses, anti polarized light and anti color cast;
  • Adopting Eutectic bonding packaging technique with flip-chips, conductivity reach 120-160 W/m-k to enable a longer lifespan;
  • Variable CCT-tunning from 2700K-6500K, dimming from 0%-100%
  • Compatible with the housing / reflectors and Lenses / holders of the CREE Arrays (1304-1310)(1507-1512)(1820-1830)(2530-2540)

Applications:

Commercial lighting / Residential lighting / Smart lighting

spot lights,down lights, ceiling lights,bulb lights or tracking lights ...

Photography lighting Fresnels lights

LES 14mm 24W Cob Led 800mA 4800lm Variable White Bi-color COB LED Arrays
