Specifications
Brand Name :
CYCJET
Model Number :
CLW1000
Certification :
CE, SGS, FDA
Place of Origin :
Shanghai, China
MOQ :
1 Set
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 sets per month
Delivery Time :
10-12 working days
Packaging Details :
Wooden Case, 147x66x67cm, 135KG
Name :
Industrial Portable Laser Welding Machine 1000W Fiber Laser Welder
Capacity :
100W(Can Customized)
Model :
CLW100
Pulse Width :
0.2-50ms
Fiber Output No :
Single
Working Mode :
Continuous/Pulse
Operation :
Touch Screen
Language :
English
Description

Industrial Portable Laser Welding Machine 1000W Fiber Laser Welder

Description:

Industrial Portable 1000W Laser Welding Machine equipped with a high-speed electronic filter protection device to protect the operator's eyes from laser damage, relieve operator eye fatigue, and improve work efficiency. A high-definition CCD monitoring system can be installed in the laser welding machine. The laser welding machine using micro industrial computer, including all functions of ordinary computer, its stability and anti-interference ability are far superior to products in the same industry. Fast speed, large depth and small deformation. Laser welding machine can be welded at room temperature or under special conditions, and the welding equipment is simple. For example, when a laser passes through an electromagnetic field, the beam will not be deflected; light can weld in vacuum, air, and certain gas environments, and can weld through glass or materials that are transparent to the beam. Refractory materials such as titanium, quartz, etc can weld by the laser welding machine with good effect.

Main Characters:

  1. The welding seam is narrow, the welding seam cooling speed is fast, the weld metal properties change little, and the welding seam strength is high.
  2. Compared with traditional welding, it is easier to use, no need professional welding experience is required.
  3. Tiny laser spot can be precisely positioned and easily automated.
  4. Suitable dissimilar metal welding.
  5. Excellent for spot welding, butt welding, overlap sealing welding.

Technical Parameters:

1 Frame Material ALUM & Steel.
2 Laser Device Fiber Laser
3 Power ≥1000W
4 Max. laser pulse energy 15J
5 Pulse Width 0.2-50ms
6 Fiber Output No Single
7 Working Mode Continuous/Pulse
8 Laser Wavelength 1080nm
9 Welding Thickness Carbon Steel (C235) 0.5-3.8mm
10 Welding Thickness Stainless Steel (304) 0.5-3.8mm
11 Power Supply 220V/50-60HZ
12 Power Consumption 5600W

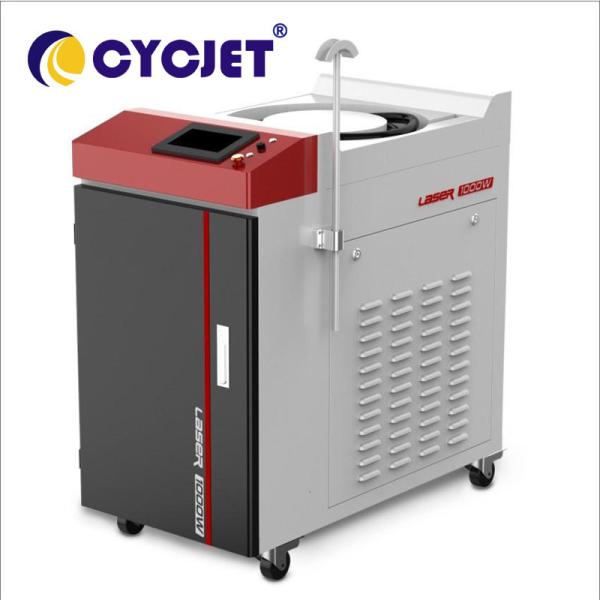

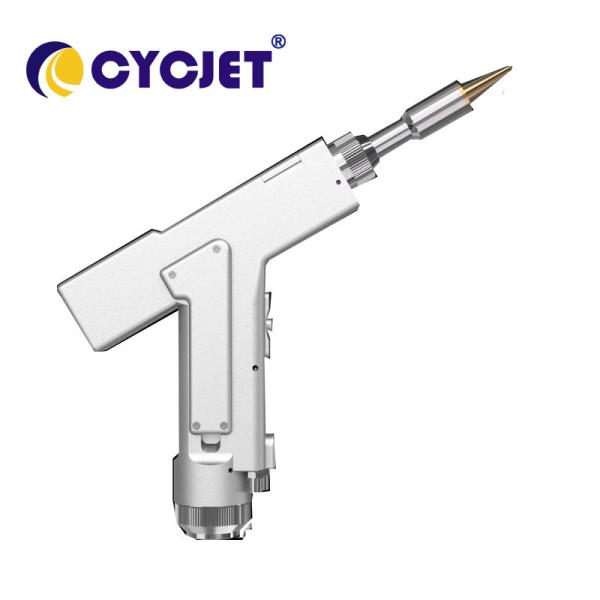

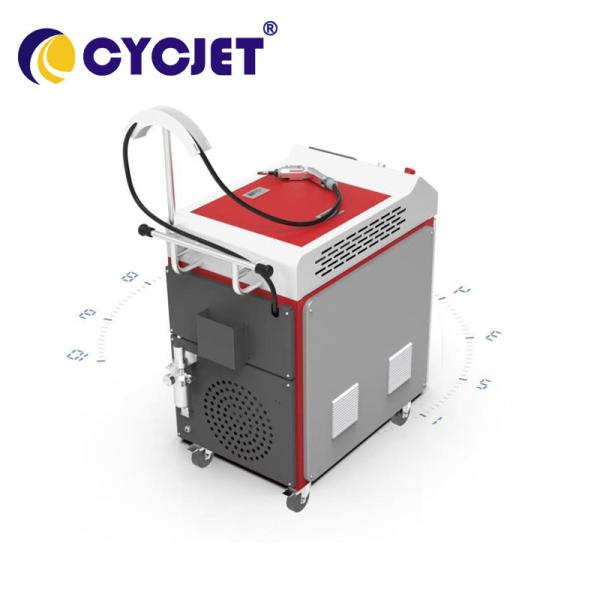

Products Picture:

Industrial Portable Laser Welding Machine 1000w Fiber Laser Welder

Application:

Industrial Portable Laser Welding Machine 1000w Fiber Laser Welder

Industrial Portable Laser Welding Machine 1000w Fiber Laser Welder

Company Show:

Industrial Portable Laser Welding Machine 1000w Fiber Laser Welder



FAQ:

Q1 :How long is the warranty time?
The warranty is one year,if there is problems with the machine, we can provide online technical guidance or you send it back,and we repair it.

Q2 :What payment method can I use?
We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose one to pay for it.


Q3 :Can I pay cash on delivery?
No,you need to pay it first ,then I will arrange the shipment for you.

Q4 :How long can I receive the goods?
When we ship it by express,the shipping time is about 12 working days.When ship it by sea,the shipping time is about 25 working days

Q5:Why should you I from you not from other suppliers?
We are a professional handheld inkjet printer and portable marking solution provider, supplied CYCJET series handheld inkjet printer, Portable Industrial inkjet printer, Desktop inkjet printer, laser marking machine to different country in the world!
