Lifelong Maintenance Drone Wifi Transmitter Support 5-10W Adjustable For Fire Fighting
Lifelong Maintenance Drone Wifi Transmitter Support 5-10W Adjustable For Fire Fighting
Specifications
Brand Name :
HOWMELLY
Model Number :
HMMAT05
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
1set
Price :
USD1-5000 per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000sets per month
Delivery Time :
10-15days
Packaging Details :
1 whole set strictly packed in papar box
Modulation :
COFDM 2K QPSK/TDS-OFDM
Output power :
5-8W
Work frequency :
300MHz~900MHz (Adjustable)
Encryption :
AES/ABS(128bit,256bit)
Channel bandwidth :
2/4/6/8MHz (Adjustable)
Video Input :
HDMI,SDI,AV
Size :
215mm×120mm×70mm(L × W ×H)
Weight :
2.0kg (include battery)
Description

COFDM HD Video Transmitter 50KM 100KM Long Range Wireless Video Transmitter

Product Description:

HMMAT05 is excellent for drone UAV wireless video transmission over 100-150km long range. It has adopted the newest COFDM modulation technique and can stably transmit HDMI video,one way stereo audio and one way transparent serial data under fast moving condition. This model also support AES128bits/265bits encryption ensures clean security receiving that is widely applied in Army, Fire fighting, helicopter, Multi-media etc.

Product Sell Point:

1. Support 5-10W adjustable by user, can transmit max 100-150km from air to ground
2. Strong anti-jamming and diffraction ability

3. Can stable transmit under NLOS high speed moving condition

4. AES128bits/265bits encryption ensures security

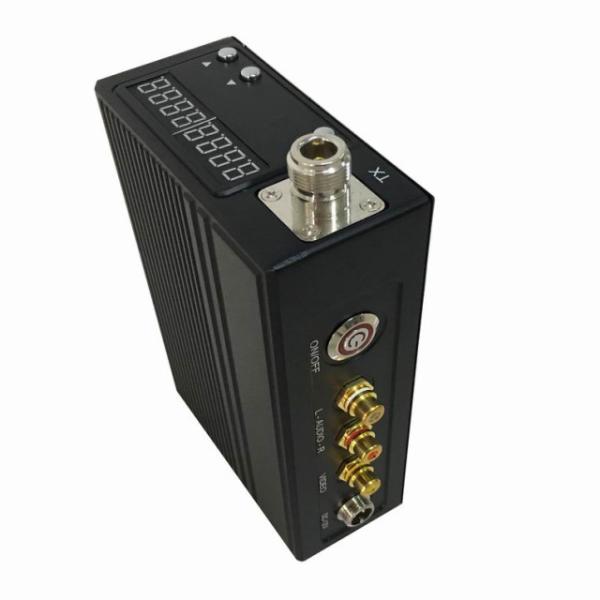

Transmitter Picture:

Lifelong Maintenance Drone Wifi Transmitter Support 5-10W Adjustable For Fire Fighting

Transmitter HMMAT01 Specification:

General Part:
Work frequency: 300MHz~5.8GHz (Adjustable)
Output power: 5W~10W (Adjustable)
Modulation: COFDM 2K QPSK/TDS-OFDM
Channel bandwidth: 2/4/6/8MHz (Adjustable)
Encryption: AES/ABS(128bit)
Code stream 0.8Mbps~10Mbp
End to end delay: <40ms
Error rate: ≤10-6
FEC: Viterbi (1/2,2/3,3/4)
Guard interval: 1/32,1/16,1/8,1/4
Encryption AES256
Power Supply: DC10V~16V/2.0A
Transmit distance: Urban area:3-5 kilometer, More than 100-150km from air to ground
Audio&Video Part:
AV data format: H.264,MPEG-2,MPEG-4@ML 4:2:0
Video input: HDMI,HD-SDi,AV
Audio input: Left and right channel
Video compression Adopt H.265,H.264,MPEG-2,MPEG-4
Resolution: 1080P(19208*1080)compatible with 720× 576@ transmit rate is 30fps.
Audio&Video: One way video,two way audio
Two way voice: Two way voice is optional
Others:
Antenna: Omnidirectional whip antenna
Battery: work 4 hours (Continuously)
Weight: 2.0kg (include battery)
Size: 215mm×120mm×70mm(L × W ×H)
Work Temperature: Temperature:-30~70℃ Relative humidity:90%
Reserve Temperature: Temperature: -40~80℃ Relative humidity:90%

Receiver HMRMR01 Specification:

General Part:
Work frequency: 300MHz~ 5.8GHz(Adjustable)
Frequency Spectrum: The frequency spectrum function is available
TALLY System: TALLY system(Optional)
Receive sensitivity: -106dBm
Power supply: AC 220V
Audio&Video:
Video output: HDMI,SDi,AV
Audio output: Two way
Video compression: H.265,H.264, MPEG-2@ ML 4:2:2 compatible with 4:2:0
Video rate: 25-30F/S
Resolution: 1920*1080 compatible with 720×620
Two way voice: Two way voice is optional
Others:
Weight: 2.0kg
Size: 1U,19inch crate (480mm×220mm×45mm(L × W ×H)
Interface:

One way SD-SDI interface(imbedded audio)

One way HD-SDI interface(Optional)

One way HDMI interface(Optional)

One way analog composite video signal

RJ45 interface(Optional)

Data interface can be provided
Parameter adjustable:

1.The signal quality,strength can be displayed on the LCD screen

2.The frequency,bandwidth,guard interval are adjustable
Work environment: Temperature:-30~70℃ Relative humidity:90%
Reserve environment: Temperature:-40~80℃ Relative humidity:90%

Our Service:

1. Lifelong maintainance

2. 24 hour technical support

3. Strong R&D capability; Customized project is welcomed

4. High quality product with competitive price,short delivery time and responsible after-sale service
