LOS HDMI SDI Mini COFDM Transmitter 20KM 30KM For Drone Mapping UAV
LOS HDMI SDI Mini COFDM Transmitter 20KM 30KM For Drone Mapping UAV
Specifications
Brand Name :
HOWMELLY
Model Number :
HMMIT04
Certification :
CE,FCC,ROHS
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000sets per month
Delivery Time :
5-15days
Packaging Details :
1 whole set strictly packed in paper carton or wooden case
Frequency :
300-900MHz
Bandwidth :
4,6,8MHz
Output Power :
1.5W
Modulation :
COFDM 2K QPSK/TDS-OFDM
Video Bit Rate :
10-15mbps
Weight :
107g
Video Input :
HDMI,AV
Transmit Distance :
NLOS 1KM;UAV 20- 30KM
Description

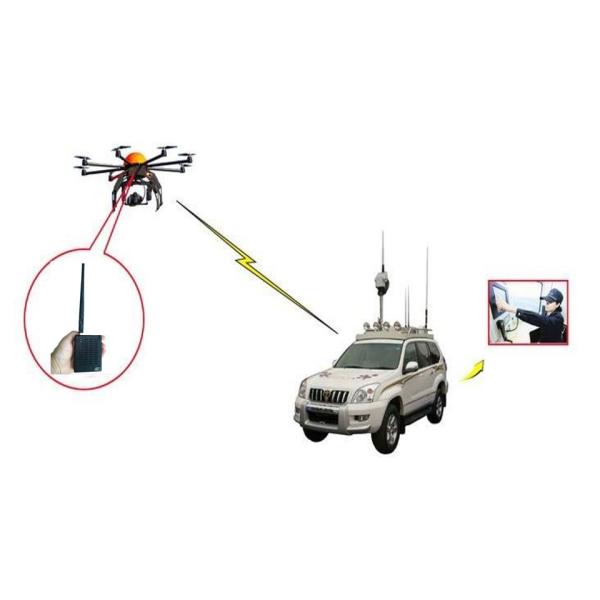

20KM 30KM LOS HDMI SDI Mini COFDM Transmitter for drone mapping UAV

Description:

HMMIT04 mini transmitter only weights 107g and it supports more than 20-30KM LOS transmision for UAV,drone.

This model has excellent heat dissipation function and high quality digital video processing&video

encoding and decoding. It can stably transmitter video&audio signal under the condition of high-speed mobile and multipath interference

Key Feature:

1. Small size and light weight(only 107g) for long range high definition video transmission

2. High resolution 1080P(1920*1080)compatible with 720× 576

3. Integrated PCB design for stable Audio Video transmission

4. Low consumption; Excellent anti-interference performance under complex electromagnetic condition

5. Can stably transmitter video&audio signal under the condition of high-speed mobile and multipath interference

6. High quality digital video processing&video encoding and decoding&HDMI picture

7. Can transmitter under a variety of complex weather conditions

Transmitter Picture:

LOS HDMI SDI Mini COFDM Transmitter 20KM 30KM For Drone Mapping UAV

Transmitter Technical Specification:

General Part:
Working Frequency: 300MHz～900MHz
Output Power: 0.1～1.5W
Modulation: COFDM 2K QPSK/TDS-OFDM
Channel Bandwidth 1.25/2/4/6/8MHz (Optional)
Code Stream 0.8Mbps～10Mbps
End-to-end Delay 40ms
Error Rate: ≤10-6
Encryption: Optional (AES/ABS(128bit))
FEC: Viterbi (1/2,2/3,3/4)
Guard Interval: 1/32,1/16,1/8,1/4
Power Supply DC12V
Transmit Distance About 30KM from air to ground for UAV
Audio&Video Part:
Audio Video Data Format: H.264,MPEG-2 ,MPEG-4@ML 4:2:2 compatible with ML 4:2:0
Video Compression: Conform to H.264,MPEG-2,MPEG-4
Video Input: HDMI and AV
Resolution: 1080P(1920*1080)compatible with 720× 576@ transmit rate is 30fps.
Others:
Antenna: Hand held antenna
Battery: Without
Weight: 120g(without battery)
Size: 8.5cm×6.5cm×2.2cm(L × W ×H)
Working Temperature: -30～70℃ Relative humidity :90％
Reserve Temperature: -40～80℃; Relative humidity: 90％

Receiver HMMIR01 Technical Parameter

General Part:
Work Frequency: 300MHz～900MHz,
Receive sensitivity: -106dBm
End to End Delay: 40ms
Power supply: DC12V
Audio&Video:
Video output: HDMI, AV
Video compression: H.264, MPEG-2 ,MPEG-4@ML 4:2:2 compatible with 4:2:0
Resolution: 1080P(1920*1080) compatible with 720×576
Record function: USB port
Others:
Space diversity: Available
Antenna: Standard omnidirectional antenna
Weight: TBD
Size: 120x90x25mm
Interface: HDMI and AV, USB port for record function
Work environment: Temperature:-30～70℃ Relative humidity:90％
Reserve environment: Temperature:-40～80℃ Relative humidity:90％

Our Service:

1. Lifelong maintainance

2. 24 hour technical support

3. Strong R&D capability; Customized project is welcomed

4. High quality product with competitive price,short delivery time and responsible after-sale service
