Tactical Cofdm Hd Video Transmitter , SDI Hdmi Wireless Transmitter And Receiver
Tactical Cofdm Hd Video Transmitter , SDI Hdmi Wireless Transmitter And Receiver
Specifications
Brand Name :
HOWMELLY
Model Number :
HMMAT01
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
1set
Price :
USD1-5000 per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000sets per month
Delivery Time :
10-15days
Packaging Details :
1 whole set strictly packed in papar box
Modulation :
COFDM 2K QPSK/TDS-OFDM
Output power :
5-10W
Work frequency :
300MHz~800MHz (Other frequecy can be customized)
Encryption :
AES256/ABS(128bit)
Channel bandwidth :
1.25/2/4/6/8MHz (Adjustable)
Video Input :
HDMI,SDI,ASI,AV
Size :
215mm×120mm×70mm(L × W ×H)
Weight :
2.0kg (include battery)
Description

Manpack Tactical Radio HD-SDI HDMI COFDM Wireless Video Transmitter

Product Description:

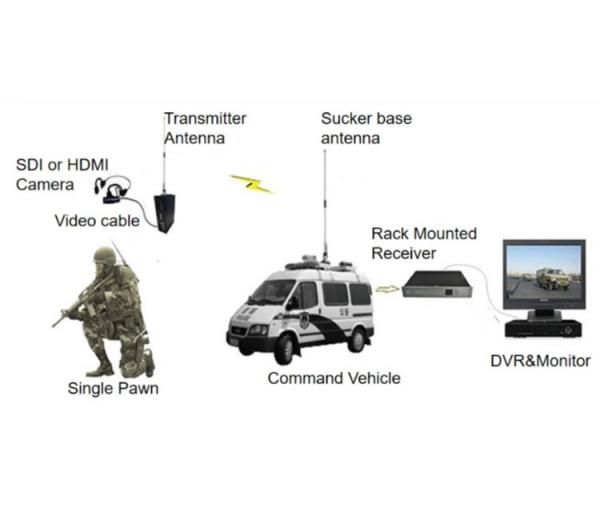

HMMAT01 is an manpack design COFDM transmitter system. It can be carried by single pawn to transmit video in environment where there is no WIFI. This model has the character of low power,small dimension and use

H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation

thus it provide real time video with short latency.

Product Sell Point:

1. TV Broadcast quality video transmission

2. Support Two way voice communication
3. Fast moving transmission in city with shelter
4. Carrier moving speed can reach up to 380 km/Hr
5. AES256 strict encrypted transmission
6. Applied to all kinds of Unmanned aircraft depend on small size ,light weight ,low power consumption
7. Frequency and transmission power can be customized

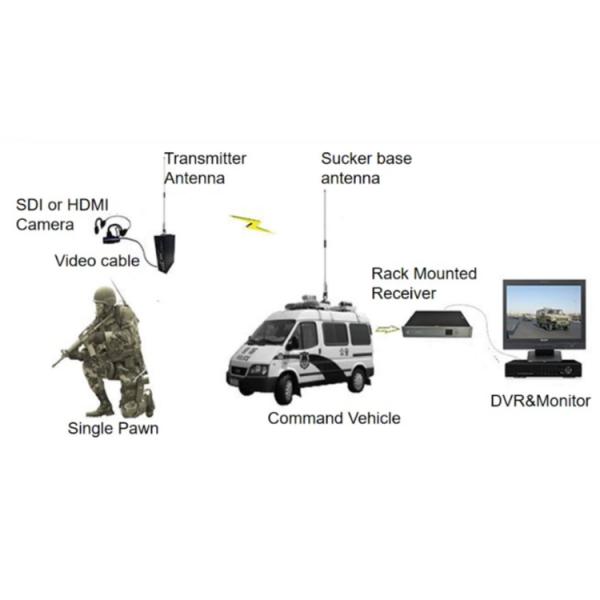

Transmitter Picture:

Tactical Cofdm Hd Video Transmitter , SDI Hdmi Wireless Transmitter And Receiver

Transmitter HMMAT01 Specification:

General Part:
Work frequency: 300MHz~800MHz(Others can be customized)
Output power: 5-8W (Adjustable)
Modulation: COFDM 2K QPSK/TDS-OFDM
Channel bandwidth: 6/7/8MHz (Adjustable)
Encryption:

AES-256, ISS,BISS
Code stream 0.8Mbps~10Mbp
End to end delay: <150ms
Error rate: ≤10-6
FEC: Viterbi (1/2,2/3,3/4)
Guard interval: 1/32,1/16,1/8,1/4
Power Supply: DC10V~16V/2.0A
Transmit distance: 5W (37dB)More than 100km LOS from UAV to ground, 1-3km NLOS on ground
Audio&Video Part:
AV data format: H.264,MPEG-2,MPEG-4@ML 4:2:0
Video input: HDMI,SDI,AV
Audio input: Left and right channel
Video compression Adopt H.265,H.264,MPEG-2,MPEG-4
Resolution: 1080P(19208*1080)compatible with 720× 576@ transmit rate is 30fps.
Two way voice: Two way voice is optional
Others:
Antenna: Omnidirectional handheld antenna
Battery: work 4 hours (Continuously)
Weight: 2.0kg (include battery)
Size: 215mm×120mm×70mm(L × W ×H)
Work Temperature: Temperature:-30~70℃ Relative humidity:90%
Reserve Temperature: Temperature: -40~80℃ Relative humidity:90%

Receiver HMRMR01 Specification:

General Part:
Work frequency: 300MHz-800MHz
Receive sensitivity: -106dB
End to End Delay: <100ms
Power supply: AC 220V
Audio&Video:
Video output: HDMI,RJ45, HD/SD-SDI
Video compression: H.264,MPEG-4 ,MPEG-2@ ML 4:2:2 compatible with 4:2:0
Resolution: 1080P(1920*1080) compatible with 720×576
Others:
Reverse Control RS232,RS485,TTL
Weight: 2.0kg
Size: 23×16.5×4.5cm(L × W ×H)
Interface: One way HDMI or HD-SDI
Antenna Yaggi directional antenna and 2.8～4.8meter omnidirectional FRP antenna
Work environment: Temperature:-30～70℃ Relative humidity:90％
Reserve environment: Temperature:-40～80℃ Relative humidity:90％

Our Service:

1. Lifelong maintainance

2. 24 hour technical support

3. Strong R&D capability; Customized project is welcomed

4. High quality product with competitive price,short delivery time and responsible after-sale service
