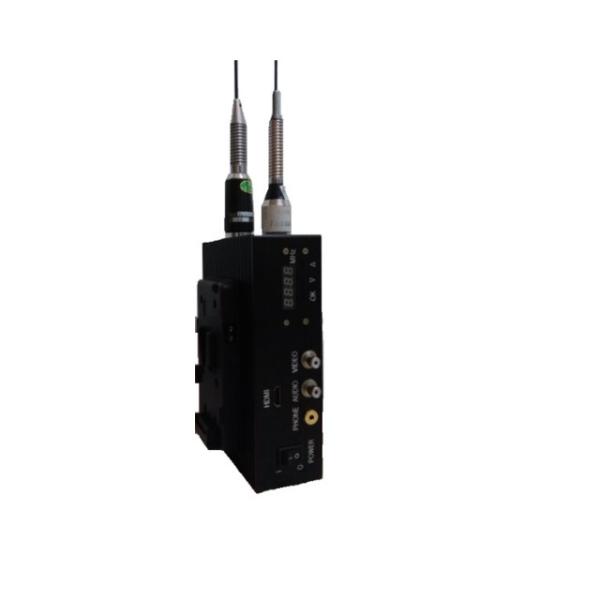

COFDM CCTV Wireless Fiber Optic Transmitter And Receiver Mobile Live Streaming Video
COFDM CCTV Wireless Fiber Optic Transmitter And Receiver Mobile Live Streaming Video
Specifications
Brand Name :
HOWMELLY
Model Number :
HMMAT03
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
1set
Price :
USD1-5000 per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000sets per month
Delivery Time :
10-15days
Packaging Details :
1 whole set strictly packed in papar box
Modulation :
COFDM 2K QPSK/TDS-OFDM
Output power :
1-5W
Work frequency :
300MHz~900MHz (Adjustable)
Encryption :
AES/ABS(128bit)
Channel bandwidth :
1.25/2/4/6/8MHz (Adjustable)
Video Input :
HDMI,SDI,AV
Size :
215mm×120mm×70mm(L × W ×H)
Weight :
2.0kg (include battery)
Description

Mobile Live Streaming Video COFDM CCTV Wireless Video Transmitter and Receiver

Product Description:

HMMAT03 adopts the newest technologies of COFDM modulation and H.264/H.265 image compression that enables stable NLOS (Non line-of-sight) transmission with HDMI quality live video. The transmitter has small size with strong power amplifier for long range transmission, and good heat resistant with two cooling fans, performs well in fast-moving transmission and highly secured with AES256 encryption.

Product Sell Point:

1. COFDM modulation and H.264/H.265 image compression

2. Strong diffraction in non line of sight city transmission

3. HDMI,SDI,CVBS video input are available

4. Two-way voice communication

Transmitter HMMAT03 Specification:

General Part:
Working Frequency: 300MHz～900MHz(Others can be customized)
Output Power: 5～8W
Modulation: COFDM 2K QPSK/TDS-OFDM
Channel Bandwidth 1.25/2/4/6/8MHz (Optional)
Code Stream 0.8Mbps～10Mbps
End-to-end Delay 40ms
Error Rate: ≤10-6
Encryption: Optional (AES/ABS(128bit))
FEC: Viterbi (1/2,2/3,3/4)
Guard Interval: 1/32,1/16,1/8,1/4
Power Supply DC12V/4A
Transmit Distance NLOS in city about 3-5km; LOS from air to ground: 50-100km
Audio,Video&Data Part:
Audio Video Data Format: H.264,MPEG-2 ,MPEG-4@ML 4:2:2 compatible with ML 4:2:0
Video Compression: Conform to H.264,MPEG-2,MPEG-4
Mini HDMI video input: Support H264 encoding, support up to 1080P@60fps encoding, backward compatible with other various resolutions, frame rate encoding. 1080 60P, 1080 50P, 1080 30P, 1080 25P, 1080 24P, 1080 60I, 1080 50I, 1080 30I, 720 60P, 720 50P, 720 30P, ..., Self adaptive
CVBS input 720x480 60I(NTSC),720x576 50I(PAL),Self adaptive
Voice Intercom 1 channel two-way voice intercom, input MIC/LINE-IN optional output LINE-OUT, can be connected to the hand microphone
Video Storage Support U disk or TF card local storage
Reverse control Support RS485/RS232 data transparent transmission interface
Others:
Antenna: Whip antenna
Battery: Without
Weight: 1kg(without battery)
Size:

L215XW120XH70mm
Working Temperature: -30～70℃ Relative humidity :90％
Reserve Temperature: -40～80℃; Relative humidity: 90％

Our Service:

1. Lifelong maintainance

2. 24 hour technical support

3. Strong R&D capability; Customized project is welcomed

4. High quality product with competitive price,short delivery time and responsible after-sale service
