Body Worn NLOS COFDM Mobile Wireless Video Transmitter 1km 2km 3km CE Approved
Body Worn NLOS COFDM Mobile Wireless Video Transmitter 1km 2km 3km CE Approved
Specifications
Brand Name :
HOWMELLY
Model Number :
HMMAT03
Certification :
CE,FCC,ROHS
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000sets per month
Delivery Time :
5-15days
Packaging Details :
1 whole set strictly packed in paper carton or wooden case
frequency :
300MHz~5.8GHz (Adjustable)
Output power :
5W~8W (Adjustable)
Modulation :
COFDM 2K QPSK/TDS-OFDM
Video input :
HDMI or SDI;
Transmit distance :
3-5km in city 70-100km for UAV
Weight :
1kg
Description

Military Body Worn 1km 2km 3km NLOS COFDM Mobile Video Transmitter


Product Description:
HMMAT03 backpack transmitter with bi-directional voice is mainly used as individual soldier equipment.

This model can also be used as on board transmitter. that allowed motion speed of the vehicle for more than 180 kilometers.

It is an ideal equipment applicable to individual soldiers, urban environment and motion platform.


Key Feature:

1. Bidirectional full-duplex voice
2. H.264/H.265 digital video processing and coding
3. Full HD picture 1080P(1920*1080)

4. Voice, image and data are encrypted; encryption algorithm :AES, 128 bit

5. High receiver sensitivity, up to-106dBm

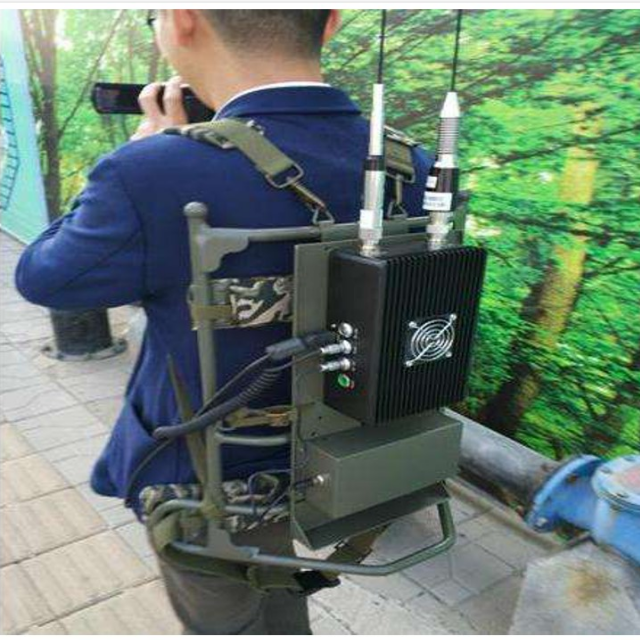

Transmitter Picture:
Body Worn NLOS COFDM Mobile Wireless Video Transmitter 1km 2km 3km CE Approved

Transmitter Parameter

General Part:
Work frequency: 300MHz~5.8GHz (Adjustable)
Output power: 5W~8W (Adjustable)
Modulation: COFDM 2K QPSK/TDS-OFDM
Channel bandwidth: 1.25/2/4/6/8MHz (Adjustable)
Encryption: AES/ABS(128bit)
Code stream 0.8Mbps~10Mbp
End to end delay: <40ms
Error rate: ≤10-6
FEC: Viterbi (1/2,2/3,3/4)
Guard interval: 1/32,1/16,1/8,1/4
Power Supply: DC10V~16V/2.0A
Transmit distance: Urban area:3-5 kilometer, 70-100km for UAV from air to ground
Audio&Video Part:
AV data format: H.264,MPEG-2,MPEG-4@ML 4:2:0
Video input: HDMI, SDi,AV
Audio input: Left and right channel
Video compression Adopt H.265,H.264,MPEG-2,MPEG-4
Resolution: 1080P(19208*1080)compatible with 720× 576@ transmit rate is 30fps.
Audio&Video: One way video,two way audio
Two way voice: Two way voice is optional
Others:
Antenna: Omnidirectional whip antenna
Battery: work 4 hours (Continuously)
Weight: 1kg
Size: 215mm×120mm×70mm(L × W ×H)
Work Temperature: Temperature:-30~70℃ Relative humidity:90%
Reserve Temperature: Temperature: -40~80℃ Relative humidity:90%

Our Service:

1. Lifelong maintainance

2. 24 hour technical support

3. Strong R&D capability; Customized project is welcomed

4. High quality product with competitive price,short delivery time and responsible after-sale service
