4 Channel Real Time COFDM Receiver , Long Range Wireless Video Transmitter Receiver
4 Channel Real Time COFDM Receiver , Long Range Wireless Video Transmitter Receiver
Specifications
Brand Name :
HOWMELLY
Model Number :
HMHHR02-CH
Certification :
CE,FCC,ROHS
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000sets per month
Delivery Time :
5-15days
Packaging Details :
1 whole set strictly packed in paper carton or wooden case
Modulation :
COFDM QPSK, 16QAM, 64QAM
Frequency :
300MHz-5.8GHz
Receiving Sensitivity :
≤-100dBm @ 4MHz, ≤-97dBm @ 8MHz
Signal strength :
Receive signal strength, liquid crystal indication
Decompression format :
H.264
Video Input :
HDMI or SDI,RJ45
Size :
460mm×420mm×185mm(L × W ×H)
Weight :
20kg
Description

4 Channel Real Time Long Range COFDM Video Receiver

Product Description:

HMHHR02-4CH can simultaneously support 4 channels of video signals from the front end for local real-time viewing and storage, two-way voice intercom, and

The device has a built-in 4G module that can transmit locally received images to the remote end in real time. Widely used in public security, armed police, fire, electricity, emergency control, emergency and other environments.

Key Point:

1. 4 channels of video signals are received simultaneously

2. Built-in high-definition screen displays images in real time.

3. LCD screen indicates signal strength, parameters is adjustable

4. Powerful NLOS non-line-of-sight transmission capability

5. Built-in high-performance lithium battery for long-term work needs

6. Built-in keyboard for cloud plat form control of front-end domes

7. Built-in hand microphone, can realize two-way voice intercom for front-end individual soldiers

8. Built-in 4G internet module, real-time forwarding of audio and video signals in real time

9. Various forms can be customized according to customer requirements

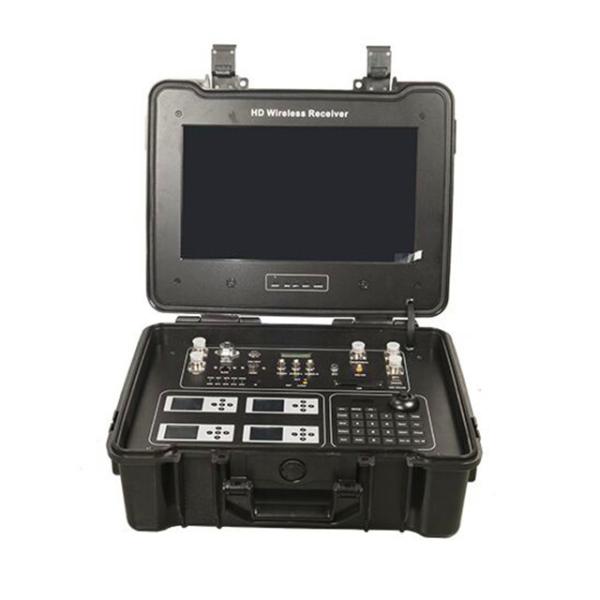

Product Picture:

4 Channel Real Time COFDM Receiver , Long Range Wireless Video Transmitter Receiver

4-Channel Receiver Parameter:

Radio Frequency Modulation Section
Frequency 138MHz～2470MHz
Modulation COFDM
Channel Bandwidth 2/2.5/4/8MHz
Encryption Manual AES double encryption
Receive Sensitivity ≤-100dBm @ 4MHz, ≤-97dBm @ 8MHz
Signal strength Received signal strength indicated on liquid crystal
System Section
Receiving polarization Vertical polarization, single antenna reception
Receiving technology Spatial diversity reception technology
Usage Handheld suit case
Audio Video System
Decompression format H.264
Audio and video output Digital HDMI interface
Audio output Air interface hand microphone
Resolution HD1080P(1920*1080),Compatible with 1080I,720P,480P
Frame Rate Standard 24,50,60 frame/send, compatible with other frame
Video Output HDMI or SDI,AV,RJ45
Audio Output HDMI,3.5 audio mother base
4G System
4G Transmit Netcom
Position GPS/Beidou
Other Part
Display Built in LCD screen
Power Supply Built-in high-performance lithium battery (capacity can be customized)
Size 460mm×420mm×185mm(L × W ×H)
Weight 20KG
Work environment: Temperature:-30~70℃ Relative humidity:90%
Reserve environment: Temperature: -40~80℃ Relative humidity:90%

Our Service:

1. Lifelong maintainance

2. 24 hour technical support

3. Strong R&D capability; Customized project is welcomed

4. High quality product with competitive price,short delivery time and responsible after-sale service
