Portable Wireless Broadcast Video Transmitter And Receiver For Cameraman
Portable Wireless Broadcast Video Transmitter And Receiver For Cameraman
Specifications
Brand Name :
HOWMELLY
Model Number :
HMBC02
Certification :
CE,FCC,ROHS
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000sets per month
Delivery Time :
5-15days
Packaging Details :
1 whole set strictly packed in paper carton or wooden case
Frequency :
336MHz-2.7GHz
Modulation :
COFDM QPSK，16QAM，64QAM
RF Power :
50/100/200/400/800mW
Video Input :
HD/SD-SDI Adaptive input;CVBS
Audio Input :
SDI Embedded audio
Weight :
1.0kg
Description

Live Broadcast News Portable VIdeo Transmitter for Cameraman

Description:

Whether it's a live news interview or a live broadcast of a sporting event, the cameraman's high mobility is the basic condition for ensuring the best possible results. The HMBC02 Portable COFDM Transmitter delivers the ultra-high mobility required to report these events for easy, flexible and efficient shooting. HMBC02 provides a compact user interface that allows customers to quickly build systems. The gusset structure design and professional audio and video interface are ideal for ENG cameras. HMBC02 offers a variety of modulation modes and encoding parameter settings to meet the performance needs of different application environments. These features make HMBC02 the preferred product for live broadcast and news gathering applications in urban and suburban environments.

Key Feature:

1. Camera gusset mounting

2. Adopt international advanced H.264 compression technology, support 4:2:2 class, achieve studio-level image quality

3. Support 40ms (1 frame) ultra low latency

4. 3 km coverage, strong diffraction ability, can penetrate multi-story building barriers (actual distance varies according to specific test environment)

5. Simple and friendly operation interface

6. Industrial design for a variety of harsh environments

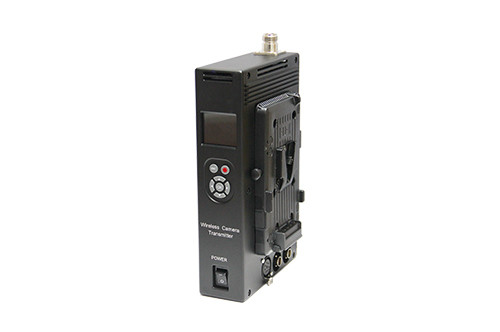

Transmitter Picture:

Portable Wireless Broadcast Video Transmitter And Receiver For Cameraman

Transmitter Specification

Wireless Part

Modulation

COFDM

QPSK,16QAM,64QAM

FEC 1/2,2/3,3/4,5/6,7/8

Protection interval 1/4,1/8,1/16,1/32
Bandwidth 8MHz
Frequency Range 336～344MHz/606～806MHz/1.24～1.3GHz/1.452～1.492GHz/1.95～2.7GHz
RF Power 50/100/200/400/800mW
Antenna Interface N type female,50ohm
Video&Audio Part
Video Input

HD/SD-SDI Adaptive input(BNC x1, 75ohm)

CVBS input(BNC x1, 75ohm)
Video Format

1080i50, 1080i59.94, 1080i60

720p59.94, 720p50, 720p60, NTSC, PAL
Audio Input

SDI Embedded audio,Ch1/Ch2

Analog stereo L/R,XLR -5 interface,male
Audio Format

Sampling Rate:48KHz

Sampling depth:16bit
Encoding Method
Video Coding H.264
4:2:2 Class and Grade

Profile: High 422,

Main Level: 4.1/4.0/3.2/3.1/3.0
Video Bit Rate HD: 1～17.5Mbps；SD: 0.5～12.5Mbps
Audio Coding MPEG1 Layer2
Code Rate 128/256/384Kbps
System Delay
Delay 40ms
Security
Encryption AES128,(can be set)
Power
Power Input 11～17V
Battery Professional camera battery
Consumption 25W
Installation
Installation Method Plate type installation (V type / A type optional)
Environmental parameters
Work Temperature -30～70℃ Relative humidity :90％
Storage Temperature -40～80℃; Relative humidity: 90％
Weight 1.0Kg
Size 51mm(D) x 130mm(W) x 212mm(H)

Our Service:

1. Lifelong maintainance

2. 24 hour technical support

3. Strong R&D capability; Customized project is welcomed

4. High quality product with competitive price,short delivery time and responsible after-sale service
