Specifications
Brand Name :
Kimpok Technology / OEM
Model Number :
KP-12TX10W
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
1000 pcs Per Month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Product name :
1.2Ghz FM wireless audio video transmitter
Frequency :
1.2Ghz
Transmit Power :
10 watt
Video input :
BNC
Weight :
200g
Channel :
4 channels
Description

Powerful FM Wireless AV Transmitter and Receiver with BNC Input

Analog wireless video transmitter Description:

If you are seeking an equipment that can transmit the audio and video to a long distance without cable, for example the villa, small lake, bridge or some other open areas, this transmitter system is the right one you need.
This equipment will cover a long distance in the open area around 10-20km LOS, 5km NLOS on ground, and 30km LOS from air to ground. But when there are obstacle between the transmitter and receiver, it will be decided case by case.
This unit is the professional one and the signal is very strong in 1.2 GHz series that can be used to cover the long distance where need strong signal and the industrial project.


Tx Specification:

Model KP-12TX10W

Voltage

 12V DC

Current

2A

Frequency

1.2 GHz

Number of channels

4 Channels
Frequency band

1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz

Transmit Power

10 watt

Video Output

1 Vp-p(FM)

Audio Output

1 Vp-p(FM)

Audio Carrier Ware

5.5M 6.0M

Distance

10~20km LOS on ground, 30km from air to ground

Dimensions (L * W * H)

150*65*30mm

Temperature

-10℃ ~ +50℃

Transmitter Weight

200g

Accessories

Transmitter, AV cable, high gain antenna

Rx specification:

Frequency 1.2 Ghz
Channel 8 channels
Frequency band 1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz, 1.240Ghz, 1.280Ghz, 1.320Ghz, 1.360Ghz
Working voltage DC 12V
Current consumption 260mA
Weight 90g
Size 120*60*20mm
Accessories receiver, antenna, AV cable


Features:

1. Using FM mode, anti-interference ability, good image quality;
2. Image, audio sync, color black and white compatible;
3. Small size, light weight, easy to carry, good installation;
4. Responsive, timely, send and receive real-time transmission;
5. Wireless transmission: no need to set up communications cable;
6. Highly integrated, stable and reliable transmission distance;
7. DC power supply, easy to use;
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

High gain antenna for Tx:
Powerful FM Wireless AV Transmitter And Receiver With BNC Input

Powerful FM Wireless AV Transmitter And Receiver With BNC Input

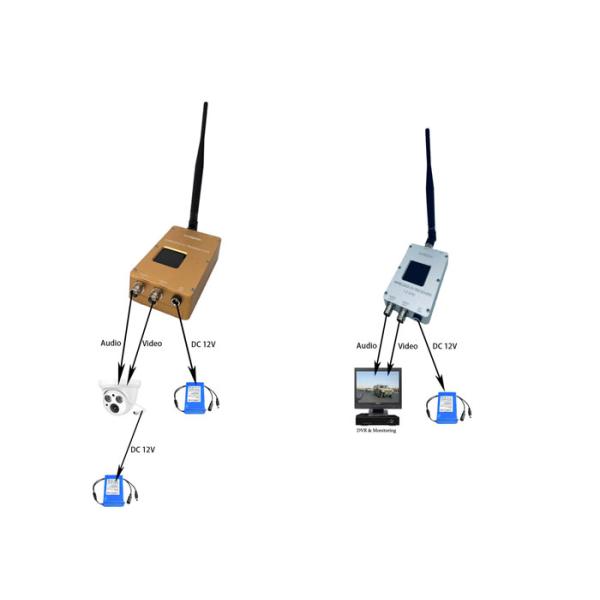

Installing:
Powerful FM Wireless AV Transmitter And Receiver With BNC Input

Application:

It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.
