Commercial Wireless Video Audio Receiver Single Channel 400-450MHz with 17inch LCD
Commercial Wireless Video Audio Receiver Single Channel 400-450MHz with 17inch LCD
Specifications
Brand Name :
Kimpok
Model Number :
KP-DRB01
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, PayPal, Western Union
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Price :
Negotiation
Supply Ability :
3,000pcs per month
Modulation :
COFDM
Frequency/Video :
400-450 MHz (adjustable)
Frequency/data :
230MHz
Channel :
1CH analog AV
LCD Monitor :
17 Inch Samsung LCD screen
Size :
370*490*220mm
Description

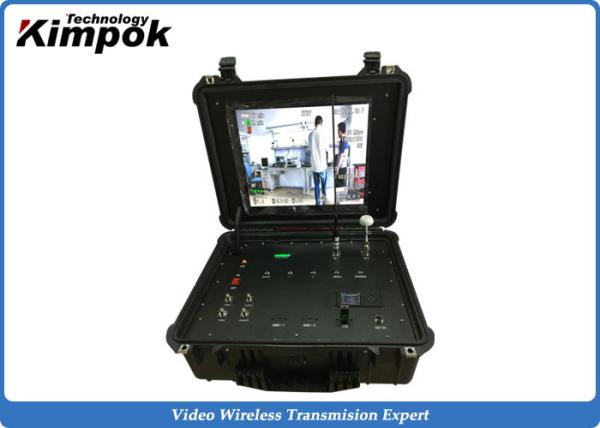

Single Channel Suitcase COFDM Receiver 17'' Wireless Digital Video Receiver Box

This is our exclusive design COFDM transmitter and matched receiver. Has a character of low power consumption, small dimension on the transmitter and more adequate considerations provided by us to make it more intuitive and natural.

Use H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation with 1 channel suitcase receiver built in with DVR monitor, provide high quality of picture in revolution 720*576 and short latency. Be with video server, support remote image monitor, dynamic IP, support IE browsing.

This special designed system is for long range distance for military tactical application with voice intercom function, which also be popular to use in other fields for live broadcast video audio transmission.

Features:

1) Standard COFDM receive,Dual aerial designed for better signal receive

2) Modular design and highly integrated

3) 17inch LCD screen,signal video recording and monitor

4) Single-channel video server, remote image monitoring, dynamic IP to achieve IE browser

5) Support remote control PTZ

6) External keyboard to control the front-end operation system

7) H.264 video compression

8) Full hd resolution,very sharp image

9) Internal with 120G SSD memory

10) Can control operation system by using external mouse.

Tech specifications:

Frequency 300-4400MHz (option)
RF bandwidth 2/2.5/4/8MHz(adjustable),usually 4/8MHz is for HD
Memory embedded DVR, standard 120G SSD
LCD monitor 17inch Samsung LCD screen
RF Level Input -92dBm~-20dBm / -105dBm~-20dBm
RF Interface N(F)
AV output BNC/RCA
Data output RS485/RS232/RS422 (optional)
Modulation COFDM
Power supply AC220V / DC12V
Constellation QPSK,16QAM,64QAM(optional),
FEC 1/2,2/3,3/4,5/6,7/8
Guard Interval 1/32,1/16,1/8,1/4
Video format 1 line PAL/NTSC video signal (auto-adaptation)
Video Decoding H.264/MPEG-4
Resolution SD 720p/i
Audio Output stereo left and right channel
Data encryption AES 128/256bits
Work environment -30~70° C
Built in Battery 30000mA
Size 370*490*220mm
Weight 18kg

Poduct application:

Commercial Wireless Video Audio Receiver Single Channel 400-450MHz with 17inch LCD
