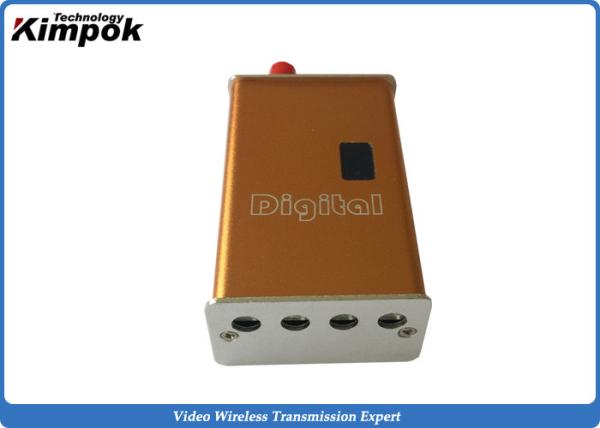

LOS long range FPV transmitter , 6000mW Wireless Analog Transmitter 1.2Ghz
LOS long range FPV transmitter , 6000mW Wireless Analog Transmitter 1.2Ghz
LOS long range FPV transmitter , 6000mW Wireless Analog Transmitter 1.2Ghz
LOS long range FPV transmitter , 6000mW Wireless Analog Transmitter 1.2Ghz
LOS long range FPV transmitter , 6000mW Wireless Analog Transmitter 1.2Ghz
LOS long range FPV transmitter , 6000mW Wireless Analog Transmitter 1.2Ghz
LOS long range FPV transmitter , 6000mW Wireless Analog Transmitter 1.2Ghz
LOS long range FPV transmitter , 6000mW Wireless Analog Transmitter 1.2Ghz
Specifications
Brand Name :
Kimpok
Model Number :
KP-MINIA7
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
100 PCS Per Month
Delivery Time :
3-7 days
Packaging Details :
Export Standard Packing
Frequency :
1.2Ghz
Number of channels :
6 CHs
Transmit Power :
6000mW
Voltage :
DC 12V
Weight :
100g
Transmit Distance :
5-10km in open place
Description

100KM LOS FPV/UAV Wireless Image Transmitter 1.2Ghz , 7W Mini Video Link


Description:

KP-MINIA7 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 0dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 5-10km or so, if the raising of the high gain directional antenna, increased to 12KM away, it can be reach up to 100KM on UAV/helicopters. And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.

It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.

Features:

1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

Specification:

Transmitter parameter:

Output 36dbm(7W)
Current Consumption 1.5A
Frequency 1.2Ghz
Channel 4CH
Output impedance 50 Ohm
Audio input impedance 1k Ohm
Audio input amplitude 1.2Vp-p
Video input impedance 75 Ohm
Video input amplitude 1.2Vp-p
Voltage DC 12V(at 36dbm)
Working current 700mA
The lowest Voltage DC 5V(at 31dbm)
Weight 100g
Size 74*56*36mm
Transmission range 5-10km (LOS on ground); up to 100km LOS from air to ground
Accessories transmitter, antenna, Tx cable, DC 12V, 3A adapter

Receiver parameter:

Frequency 1.2Ghz
Channel 12CH
Working voltage DC 12V
Current consumption 260mA
Weight 115g
Size 115*80*21mm
Accressories receiver, antenna, AV cable
