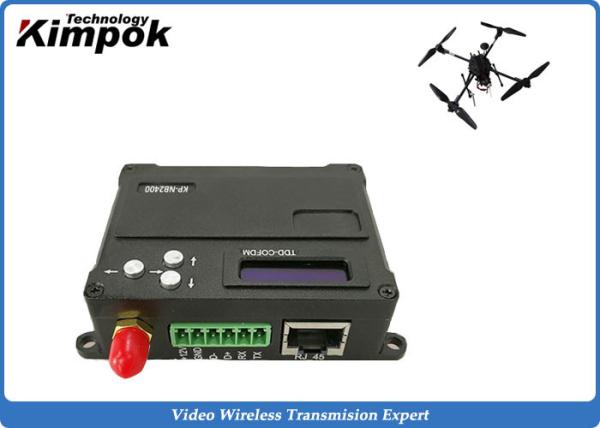

Ethernet audio video sender receiver wireless COFDM DC7V-17V
Ethernet audio video sender receiver wireless COFDM DC7V-17V
Specifications
Brand Name :
Kimpok
Model Number :
KP-NB2400
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
T/T
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Bandwidth :
4MHz/8MHz (adjustable)
Interface :
RJ-45 ethernet ,RS232/RS485/RS422
Resolution :
Support 720P and 1080P@50/60hz, 30 frames
Encryption mode :
128bit AES(or 256bit AES)
Modulation :
TDD_COFDM
Dimension :
75*51*22mm
Description

COFDM Data Link Encryted Wireless Digital Transceiver for UAV / Drone / Quadcopter

Main Feature

1) Provide up to 6.5Mbps of data flow, dynamic adaptive rate allocation technology;

2) Smart settings, simple operation, easy to use;
3) Support transparent PTMP network technology;
4) Safety with AES 128 bit, can set user’s password;
5) Support non line of sight ( NLOS ) high-speed mobile transmission;
6) Provide standard RS-232&RS-485 + RJ45 ethernet;
7) Transmit/receive video audio, data and other multimedia signals simultaneously;
8) Support high standards of Industrial and military level applications;
9) The small volume, light weight, easy to carry, the radiating aluminum casing;
10) High clear OLED digital display, the interface simple and easy operation.

Product Parameters
Power supply
DC7V～17V, 6W consumption
Ethernet
10/100BaseT,Auto-MDI/X,IEEE802.3
TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS
Output frequency
2405～2470MHz(adjustable)
Output rf power
100-1000mW(30dBm) (adjustable)
Bandwidth
4MHz/8MHz (adjustable)
Interface
RJ-45 ethernet ,RS232/RS485/RS422
Reolution
Support 720P and 1080P@50/60hz, 30 frames

Encryption mode
128bit AES(or 256bit AES)
Error correction mechanism
32bit of CRC,ARQ
Modulation
TDD_COFDM
Parameter control
Through OLED control panel to modify parameters
Working temperature
-40℃～85℃
Dimension
75*51*22mm
Weight
135g

Product Application

It has advantange of small volume and light weight,especially widely used in UAV/ drones /Quadcopter/Octocopter/hexacopter, WIFIBOT Network building and etc.. such fast-moving complex environment video data signals transmission.

Ethernet audio video sender receiver wireless COFDM DC7V-17V

Testing:

Ethernet audio video sender receiver wireless COFDM DC7V-17V
