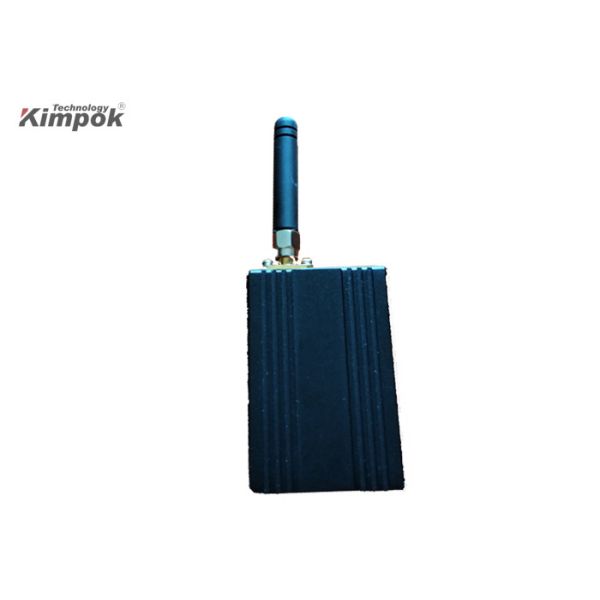

COFDM Wireless UAV Video Transmitter , HDMI Extender Tx Sender 10km Distance 200mW
COFDM Wireless UAV Video Transmitter , HDMI Extender Tx Sender 10km Distance 200mW
COFDM Wireless UAV Video Transmitter , HDMI Extender Tx Sender 10km Distance 200mW
COFDM Wireless UAV Video Transmitter , HDMI Extender Tx Sender 10km Distance 200mW
Specifications
Brand Name :
Kimpok
Model Number :
KP-AHD200MW
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3,000 pieces per month
Delivery Time :
3-7 days
Packaging Details :
Export standard packing
Frequency :
300MHz-4.4GHz
Power :
200mW
Encryption :
AES 128bit (user-defined password)
Carrier :
2K, 8K
Case Material :
Aluminum alloy
Weight :
420g
Description

10km COFDM Wireless UAV Video Transmitter PTP Transmission for Navy Drones

COFDM UAV Video Transmitter Introduction:

KP-AHD200MW miniature 1080P HD transmitter is a powerful HD transmit system,using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. Support full HD 1080P H.265 encoding format and HD input as well support stereo balance audio input and narrowband transmission system.

Robot Transmitter Features:

  1. COFDM modulation;
  2. Low delay, lightweight, live broadcast;
  3. Support Full-HD quality image;
  4. Support 1080i/1080P HD transission;
  5. Built-in with AHD or HDM-I or HD-SDI interface(single selection);
  6. Support composite standard video and balanced audio input;
  7. All parameters can be adjusted by user;

Specification:

Voltage DC5V~DC14V
Current ≤0.6A DC12V
Video input CVBS: support HD1080P,720P,576,480; 30FPS
Control input RS232; 192000bps
Frequency 300mHz-900mHz (optional)
Bandwidth 2/2.5/4/8MHz(adjustable)
Output power 200mW
Data encryption AES 128bit (user-defined password)
Modulation COFDM
Modulated mapping QPSK(4QAM); 16QAM; 64QAM
Bandwidth 2/4/6/8M (adjustable)
FEC 1/2, 2/3, 3/4, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
Video Compression H.265/H.264/MPEG-4
Standard Video Format PAL/NTSC (auto adaptation)
Parameter control method Set the related parameters through the control panel
RF Interface SMA
Working temperature -20℃~75℃
Transmission distance 10km LOS (on air); 500m on ground station
Dimension 132*90*26mm
Weight 420g

COFDM Wireless UAV Video Transmitter , HDMI Extender Tx Sender 10km Distance 200mW

COFDM Wireless UAV Video Transmitter , HDMI Extender Tx Sender 10km Distance 200mW
