100 Watt Wireless COFDM Video Transmitter High Power Rugged For Long Distance
100 Watt Wireless COFDM Video Transmitter High Power Rugged For Long Distance
100 Watt Wireless COFDM Video Transmitter High Power Rugged For Long Distance
100 Watt Wireless COFDM Video Transmitter High Power Rugged For Long Distance
100 Watt Wireless COFDM Video Transmitter High Power Rugged For Long Distance
100 Watt Wireless COFDM Video Transmitter High Power Rugged For Long Distance
Specifications
Brand Name :
Kimpok Technology / OEM
Model Number :
KP-CM100H
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
1000pcs/month
Delivery Time :
7-15 working days
Packaging Details :
International packing
Modulation :
COFDM
RF power :
100 Watt (adjustable)
Video Compression :
H.264
Video input :
HDM-I; SDI; CVBS
Frequency :
300MHz-860MHz(adjustable)
Weight :
26kg
Description

100 Watt High Power Rugged COFDM Wireless Video Transmitter for Long Distance

Description:

The KP-CM100H is a powerful COFDM digital wireless video & data transmitter from Kimpok Technology. With latest COFDM modulation, narrow-band, and H.264 encoder technology as its code, the KP-CM100H COFDM HD video voice digital transmitter sends high definition images ideal for establishing rugged wireless video links in different environments, like mobile and urban environments.

The high power and high definition makes the KP-CM100H COFDM video transmitter ideal for large UAV super long range video communication and mobile vehicle to vehicle, or mobile vehicle to command center building wireless video communication applications, enabling true long range HD video & data transmission.

Special features:

* 1080P high quality video images transmission
* strong safety with AES user-defined passwords

* ultra low latency, 100ms end to end
* 100 Watts high power and low latency
* support NLOS and fast moving environments but still in stable signals transmission
* easy operation by digital panel configuration, and LCD display
* designed in military-grade level
* voice and video logn range transmission

Specification:

Voltage DC28V
Bandwidth 2/2.5/4/8MHz
Frequency video 300MHz~900MHz, 1MHz increment; other Frequency can be customized
Frequency data (Option) 433MHz or other band
Modulation COFDM 2K
RF power 60-100W(adjustable)
FEC 1/2, 2/3, 3/4, 7/8
Guard interval 1/32, 1/16, 1/8, 1/4
Video port HDM-I /HD-SDI / CVBS
Data port (Option) RS232 / RS485
Video resolution 1080P/i & 720P/i
Video coding H.264/H.265
Video format PAL/NTSC
Encryption AES128/256bits
Dimension 575*505*360mm
Weight 26kg
Parameter setting user manually setting via LCD display

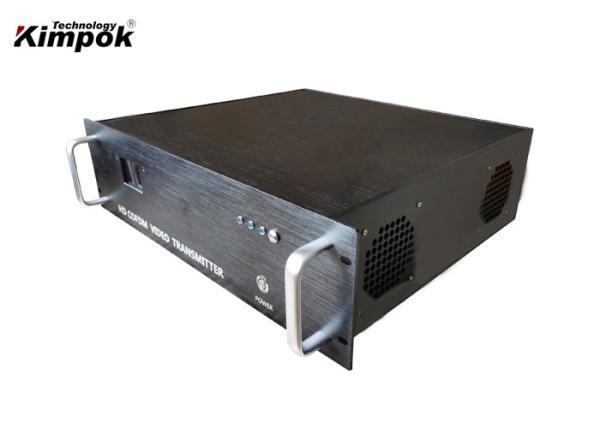

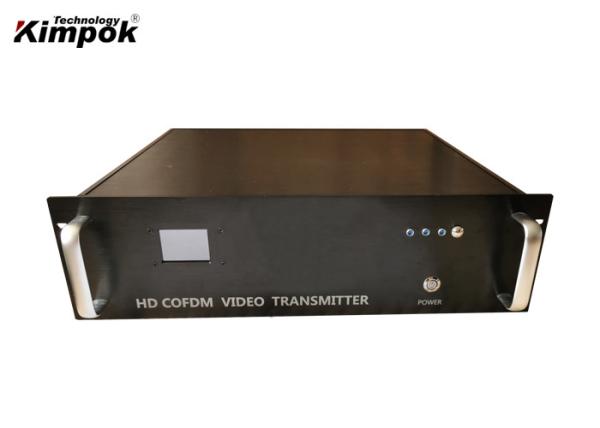

Front side:

100 Watt Wireless COFDM Video Transmitter High Power Rugged For Long Distance

Back side:

100 Watt Wireless COFDM Video Transmitter High Power Rugged For Long Distance
