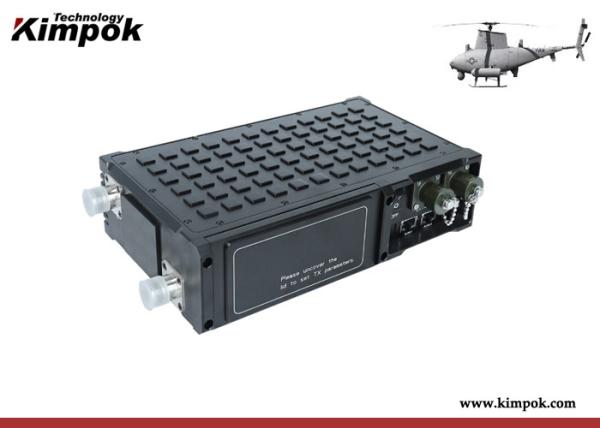

80-100km LOS 5W Digital Transmitter Receiver , data link drone AES Encryption
80-100km LOS 5W Digital Transmitter Receiver , data link drone AES Encryption
80-100km LOS 5W Digital Transmitter Receiver , data link drone AES Encryption
80-100km LOS 5W Digital Transmitter Receiver , data link drone AES Encryption
Specifications
Brand Name :
Kimpok
Model Number :
KP-FDD5W
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
1000PCS per month
Delivery Time :
3-7 days
Packaging Details :
Export Standard Packing
Modulation :
FDD-COFDM 2K
RF Frequency :
555MHz (can be customized 300-3300MHz)
RF Bandwidth :
1/2/4/8MHz
RF power :
5W (37dBm)
Encryption :
AES
Weight :
3kg
Description

80-100km LOS UAV Video Transmitter 5W Long Range Ethernet Radio Uplink Downlink

Description:

KP-FDD5W is a new COFDM modulation digital transmitter receiver integrated with using Frequency-division duplexing(FDD) technology,designed with dual -mode rf transceiver architecture and system

which operate at different carrier frequencies ideal for long range communication in network solution.

Implement of super narrowband (1MHz), low-latency and high-sensitivity capacity that is ideal for long-distance transmission and non-line-of-sight (NLOS) applications .With highly integrated embedded design, super-linear digital predistortion RF design and network,modulation and demodulation, full-band RF output All-in-One which help you complete the design of long-distance wireless links more conveniently and quickly.

It is mainly used for multi channel video transmission RS232 signals, unmanned control systems

with high standards, and intelligent control equipment wireless telecommunication.

Features:

◆ 5W RF power output
◆ Low latency and great data send from end to end
◆ Provides great transfer rate for uplink and downlink
◆ Transparent IP ethernet and serial data telecommunication in sync
◆ Dual frequency is ideal for IP solution long-distance required
◆ Dynamic AES encryption 128bits
◆ Narrowband 1M/2M/4M/8MHz available
◆ Work well in NLOS fast moving condition
◆ Bi-directional video/data wireless communication
◆ Small in size, lightweight and low consumption
◆ Easy operation and deployment

Specification:

Modulation
COFDM 2K
Working voltage
DC 11-14V
Working current
2.7A_12V
TX output frequency
555MHz (300-2500MHz selection)
RX input frequency
595MHz (300-2500MHz selection)
RF bandwidth
1/2/4/8MHz
Output power
5W
Encryption/decryption mode
AES128 bits
Transfer rate
2x30 Mbit/s uplink and downlink
RF connector
N-type *2
Ethernet
Standard RJ45 port *2
Serial port
RS232/RS485 serial port,115200bps maximum
LCD panel with keypad
Easy to set the related parameters
Transmit distance

80-100km from air to ground

2-5km NLOS / 5-10km LOS on ground station
Dimension
200*130*60mm (Estimated value)
Weight
3kg
