100km LOS UAV Data Link 5 Watt Long Distance H.265 Video Coding With AES 128 Bits
100km LOS UAV Data Link 5 Watt Long Distance H.265 Video Coding With AES 128 Bits
100km LOS UAV Data Link 5 Watt Long Distance H.265 Video Coding With AES 128 Bits
100km LOS UAV Data Link 5 Watt Long Distance H.265 Video Coding With AES 128 Bits
100km LOS UAV Data Link 5 Watt Long Distance H.265 Video Coding With AES 128 Bits
100km LOS UAV Data Link 5 Watt Long Distance H.265 Video Coding With AES 128 Bits
100km LOS UAV Data Link 5 Watt Long Distance H.265 Video Coding With AES 128 Bits
100km LOS UAV Data Link 5 Watt Long Distance H.265 Video Coding With AES 128 Bits
100km LOS UAV Data Link 5 Watt Long Distance H.265 Video Coding With AES 128 Bits
100km LOS UAV Data Link 5 Watt Long Distance H.265 Video Coding With AES 128 Bits
Specifications
Brand Name :
Kimpok Technology
Model Number :
KP-HD50LW
Certification :
No
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
T/T
Delivery Time :
7-10 working days
Packaging Details :
export standard packing
Modulation :
COFDM
Encryption :
AES 128 bits
Video compression :
H.265
AV Interface :
HDMI/HD-SDI, CVBS
Weight: :
660g
Resolution :
1080P/1080I; 720P/720I
Description

100km LOS UAV Video Transmitter 5 Watt Long Distance UAV Video Link H.265 Video Coding

Description:

Model KP-HD50LW is our powerful full HD AV signals transmitter,using the core of mobile communication technology COFDM,which can transmit good quality and stable Full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. 2-5W RF power output adjustable.Support full HD 1080P(1080i) H.265 encoding format and HDMI/HD-SDI inputs (single selection) as well support CVBS stereo balance audio input and narrowband transmission system. Widely used in UAV,public security organs, procuratorate, court and security bureau etc.

Features:

2-5W rf power adjustableCOFDM modulation technology ensure the stability of signal
Support FULL HD quality,1080i/P@30fps;Built-in with HDMI and CVBS inputs;
Provide AES128 encryption for video safety.It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz.
Low delay timeH.265 video coding
2k, 4k, 8k CarrierWidely used in helicopter shooting, Live broadcast and etc…


Transmitter parameter:

ModulateCOFDM
Working voltageDC12V
Working current≤6A@DC12V
RF bandwidth2/4/6/8MHz (adjustable)
Frequency300-900Mhz or other frequency customized
Output power2-5W adjustable
Video inputHDMI/SDI; CVBS
Data input (option)RS232/TTL, up to 115200bps
Video resolution1920*1080P/I@60fps; 1280*720P/I@60fps
Video codingMPEG-2/H.264/H265
Video rate512Kbps-16Mbps (adjustable)
EncryptionAES 128 bits
AV input1Vp-p, 75Ω. Left and right channel
Video systemPAL/NTSC
Power flatnessFull band ≤1.5dB
CNR≥25dBc@48dBm
Second harmonic≥60dBc
CBER<2.0E-4
VBER<1.0E-7
MER32dB
Carrier2k 4k 8k
ConstellationQPSK,16QAM,64QAM (option)
FEC1/2, 2/3, 3/4, 5/6, 7/8 (option)
Guard Interval1/32, 1/16, 1/8, 1/4 (option)
Working Temperature-25°C~55°C
Dimension130*100*43mm
Weight660g


Rack-mounted type COFDM HD Video Receiver
100km LOS UAV Data Link 5 Watt Long Distance H.265 Video Coding With AES 128 Bits

Receiver parameter:

Frequency170-900MHz, VHF&UHF
Bandwidth2/3/4/5/6/7/8MHz (option)
RF input level-94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance50Ω
RF input typeN type
ModulationCOFDM
ConstellationQPSK,16QAM,64QAM(adjustable)
FEC1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier2k
Guard Interval1/32,1/16,1/8,1/4(adjustable)
Video codingMPEG-2/H.264MP@ML
Screen4:3 16:9
Video resolution1080P@4MHz
Audio outputStereo unbalance 300/ 200mv
AV output2 Audio output + 2 Video output. SDI/HDMI/ASI
Working voltageAC220V/DC12V ＜1A
working temperature-20℃～+50℃
Dimension480*260*45(1U chassis)
Weight1.5kg

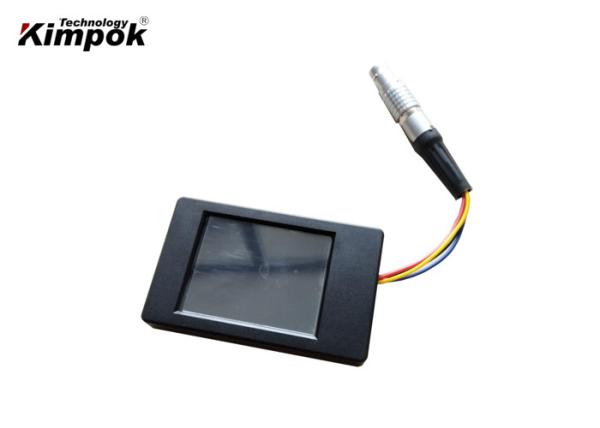

Tx Extenal User configuration:
100km LOS UAV Data Link 5 Watt Long Distance H.265 Video Coding With AES 128 Bits

Application:

This special designed system is for long range distance for any AV equipments, especial for UAV, UGV and has been widely used in Police Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support.
