Audio Video IP Mesh Network Mini NLOS Wireless 36dBm Kimpok DC12V
Audio Video IP Mesh Network Mini NLOS Wireless 36dBm Kimpok DC12V
Audio Video IP Mesh Network Mini NLOS Wireless 36dBm Kimpok DC12V
Audio Video IP Mesh Network Mini NLOS Wireless 36dBm Kimpok DC12V
Specifications
Brand Name :
Kimpok Technology / OEM
Model Number :
KP-MESH110
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
1000pcs/month
Delivery Time :
7-15 working days
Packaging Details :
International packing
Video port :
RJ45*2
RF power :
30dBm (33dBm/36dBm Optional)
Sensitivity :
-102dBm maximal
Encryption :
AES 128/256 bits
Bandwidth :
1.4/3/5/10/20Mhz
Weight :
460g
Description

Mini Wireless IP Radio Mesh 36dBm NLOS Network Video Audio Communication

Description:

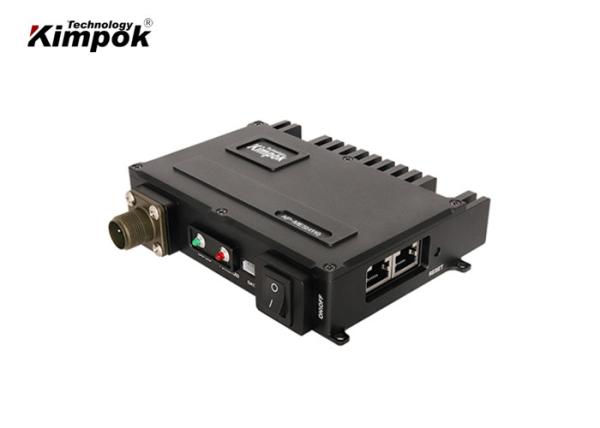

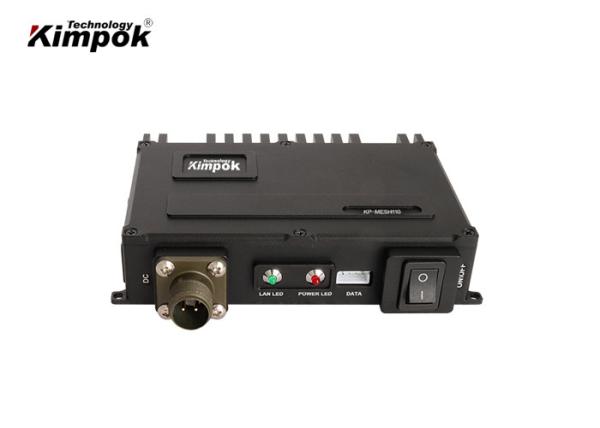

This KP-MESH110 is a new robust narrowband Ethernet wireless mesh,also MIMO raidos optimized for tactical applications.Its capabilities can have a mix of licensed-and unlicensed-frequencies and co-exist in one seamless working wireless network,which is appropriate for multi channel advance the video and data communication ,like any shape topology star working mode.

Focus on huge data amount and faster data rate, the mesh repeater KP-MESH110 provides data rate of peak 80-150Mbps @20MHz, which meets the requirements of covering many nodes in the same system.

What’s more, it can freely communicate with other handheld IP mesh of Kimpok Technology company, wirelessly. The mesh repeater and handheld mesh from Kimpok Technology company, can form an efficient and flexible wireless MIMO network.

Main Features:

Up to 36dBm of output power Multi link wireless communication
Wireless MESH network,bridge and PTZ control combination Transmit rate can be up to 96Mbps
Long range full duplex and NLOS telecommunication support Good diffraction and anti-interference
High security with encryption 256 bits Small dimension, light weight,heat dissipation of aluminum case
Highly integrated modular combination design Software configured, can see the topography

Specifications:

Frequency

300-2500MHz available

Please select a 100MHz span in between them.
Bandwidth 5M/10M/20M/40MHz (Adjustable)
RF power 30dBm (33dBm/36dBm Optional)
Sensitivity -102dBm maximal
Modulation DSSS/CCK BPSK/QPSK OFDM BPSK/QPSK//16-QAM/64-QAM
Working voltage DC12V
Power consumption ~ 5W
Working temperature -40℃~ +65℃
RF interface SMA * 2
Ethernet port RJ45 * 2 (for IP camera or other steam with Ethernet port)
Operation Manual via Web Software
Dimension 131*103*29mm
Weight 460g
Distance for 2 pcs

1~1.5km LOS on ground level

500m NLOS on ground level

15~20km LOS from UAV to ground station

Audio Video IP Mesh Network Mini NLOS Wireless 36dBm Kimpok DC12V

Audio Video IP Mesh Network Mini NLOS Wireless 36dBm Kimpok DC12V

Audio Video IP Mesh Network Mini NLOS Wireless 36dBm Kimpok DC12V
