Specifications
Brand Name :
Kimpok Technology
Model Number :
KP-HDT1W
Certification :
No
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
T/T
Delivery Time :
7-10 working days
Packaging Details :
export standard packing
Frequency/Video :
300-900MHz, or other frequency customized
Modulation :
COFDM
Resolution :
1080P/1080I; 720P/720I
AV Interface :
HDMI/HD-SDI, CVBS
Power :
1 watt
Video compression :
H.265
Description

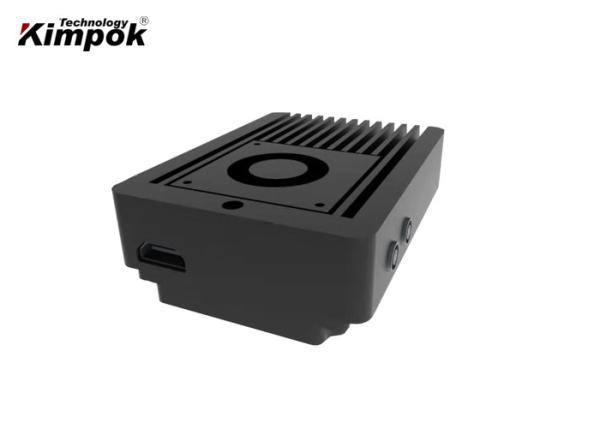

Small COFDM Wireless Video Transmitter 500 Meters NLOS Hidden Manpack AV Sender 1080P

Mini COFDM UAV Video Transmitter Description:

Model KP-HDT1W is our powerful full HD av signals transmitter,using the core of mobile communication technology COFDM,which can transmit good quality and stable Full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. 2-5W rf power output adjustable.Support full HD 1080P(1080i) H.265 encoding format and HDMI/HD-SDI inputs (single selection) as well support CVBS stereo balance audio input and narrowband transmission system.

Features:

● 1W rf power adjustable

● COFDM modulation technology ensure the stability of signal

● Support FULL HD quality,1080i/P@30fps;

● Built-in with HD and BNC ports;

● Provide AES128 encryption for video safety.

● It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz.;

● Low delay time

● With four holes at the bottom of the transmitter for fixed installation

● Widely used in helicopter shooting, Live broadcast and etc…

Transmitter parameter:

Modulate COFDM
Working voltage DC12V
Working current ≤6A@DC12V
RF bandwidth 2/4/6/8MHz (adjustable)
Frequency 170-900Mhz, (support frequency customization within 300MHz-4400MHz)
Output power 1W
Video input HDMI/SDI; CVBS
Data input (option) RS232/TTL, up to 115200bps
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps
Video coding MPEG-2/H.264/H265
Video rate 512Kbps-16Mbps (adjustable)
Encryption AES 128 bits
AV input 1Vp-p, 75Ω. Left and right channel
Video system PAL/NTSC
Power flatness Full band ≤1.5dB
CNR ≥25dBc@48dBm
Second harmonic ≥60dBc
CBER <2.0E-4
VBER <1.0E-7
MER 32dB
Carrier 2k 4k 8k
Constellation QPSK,16QAM,64QAM (option)
FEC 1/2, 2/3, 3/4, 5/6, 7/8 (option)
Guard Interval 1/32, 1/16, 1/8, 1/4 (option)
Working Temperature -25°C~55°C
Dimension 130*100*43mm
Weight 660g

External modulation display:


Small HD COFDM Transmitter , 1080P Wireless AV Sender 500 Meters NLOS Hidden Manpack

Rack-mounted type COFDM HD Video Receiver
Small HD COFDM Transmitter , 1080P Wireless AV Sender 500 Meters NLOS Hidden Manpack
Receiver parameter:

Frequency 170-900MHz, VHF&UHF
Bandwidth 2/3/4/5/6/7/8MHz (option)
RF input level -94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance 50Ω
RF input type N type
Modulation COFDM
Constellation QPSK,16QAM,64QAM(adjustable)
FEC 1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier 2k
Guard Interval 1/32,1/16,1/8,1/4(adjustable)
Video coding MPEG-2/H.264MP@ML
Screen 4:3 16:9
Video resolution 1080P@4MHz
Audio output Stereo unbalance 300/ 200mv
AV output 2 Audio output + 2 Video output. SDI/HDMI/ASI
Working voltage AC220V/DC12V ＜1A
working temperature -20℃～+50℃
Dimension 480*260*45(1U chassis)
Weight 1.5kg

Small HD COFDM Transmitter , 1080P Wireless AV Sender 500 Meters NLOS Hidden Manpack

Our Service:

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
