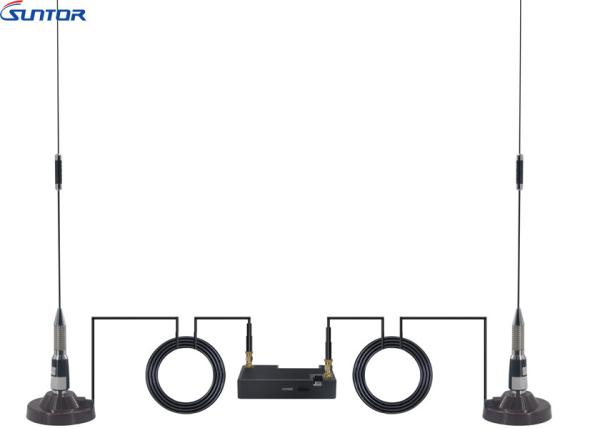

GSM Radio links for HD video transmission for non line of sight range
GSM Radio links for HD video transmission for non line of sight range
GSM Radio links for HD video transmission for non line of sight range
GSM Radio links for HD video transmission for non line of sight range
Specifications
Brand Name :
SUNTOR
Model Number :
ST9500MH
Certification :
FCC, CE, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1 set
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000 set/ month
Delivery Time :
7-15 days
Packaging Details :
Plastic Box
Price :
Negotiation
Modulation :
COFDM
Bandwidth :
24/6/8Mhz
Encryption :
AES256
Video Input :
High Definition Multimedia Interface/SDI/CVBS
Frequency :
300-860Mhz
Tx Weight :
130g
Tx Antenna :
5dbi
Latency :
200ms
Description

GSM Radio links for HD video transmission for non line of sight range

Data Sheet

COFDM technology offers robust digital video/data transmission in the most demanding scenarios of severe multi-path or no line-of-sight. Through innovative design techniques, we have eliminated the handicap that plagued this technology – high power consumption. The result is a higher RF output transmitter with less than half the DC power consumption of the competition. Avalon Rf has tested the wireless link to be robust up to 500meters at 300-860MHz with normal 1000mw power output in airborne applications. This winning combination is available in the frequency range of 450 Mhz to 860MHz.

Features

• Compact design
• Easily integrated into existing or new equipment
• Range 1kM+NLOS using dual Rx antennas
• Point to Point/Multipoint/Repeater operating modes
• Hardware-based 256-bit AES encryption
• Packet prioritisation
• Rechargeable battery support
• RSSI indication mode
• Low power consumption
• Direct connection for High Definition Multimedia Interface/SDI and CVBS cameras
• Automatic config and connect

Specifications
RF Output 1W (+30 dBm)
RF Channels 16, configurable through PC GUI
Video SDI/High Definition Multimedia Interface formats auto detected; HD -1080p60, 1080p30, 1080p25, 1080i30, 1080i25, 720p60, 1080Psf24, 1080Psf23.97 and 1080p/25Psf; SD- 480i/30 and 576i/25
CVBS: PAL/NTSC
Encoding H.264 (MPEG4, Part 10) AVC
Audio Embedded audio in High Definition Multimedia Interface/SDI/HD-SDI input or stereo line-level analog audio input (600bal)
Inputs BNC (75 ohm) for HD-SDI/SDI and Composite Video through 4 pin LEMO power connector
User Data RS232 interface, 1200-115K Baud, set through GUI (option –D)
User Interface Serial Com port, HD/Composite SD selection, Audio source selection & Video presence indicator
Power 9 – 20V DC input
Size 75*55*35mm
Weight 0.3 lbs (130 gms)

Package List

Item Qty
Transmitter 1Unit
Receiver 1Unit
Tx Antenna 1Unit
Rx Antenna 1Unit
High Definition Multimedia Interface Cable 2Pcs
CVBS Cable 2Pcs
SDI Cable 1Pcs
Antenna Cable 2Pcs
Power Cable 2Pcs
Package Box 1Unit

GSM Radio links for HD video transmission for non line of sight range

GSM Radio links for HD video transmission for non line of sight range
