Long ragne Mini Wireless HD Video Transmitter for Hidden Camera Monitoring
Long ragne Mini Wireless HD Video Transmitter for Hidden Camera Monitoring
Long ragne Mini Wireless HD Video Transmitter for Hidden Camera Monitoring
Long ragne Mini Wireless HD Video Transmitter for Hidden Camera Monitoring
Long ragne Mini Wireless HD Video Transmitter for Hidden Camera Monitoring
Long ragne Mini Wireless HD Video Transmitter for Hidden Camera Monitoring
Long ragne Mini Wireless HD Video Transmitter for Hidden Camera Monitoring
Long ragne Mini Wireless HD Video Transmitter for Hidden Camera Monitoring
Specifications
Brand Name :
SUNTOR
Model Number :
ST6200TPS-HD
Certification :
FCC, CE, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1 set
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000 set/ month
Price :
Negotiation
Packaging Details :
Plastic Box
Delivery Time :
3-5 Days
Modulation :
COFDM
Frequency :
300MHz-2GHz
Transmit power :
100～400mW adjustable
Resolution :
1080P
NLOS range :
>400 meters
LOS range :
1-8 km
Video interface :
High Definition Multimedia Interface/ SDI/ CVBS
Weight :
175g
Description

Long ragne Mini Wireless HD Video Transmitter for Hidden Camera Monitoring

1. Product Introduction:

ST6200TPS-HD mini portable HD wireless video transmission equipment is new generation of real-time broadcast-quality high-resolution image transmission system. It adopts the current leading COFDM modulation technology and relative narrow-band frequency(2/2.5//4/8MHz), it has the strong anti-jamming capability, overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques, to realize high-speed photography and real-time transmit high quality image in NLOS or complicated working environment.

2. Product features:

Picture quality reach to Full HD via H.264 encode & decode, of course the picture quality downward compatibility to 1080I, 720P or 480P. Support digital interface and analog interface, like HD-SDI & High Definition Multimedia Interface and simulation port CVBS. The advantage of the production include high resolution & contrast ratio, good color performance.Long ragne Mini Wireless HD Video Transmitter for Hidden Camera Monitoring

Transmitter’s external interface part
Working frequency 300MHz～2GHz
Output powe 100～400mW adjustable
Modulation COFDM
Channel bandwidth 2/2.5/4/8MHz adjustable
Error correcting mode FEC@Viterbi (1/2, 2/3, 3/4)
Guard Interval 1/32, 1/16, 1/8, 1/4
Encryption mode manual operation AES double encryption
System part
Standard H.264
Code stream 1.5Mbps～12Mbps
BER ≤10-6
Transmission distance LOS: 1-8KM, air to ground: 8-20km, NLOS: >400meters
Usage mode portable, aerial transmission, hidden transmission and short range NLOS av transmission
Audio and video part
Compression format H.264
Audio input igital HD-SDI,analog CVBS complex standard 2.5 and 3.5 double input
Image resolution HD1080P(1920*1080), compatibility 1080I,720P,480P and standard resolution
Image frame rate 30 frame/s
AV input physical interface digital HD-SDI
Video input physical interface standard 2.5 interface, standard 3.5 interface
Audio input physical interface standard 2.5 interface, standard 3.6 interface
Others
Batterypowered: DC 7.2V/140mA or external DC 7-16V
Built-in LCD display the parameters and adjust parameters function, the display will shut up within 3 seconds
Power switch ON/OFF
Size 100*58*18mm(L×W×H)
Weight 175g

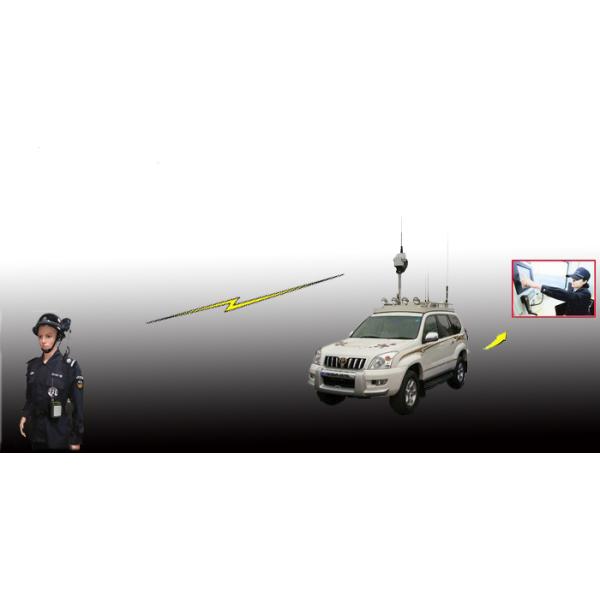

Covert Surveillance Systems Application

Long ragne Mini Wireless HD Video Transmitter for Hidden Camera Monitoring
