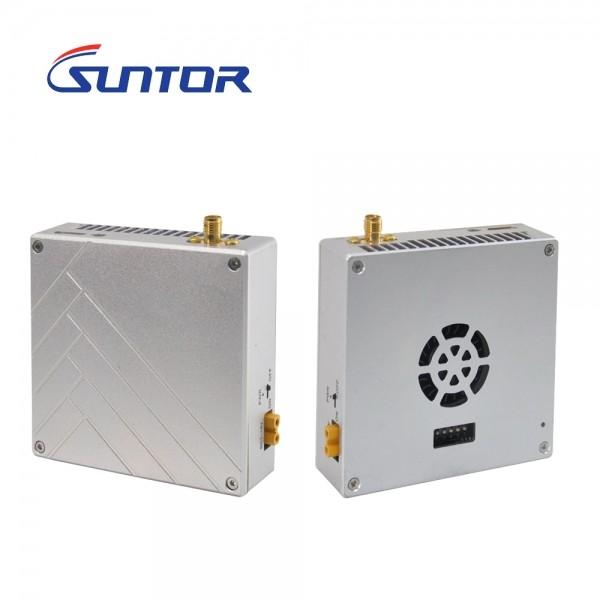

CD30HPT Drone Video Transmitter & Receiver Specifi...

Introduction:
This is an exclusive design COFDM transmitter and receiver. Has a character of low power, small dimension on the transmitter, and we provide more adequate considerations to make it more intuitive and natural.Use H.264 + H.265 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation, provide high quality of picture in resolution 1080P, short latency.

This special designed system is for UAV long range distance transmission , it is also popular to use in other fields for live broadcast video audio transmission.

Features

• Ultra-high Resolution Image: Independently developed CABAC (h.264) coding&decoding technology
• Ultra-distance: Air to ground 30km
• Ultra-low Delay: 12-25ms
• Transmission Mode: PTP, PTMP for LOS and NLOS distance
• Transmission Signal: Video, Audio and data(RS232)

Video

• High Definition Multimedia Interface input/output and support SBUS,PPM,TTL
• Image & data transmission, combined multiple radio links into one radio link to transmit and receive
• 1080p 60fps &30fps / 720P 60fps resolution adjustable
• TPlayer for ultra low delay decoding, the delay 12-25ms
• Support 100Mbps Ethernet to output

Communication

• Support the 2.4GHz(2.402 - 2.478 GHz) TDMA OFDM
• Support point to point, point to multipoint.
• Radio communication mode: reconnection time < 1 ms.
• Encryption: Communication Channel Encryption
• Antenna: Omnidirectional antenna can increase the sensitivity of signal reception

Suntor’s HPT Series tiny video transmitters offer many innovative features, are designed to withstand harsh environments, and are ideal for Drones, UAV, and other applications requiring high efficient, high quality video/data transmission in a compact, rugged package.

HPT transmitters may be configured with fixed RF output powers of 400 mW, 1 Watt, or 1.5 Watts. Transmitters may be optionally configured with remotely selectable power levels utilizing any of these three power levels. Suntor’s proprietary power-leveling circuit ensures level output power over the entire frequency band.

Parameters
