Specifications
Model Number :
CD30NMT-V3
Place of Origin :
China
Brand Name :
SUNTOR
Certification :
FCC, CE, RoHS
MOQ :
1 set
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000 set/ month
Packaging Details :
Carton
Modulation :
BPSK/QPSK/16QAM/64QAM
Frequency :
1428~1448MHz(Standard)
Power :
DC12V Power Supply
Bandwidth :
5MHz/10MHz/20MHz
Security :
AES128 Encryption
Dimension :
114×76×19.5mm(Air)
Weight :
180g(Air)+450g(Ground)
Description

Up to 24Mbps Data Rate with COFDM Transmitter for High-Efficiency Wireless Communication

1. Introduction

The CD30NMT-V3 sky-end device is matched with the ground-end device to realize long-distance two-way wireless video, audio, and data transmission. The maximum air-to-ground transmission distance can reach more than 50km. The communication method can meet point-to-point two-way communication, and can also realize point-to-multipoint star networking communication.
The device provides multiple service interfaces, including 1 Ethernet port, 1 transparent TTL serial port, and 1 transparent RS232 port. It has the characteristics of small size, light weight, easy installation, and easy use. The structural form can be customized according to the use scenario. It is very suitable for wireless data transmission scenarios such as unmanned aircraft, unmanned ships, unmanned vehicles, and robots.

2. Feature

  • 180 Grams Weight
  • Point to Multi-Point Mode
  • Dual Antenna MIMO Design
  • Up to 24Mbps Data Rate
  • 1.4G / 2.4GHz Frequency Range Optional
  • AES128 Security Protection
  • 30KM Air-to-Ground Transmission Distance

3. Specification

Wireless
Technology TDD-OFDM/MIMO/1T2R
Modulation BPSK/QPSK/16QAM/64QAM
Data Rate 24Mbps@10MHz(Peak)
Frequency Range 1428~1448MHz(Standard)
2410~2480(Optional)
810~820Mhz(Optional)
Bandwidth 5Mhz/10MHz/20MHz
TX Power 2W
RX Sensitivity -99dBm@5MHz

System
Serial Port 1 RS232 + 1 TTL
Ethernet Port 1 Ethernet Port
Security AES128 Encryption
Power DC12V Power Supply ≤12W @ DC12V Power Consumption(Air)

Interface
RF Antenna SMA*2
Serial Port Interface JST*2
Ethernet Interface JST*1
Config Interface JST*1
USB Interface JST*1
Power Input JST*1

Physical
Dimension 114x76x19.5mm(Air)
Weight 180g(Air)+450g(Ground)

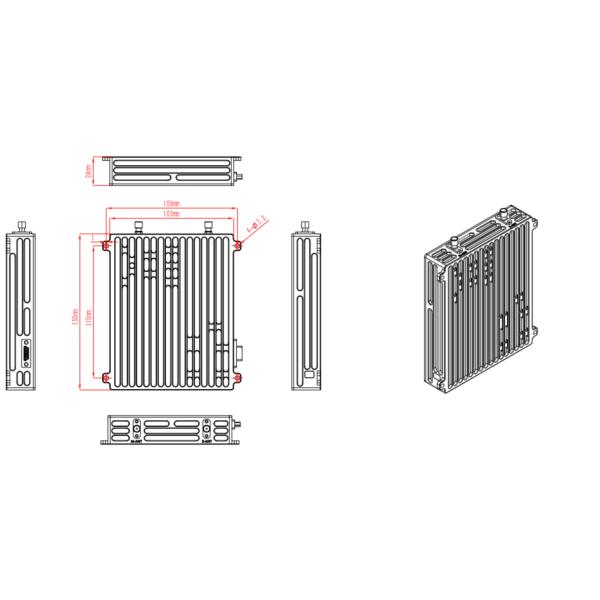

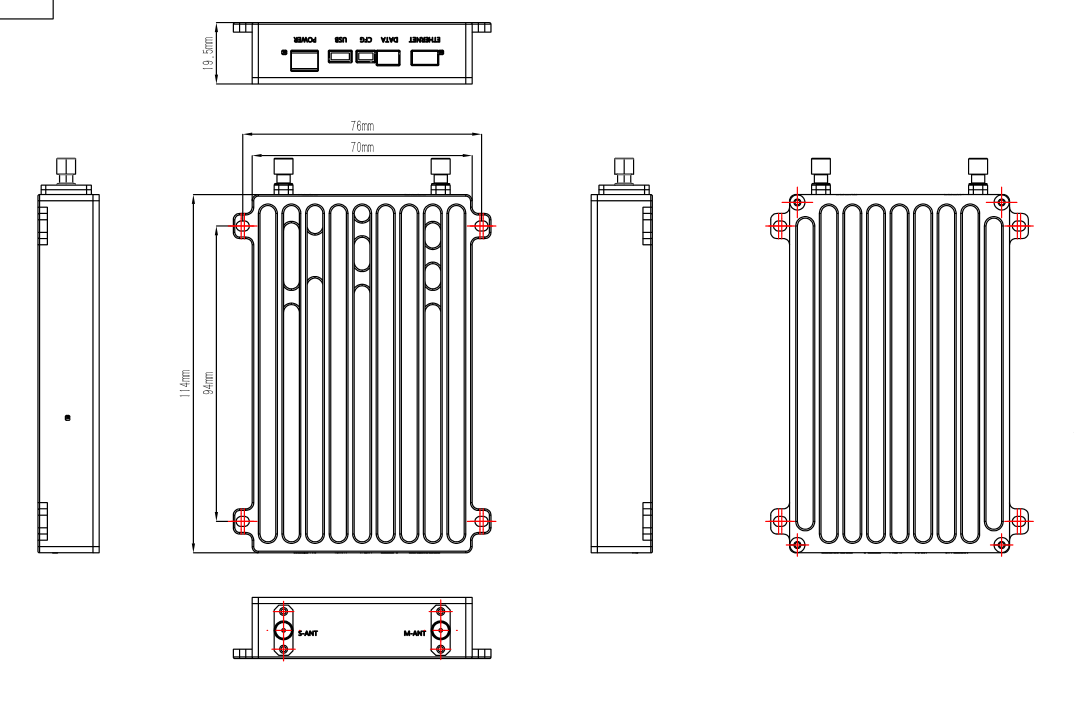

4. Diagram

CD30NMT-V3 Point-To-Multi-Point Mode Supported By COFDM Transmitter For Versatile Communication

CD30NMT-V3 Point-To-Multi-Point Mode Supported By COFDM Transmitter For Versatile Communication

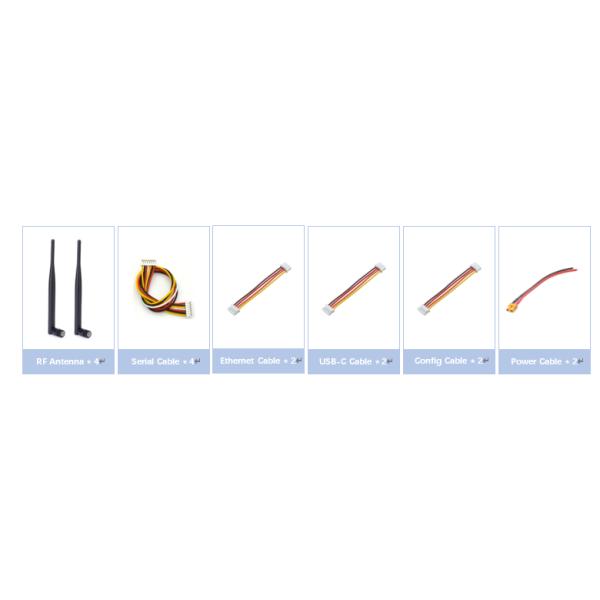

5. Accessories

CD30NMT-V3 Point-To-Multi-Point Mode Supported By COFDM Transmitter For Versatile Communication
