Specifications
Model Number :
CD30HPT
Place of Origin :
Shenzhen, China
Brand Name :
SUNTOR
Certification :
FCC, CE, RoHS
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Plastic Box
Delivery Time :
7-15 days
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000 set/ month
modulation :
COFDM
RF Transmitted Power :
1500mW
Distance :
30km
Latency :
15-30ms
Power supply :
DC 7- 18V (DC 12V advised)
Operating temperature :
-40°C ~+85°C
Transmission Rate :
3-5Mbps
Weight :
Tx: 93g, Rx: 148g
Description

Lightweight 1500mW ethernet High Definition Multimedia Interface COFDM HD video transmitter support Pixhawk Autopilot


CD30HPT Drone Video Transmitter & Receiver Specifi...

Description


The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.

Main Features:

  • Frequency: 2.4GHZ(2.400-2.482GHz)
  • Ultra-high Resolution Image: Independently developed CABAC (h.264+h.265) coding&decoding technology
  • Video: Video sources self-adaptive(Max 1080P), Support High Definition Multimedia Interface Input/output
  • Ultra-distance: 5km(ST5HPT)/10km(ST11HPT)/30km(CD30HPT)/ 50km(ST50HPT)/ 100km(ST100HPT)
  • Transmission Signal: Support SBUS(Futaba)/PPM/TTL/RS232/485
  • Support Video and Duplex Data (Compatible with different brand Fly control system and RC in the market)
  • TTL bidirectional serial port
  • Ultra-low Delay: ≤12-25ms
  • 100Mbps Ethernet for option
  • Output Video to PC and monitor display simultaneously.
  • Working Temperature: -40℃~+85℃

Application:


CD30HPT wireless video transmitters are designed to withstand harsh environments and are ideal for Drones, UAS, UAV, UGV, , and other applications requiring efficient, high quality video/audio/data transmission in a compact, rugged package.

Parameters

Frequency 2.4GHz(2.400-2.482GHz)
Wireless Fault-tolerant LDPC FEC
RF Transmitted Power 1.5Watts
Power Consumption TX: 12Watts/RX: 5Watts
Distance 30km
Bandwidth 2/4/6/8Mhz
Video Input/output Interface On board High Definition Multimedia Interface mini TX/RX or FFC convert to High Definition Multimedia Interface-A TX/RX
Bitrate and channel adjustment mode DIP or SPI2MCU
Antenna 1T1R/ Tx: 5db(Omni Antenna) Rx: 10db(Omni Antenna)
Video Color Space Default 4:2:0 optional: 4:2:2/4:4:4
Video Compressed Format AVC adds H.265 feature TS stream
Adjustment mode of bitrate Software adjustment
Communication Channel Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Mode point to point
Start-up time 25s
Latency 15-30ms
Transmission Rate 3-5Mbps
Receive Sensitivity -100dbm@4Mhz, -95dbm@8Mhz
Two-way function Support video and duplex data simultaneously
Data Support SBUS/PPM/TTL/MAVLINK

Interface

(same interface on TX & RX)

 1. 1080P 60 High Definition Multimedia Interface Mini RX x1
2. 100Mbps Ethernet to USB / RJ45 on Windows x2

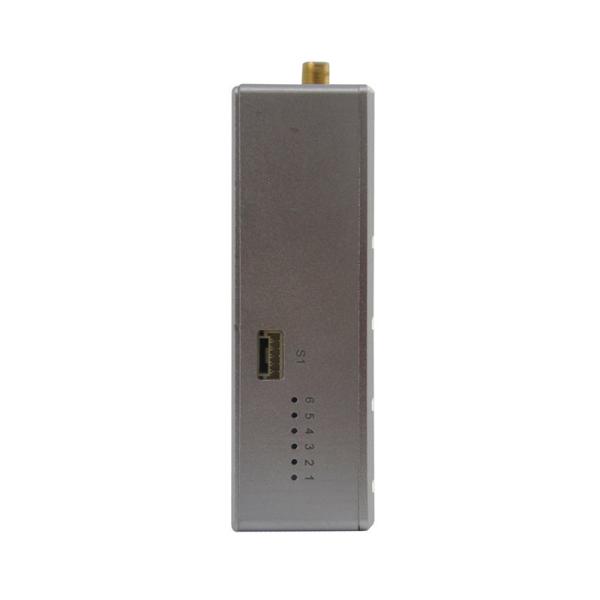

3. S1 TTL bidirectional serial port x1
4. Power Input (DC7-18V) x1
Indicator Light High Definition Multimedia Interface input/output indicator light
Transmitting and receiving indicator light
Video board indicator light
Power light
High Definition Multimedia Interface High Definition Multimedia Interface mini/Flexible Flat Cable(FFC)
Appearance Design CNC technology/double aluminum alloy shell with waterproof design
Power supply DC 7- 18V (DC 12V advised)
Temperature Range

Operating temperature:-40°C ~+85°C

Storage temperature:-55°C ~ +100°C
Dimension Tx: 73x48x20mm/ Rx: 72×73×24mm
Weight Tx: 93g, Rx: 148g
