Specifications
Brand Name :
SUNTOR
Model Number :
CD30HPT
Certification :
FCC, CE, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000 set/ month
Delivery Time :
7-15 days
Packaging Details :
Plastic Box
Modulation :
COFDM
Security :
AES128 Encryption
Bandwidth :
4MHz/8Mhz
Data Rate :
3 ~ 5Mbps
Latency :
15 ~ 30ms
Weight :
146g
Size :
76*73*23mm
Description

COFDM Transmitter for UAV with High Sensitivity and Compatibility for Controllers

CD30HPT Drone Video Transmitter & Receiver Specifi...

Introduction

CD30HPT is a mini HD Video and Duplex data transmission COFDM system for UAV. It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 30km) with double tx and rx antennas design and low delay(15-30ms) transmission. The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.

Features

  • Working Temperature: -40℃~+85℃

  • Support TTL/232/MAVLINK TELEMETRY

  • Double Serial Ports for bi-directional Data

  • Offering control, telemetry & payload in, Video Transmission in 1 RF channel

  • Video: Video sources self-adaptive(Max 1080P/60), Support HDMI Input/output

  • Support Video and Duplex Data

  • Compatible with different brand flight controller and remote controller

  • 100Mbps Ethernet for option

  • Matching with our TPlayer software (low latency software decoder) to display video on PC.

  • Omni Antenna for Tx and Rx

Application

CD30HPT Mini HD COFDM Transmitter for Long Distance UAV Communication

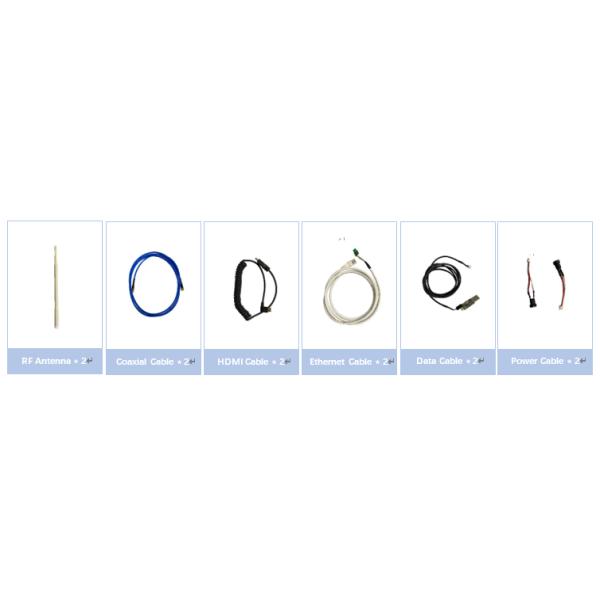

Accessories

CD30HPT Mini HD COFDM Transmitter for Long Distance UAV Communication

System parameter
Frequency 2.4GHz(2.402-2.482GHz)
Error Detection LDPC FEC/Video H.264/265 Super Error Correction
RF Transmitted Power 2Watts
Power Consumption TX: 19Watts/RX: 6Watts
(air to ground) 30km
Bandwidth 4/8MHz
Video Input/output Interface On board HDMI mini TX/RX or FFC convert to HDMI-A TX/RX
Bitrate and channel adjustment mode DIP or SPI2MCU
Antenna 1T1R/ Tx: 4db(Omni Antenna) Rx: 8db(Omni Antenna)/14dbi Directional Antenna
Video Color Space Default 4:2:0 optional: 4:2:2/4:4:4
Video Compressed Format AVC adds H.265 feature TS stream
Adjustment mode of bitrate Software adjustment
Communication Channel Encryption AES 128
Ethernet Protocol TCP/UDP
Video Record By software
Transmission Mode point to point
Start-up time 25s
Latency 15-30ms
Receive Sensitivity -100dbm@4Mhz-95dbm@8Mhz
Two-way function Support video and duplex data simultaneously
Data Support TTL/MAVLINK

Interface(same interface on TX & RX)

 1. 1080P 60 HDMI Mini RX x1
2. 100Mbps Ethernet to USB / RJ45 on Windows x1
3. S1/ S2 TTL bidirectional serial port for data/control/playload/MAVLINK/TELEMETRY
4. Power Input (DC7-18V) x1

Indicator Light

 HDMI input/output indicator light
Transmitting and receiving indicator light
Video board indicator light
Power light
HDMI HDMI mini/Flexible Flat Cable(FFC)
Appearance Design CNC technology/double aluminum alloy shell with waterproof design
Power supply DC 7- 18V (DC 12V advised)
Temperature Range Operating temperature:-40°C ~+85°CStorage temperature:-55°C ~ +100°C
Dimension Tx/ Rx: 76×73×23mm
Weight Tx/ Rx: 146g
