Unmanned Car IP Mesh Network AES128 Ethernet Wireless Transceiver
Unmanned Car IP Mesh Network AES128 Ethernet Wireless Transceiver
Specifications
Brand Name :
Suntor
Model Number :
ST9633NC
Certification :
CE RoHS
Place of Origin :
Shenzhen China
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
1000SET/Month
Delivery Time :
15-20days
Packaging Details :
Aircasing
Fre :
1.4G
Range distance :
200-500m NLOS
product name :
ip Ethernet mesh network
Relink-time :
8s
Latency rate :
8-20ms
RF Power :
1/2 Watts
RF Rate :
70Mbps
Encrypted :
AES128/256
Description

Unmanned Car IP Mesh Network AES128 Ethernet Wireless Transceiver

Ethernet wireless transceiver radio IP Mesh Video Transmitter for Unmanned Car

IP Mesh Video Transmitter

Here download data sheet in pdf file

Specification of ST9633NC.pdf

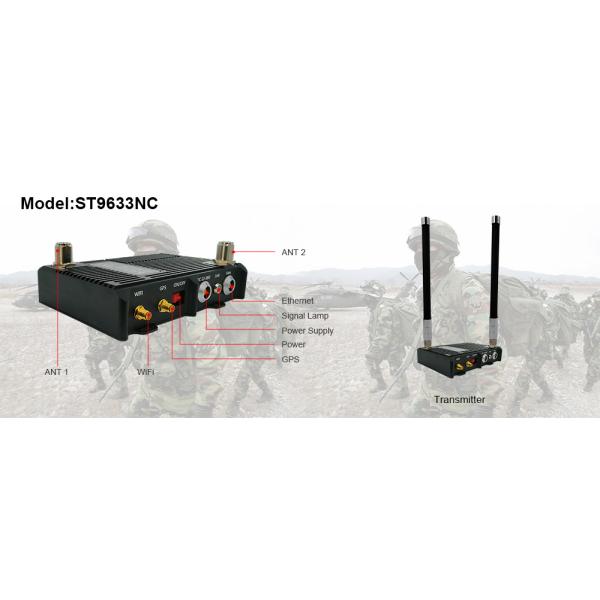

SUNTOR module ST9633NC is the 200-500meters range of design for Inspection UGV ground control vehicles, the frequency is 1.4G Video Link for a car.
ST9633NC Airborne meshnetworking equipment,The equipment is compact in design and
exquisitely designed, which can be installed either in front or in reverse, which is convenient for
installation. It is especially suitable for scenarios with lightweight networking requirements such as
drones, robots, and unmanned vehicles. The equipment quickly self-organizes and heals, and
automatically multi-hop relay, which can provide voice group call, video backhaul, data relay and
other multimedia interactive services for unmanned application systems to achieve efficient
collaboration. Equipment working frequency:512~582MHz,570~590(U band),1240~1300MHz,
1428~1448MHz(L band),
It has voice intercom function, GPS/Beidou positioning function, and also
supports wifi coverage.

The system do not have fixed center node, all part of radios can be a center node, it can self-managing all of members radios from different locations. It applied for , robot, maritime uav, mapping drones, oil and gas, green energy inspection.
If in ground to ground, the range would be 200-500meters in NLOS.
Product Application for IP Mesh Video Transmitter:
Defense/Mapping/Aerial Surveys and Inspections Logistic Delivery/Precision Agriculture Energy Oil&Gas/Geological Inspection
Product Key Features for IP Mesh Video Transmitter:

Range: 200-500meters NLOS in ground to ground,

1-5km open area in ground to ground, ＞20km in air to ground.

Frequency: Regular L Band 1.4GHz(1427.9-1447.9MHz),

Customized 512~582MHz, 570~590MHz, 1240~1300MHz

Mode: BPSK/QPSK/16QAM/64QAM

Data Rate: 70Mbps

Latency: 8-20ms, Relink: 8s

Power: 1W

Receive Sensitivity: -93dBm@5MHz

MESH Node: ＞32

Encrypted: AES128/256

Waterproof: IP65

Bandwidth: 5.0/10.0/20.0MHz

Consumption: ≤24W

Power supply:24V(14V-36V)

Working temperature: -40℃～+75℃

Dimension:202x85x30mm

Device Weight:550g Battery:200g

Range: 300-500meters
Frequency 1.4G(1427.9-1447.9MHz)
Video IP Ethernet
Encryption AES128/256
Laytency 8-20ms
Relink 8ms
Frequency 1W
Working Temperature: (-40℃～+75℃)
Product Components List for IP Mesh Video Transmitter:
1. TNC Antenna x 2pcs
2. Wifi Antenna x 1pcs
3. GPS Antenna x 1pcs
4. Ethernet Cable x 1pcs
5. Power Cable x 1pcs
6. Power Adapter x 1pcs
Unmanned Car IP Mesh Network AES128 Ethernet Wireless Transceiver
