Manpack Radio IP Mesh 1.4G 70Mbps Ethernet Wireless Transceiver
Manpack Radio IP Mesh 1.4G 70Mbps Ethernet Wireless Transceiver
Specifications
Brand Name :
Suntor
Model Number :
ST9633ND1
Certification :
CE RoHS SGS FCC
Place of Origin :
Shenzhen China
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
1000SET/Month
Delivery Time :
15-20days
Packaging Details :
Aircasing
Fre :
1.4G
Range :
40-50km LOS, 200-500m NLOS
Video :
IP Video output
Relink :
8s
Latency :
≤8ms
RF Power :
1 Watts
Rate :
70Mbps
Encrypted :
AES128/256
Description

Manpack Radio IP Mesh 1.4G 70Mbps Ethernet Wireless Transceiver

Ethernet wireless transceiver radio IP Mesh Manpack Video Transmitter

Inspection Mapping Drones UAV video transmitter 40-50km

Here download data sheet in pdf file

Specification of ST9633ND1 .pdf

SUNTOR module ST9633ND1 is the 200-1000meters ground to ground NLOS range of design for Manpack sniper soldiers and Unmanned Car 1.4G UAV Video Link Drone Video Transmitter for drones and for and miltary car.

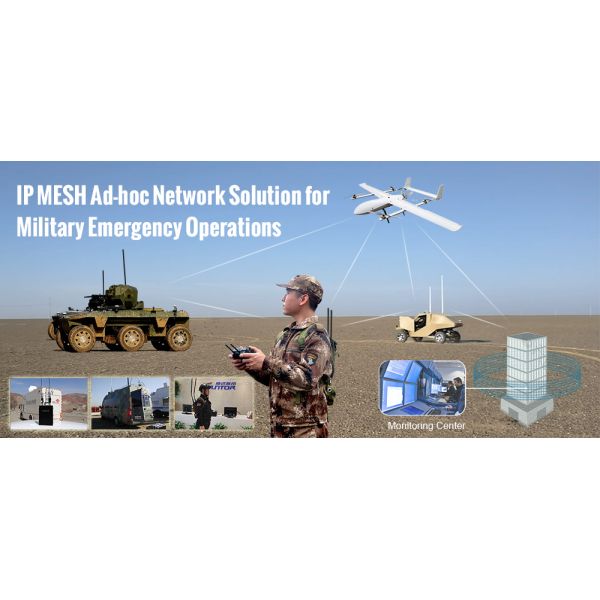

The system do not have fixed center node, all part of radios can be a center node, it can self-managing all of members radios from different locations. It applied for , robot, maritime uav, mapping drones, oil and gas, green energy inspection.
If in ground to ground, the range would be 200-500meters in NLOS.
Product Application for IP Mesh Radios Ethernet wireless transceiver radio:
Mapping Oil gas inspection, harsh environment,Widely used in law enforcement surceillance, mission,
Security & Emergency Response, Mining, Sea Ports, Aerial Surveillance
Manpack Radio IP Mesh 1.4G 70Mbps Ethernet Wireless Transceiver
Manpack Radio IP Mesh 1.4G 70Mbps Ethernet Wireless Transceiver
Product Key Features for IP Mesh Radios Ethernet wireless transceiver radio:

Range: 200-500meters NLOS in ground to ground,

3-5km open area in ground to ground, ＞20km in air to ground.

Frequency: Regular L Band 1.4GHz(1427.9-1447.9MHz),

Customized 512~582MHz, 570~590MHz, 1240~1300MHz

Mode: BPSK/QPSK/16QAM/64QAM

Data Rate: 70Mbps

Latency: 8-20ms, Relink: 8s

Power: 1W

Receive Sensitivity: -93dBm@5MHz

MESH Node: ＞32

Encrypted: AES128/256

Waterproof: IP65

Bandwidth: 5.0/10.0/20.0MHz

Consumption: ≤24W

Power supply:24V(14V-36V)

Working temperature: -40℃～+75℃

Dimension:202x85x30mm

Device Weight:550g Battery:200g

Power supply

24V(14V-36V)

Bandwidth:

5.0/10.0/20.0MHz

Waterproof

IP65

Encryption

AES128/256

Weight

550g

Transmisison

IP Video output

How long range

200-500m in NLOS

Dimension

202x85x30mm

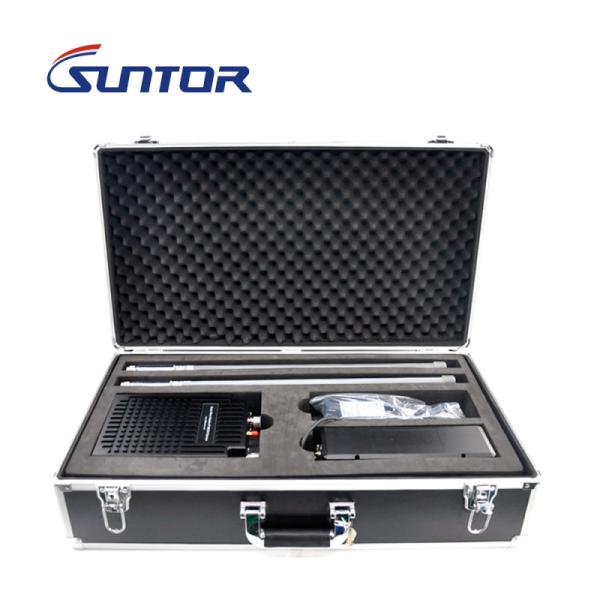

Product Components List for IP Mesh Radios Ethernet wireless transceiver radio:
1.TNC Antenna x 2pcs
2.Wifi Antenna x 1pcs
3.GPS Antenna x 1pcs
4.Ethernet Cable x 1pcs
5.Power Cable x 1pcs
6.Power Adapter x 1pcs
Manpack Radio IP Mesh 1.4G 70Mbps Ethernet Wireless Transceiver
Device Warranty for IP Mesh Radios Ethernet wireless transceiver radio: One year since from the date of parcel received.
