CD100NMT Drone Video Transmitter & Receiver Specif...

1. Fast details of Transmission Data Link

Operation Frequency: 1428~1448 MHz

Bandwidth: 3/5/10/20 MHz

Modualtion mode: QPSK/QAM16/AQM64

Wireless Transmit Power: 10W

Transmission distance: 15/30/80/150KM can be choose.

TWO-Way broadband wireless link device

2. Description of Transmission Data Link

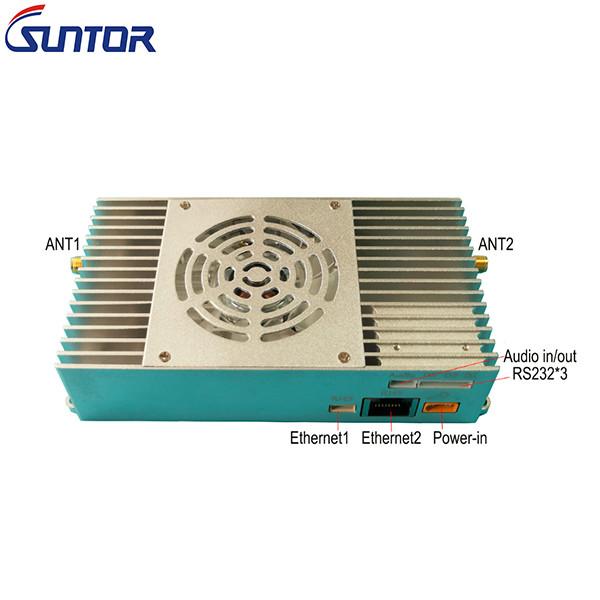

CD100NMT Wireless Link device realize long-distance two-way wireless video, audio, data transmission,The maximum air-to-ground transmission distance can reach about 100km. The ST100NMT device provides multiple service interfaces, including 2 Ethernet ports, 3 serial ports, and audio input and output interfaces.

The data transmission from the central node to the access node is called the downlink, and the data transmission from the access node to the central node is called the uplink. In point-to-point or point-to-multipoint communication.

The device automatically adjusts the wireless transmission rate according to the service data stream it carries, and the smaller the amount of service data it carries, the farther the transmission distance will be under the same conditions. Therefore, when using the device to transmit IP Camera video data, the wireless transmission distance can be improved by setting the appropriate reduction of the IP Camera video encoding bitrate.

3. Specification of Transmission Data Link

4. Application of Transmission Data Link

Use of CD100NMT can realize long-distance two-way wireless data communication, point-to-point two-way communication, and point-to-multi-point star networking two-way communication.

In point-to-multipoint communication, if the communication between the two access nodes must be transferred through the central node, each node is in the same wireless LAN, all access nodes and the central node communication share the wireless working bandwidth, the device will automatically distribute the system rate equally.

6. FAQ

Q1. Can I have a sample order for Transmission Data Link?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: Sample needs 5-7 days, mass production time needs 1-2 weeks,will based on your quantity

Q3. Do you have any MOQ limit for Transmission Data Link?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT.

Q5. Is it OK to print my logo on Transmission Data Link?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6. Except this item,which one can you do?

A6: We also have device for transmission distance for 5/10/15/20/30/50/100KM,and working frequecny is 800MHz/1.4GHz/2.4GHz.

For the inteface,we also have different one for customer choose.
