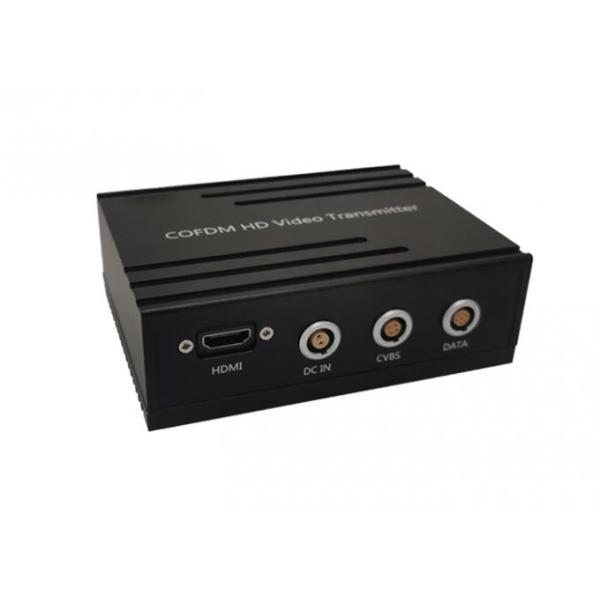

Ultralight COFDM Video Transmitter , 5W Security Wireless Data Link With Serial Port
Ultralight COFDM Video Transmitter , 5W Security Wireless Data Link With Serial Port
Ultralight COFDM Video Transmitter , 5W Security Wireless Data Link With Serial Port
Ultralight COFDM Video Transmitter , 5W Security Wireless Data Link With Serial Port
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HD5000LW
Place of Origin :
China
MOQ :
1 Set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 works days
Packaging Details :
International packing
Product Name: :
COFDM Video Transmitter
RF Power: :
1-5W (adjustable)
Dimension: :
140*100*43mm
Serial Port: :
RS232/TTL
AV Input: :
HDM-I/CVBS
Carrier :
2K 8K
Video coding :
H.265/H.264/MPEG-4
Video resolution :
1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
Description

Ultralight COFDM Video Transmitter 5W Security Wireless Data Link with Serial Port

Description:

DS-HD5000LW lightweight UAV video data link is an ultra-thin, ultra-small wireless communication device with high brightness and low power consumption. It can transmit high quality full 1080P HD video, audio and data even though there are some building blocks or high-speed mobile shooting. support AES 128/256 bit encryption and H.265/H.264 video compression, HD-MI or SDI and CVBS HD and SD video inputs.

DS-HD5000LW widely used in UAV aviation filming, UGV/Robot, military, covert investigation, image monitor and real-time wireless video transmission and so on. With four holes at the bottom of the transmitter for fixed installation.

Parameters:

Frequency 300-900Mhz (option), or other band customized
Modulation COFDM
Consumption <40W
Encryption AES 128 bits
Constellation QPSK(4QAM),16QAM,64QAM
FEC 1/2 2/3 3/4 5/6 7/8
Guard Interval 1/32 1/16 1/8 1/4
Carrier 2K,8K
Bandwidth 2/3/4/6/7/8MHz (option)
Video rate 200kps~20000kps (adjustable)
RF power 1~5 watt (adjustable)
Video input HD-MII, CVBS, AHD, HD-SDI (option)
Video coding H.265/H.264/MPEG-4
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
Transmission distance 60~100km from UAV to ground station; 3km NLOS on ground
Working voltage DC12V
Working Temperature -20℃ -- +55℃

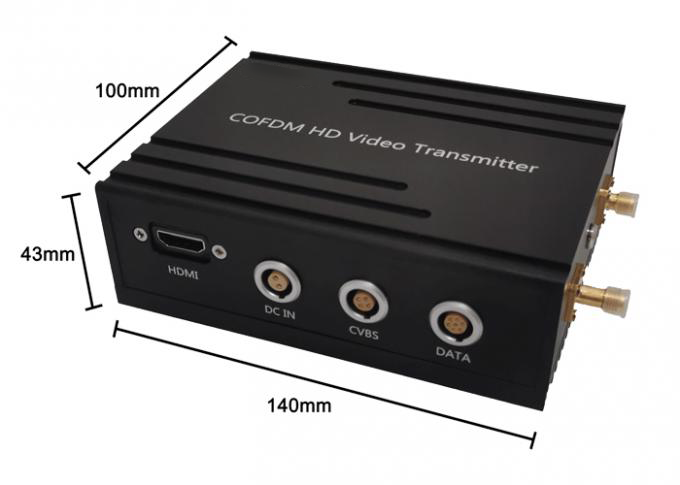

Dimension 140*100*43mm
Weight 600g
Box colour Black
Antenna port N type

Feature:

● COFDM modulation technology ensure the stability of signal;

● Support FULL HD video quality,1080i/P@30fps;

● Built-in with HD-MI or AHD ports;

● Provide AES128 encryption for video safety;

● It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz;

● 1-5W rf power adjustable;

● Low delay time;

● Widely used in helicopter shooting, Live broadcast and etc…

Ultralight COFDM Video Transmitter , 5W Security Wireless Data Link With Serial PortUltralight COFDM Video Transmitter , 5W Security Wireless Data Link With Serial PortUltralight COFDM Video Transmitter , 5W Security Wireless Data Link With Serial Port

Our Service:

  • One-stop ODM/OEM solution;
  • 24-hour technical support;
  • Lifelong maintenance (Replacement parts will be charged after a year);
  • Provide professional system design and construction;
  • You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area for over 20 years, we are the source.
