Strong shock resistance COFDM wireless video audio receiver other security & protection products
Strong shock resistance COFDM wireless video audio receiver other security & protection products
Strong shock resistance COFDM wireless video audio receiver other security & protection products
Strong shock resistance COFDM wireless video audio receiver other security & protection products
Strong shock resistance COFDM wireless video audio receiver other security & protection products
Strong shock resistance COFDM wireless video audio receiver other security & protection products
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDR50
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Place of Origin: :
China
Modulation: :
COFDM 2K QPSK
Frequency bandwidth: :
2/2.5/4/8MHz(adjustable),4/8MHz is for HD system
Video decoding standard: :
H.264/MPEG-4 double decoding self-adapted
Frequency Output range: :
3000-4400MHz(option)
Carrier: :
2K
Video output: :
BNC *2
Description

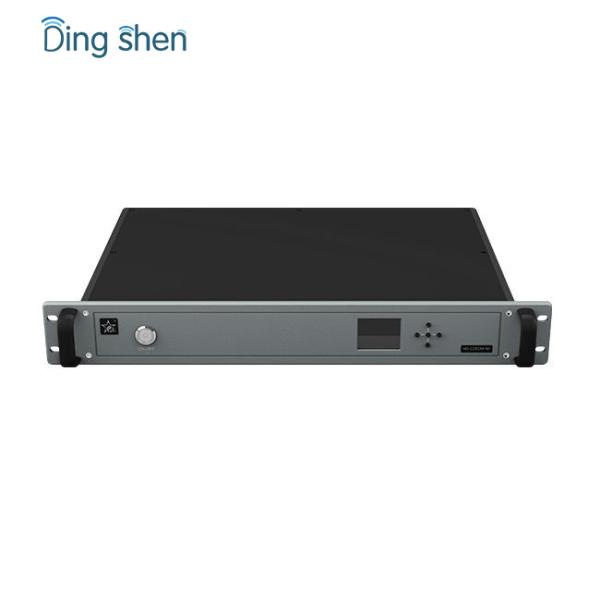

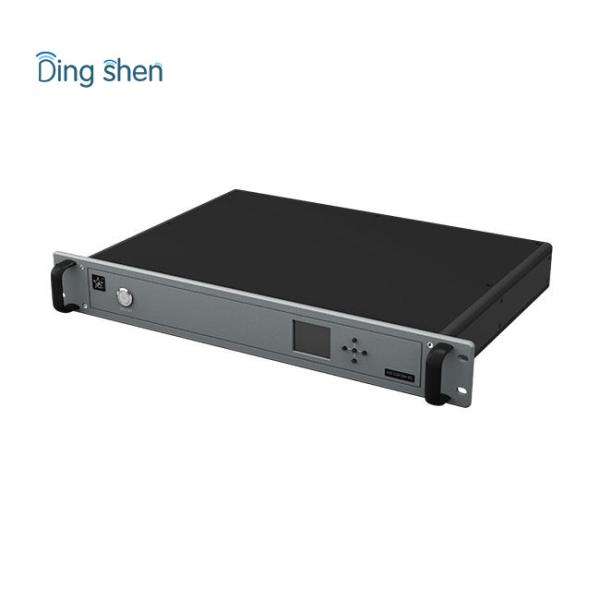

DS-HR50 is a vehicle-mounted high-definition H.264 COFDM wireless video audio receiver, standard 1.5U rack designed, simple and efficient to use control panel. Support output video (including HD and SD resolution) audio signal simultaneously.It has the strong anti-jamming capacity,overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques,to realize high-speed photography and real-time receive high quality image in NLOS(Non-Line-of Sight) or complicated working environment.Easy to place it in Vehicle and room for checking video.

Strong shock resistance COFDM wireless video audio receiver other security & protection products

Features:

1. H.264/MPEG-4 video compression

2. Support both HD 1080P and 720P SD resolution

3. Working well in Non-line of sight (NLOS) high-speed mobile transmission

4. Digital display panel operation and simple operation

5. Standard 1.5U chassis, easy to place in vehicle/room.

6. Aluminium alloy material design, dust-proof , dampproof,shockproof and shock resistance

Specification:

Power supply
Working voltage AC220V
Working current 5.5A@DC12V
AV receiving
Frequency Output range 3000-4400MHz(option)
Frequency bandwidth 2/2.5/4/8MHz(adjustable),4/8MHz is for HD system
Modulation COFDM
Encryption AES128/256bits
Video decoding standard H.264/MPEG-4 double decoding self-adapted
Video output BNC *2, HDMI*1
Video resolution 1920*1080 60i/59i
Audio output BNC, Stereo L/R audio channel
HDMI output SMPTE 425M(Level A and Level B),SMPTE 424M, SMPTE292,SMPTE 259M-C ,SMPTE 272M,SMPTE 299M
Input amplitude mV 800±80
Analog audio
Sensitivity -1050dBm
Audio format Stereo L/R audio channel
Encoding
Audio encoding MPEG1 Layer2

Video resolution

 Minimum 1280*720 50i
Maximum 1920*1080 60P
Video coding H.264
Format YcbCr@1080i/1080P
Environment
Working Temperature -25℃~55℃
Storage Temperature -40℃~70℃
Appearance
Dimension 430*310*65mm
Weight 3.5kg
