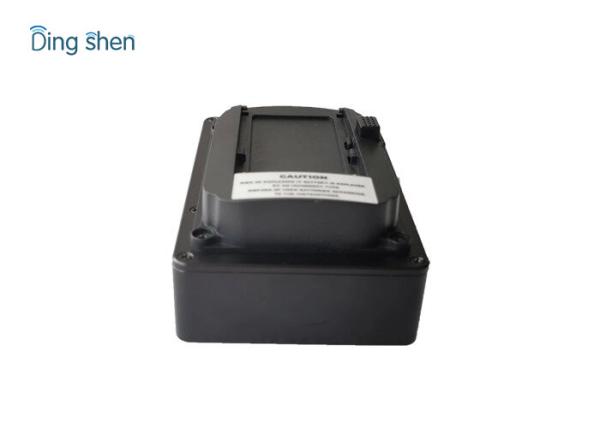

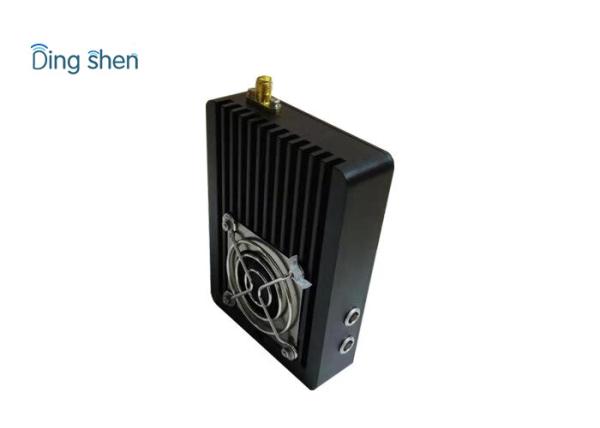

Lightweight Micro HD UAV Video Transmitter H.265 Drones Transmission System
Lightweight Micro HD UAV Video Transmitter H.265 Drones Transmission System
Lightweight Micro HD UAV Video Transmitter H.265 Drones Transmission System
Lightweight Micro HD UAV Video Transmitter H.265 Drones Transmission System
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT1W
Place of Origin :
China
MOQ :
1 Set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 works days
Packaging Details :
International packing
Product Name: :
Micro UAV Video Transmitter
Frequency: :
300~900MHz (other Frequency Customized)
Power: :
DC12V/1.5A
Modulation: :
COFDM
Encryption: :
AES 128/256 Bits
Weight: :
133g
Description

Lightweight Micro HD UAV Video Transmitter H.265 Drones Transmission System

Description of mini UAV Video link:

DS-HDT1W small UAV video transmitter is a micro full HD COFDM video transmitter, specially designed for UAV, UGV and body-worn use. It is a rugged,miniature,high definition digital video transmitter ideal for long range video and data control purpose. DS

-HDT1W transmitter is in full HD resolution with HDM-I input for HDM-I camcorder connection, and data serial port (RS485/RS232/TTL) for two-way data transmission.

The increased compression and efficiency of the H.264/H.265 encoder offers users additional range with the added benefit of small size, low latency and low power consumption.In particular, COFDM provides robust,secure and reliable video transmission over long ranges.And its great security of the transmission can be ensured using the optional internal AES user defined encryption from end to end.

Specification of UAV video data link:

Voltage DC12V
Current 600mA
AV input

HDMI: support

HD1080P/1080I,720P,576,480;
Data serial port (option) RS485/RS232/TTL, two-way communication
Frequency 300~900MHz (optional); other frequencies customized
Bandwidth 2/2.5/4/8MHz(adjustable)
RF power 1 Watt (30dBm)
Encryption AES -user defined password
Modulation COFDM,2K,QPSK
Constellation QPSK,16QAM,64QAM
Carrier 2K,8K
Flatness Full band≤2dB,8MHz≤0.5dB
FEC 1/2,2/3,3/4,7/8
Guard Interval 1/32,1/16,1/8,1/4
Video Compression H.265/H.264/MPEG-4
Resolution 720P,1080i/1080P@60fps
Parameter control method User can set up the related parameters by the control buttons
Built-in small LCD display parameters, touch screen setting parameters
Power switch ON/OFF simple operation
CNR(weighting) ≥58 dB
Sloping field SNR ≥50 dB
RF Interface SMA
Video formats PAL/NTSC(self-adaption)
Low latency 200ms
Working temperature -20℃～75℃
Dimension 100*60*16mm
Weight 133g

Features of lightweight digital video transmitter:

* COFDM modulation;

* Small size, lighter and low power consumption;

* Full HD video resolution, H.264/H.265 compression;

* inbuilt with HDM-I and two- way data serial port;

* Heat dissipation with aluminum case;

* Great security by AES user defined encryption;

* Ideal for UAV / UGV and hidden mission use;

* Low latency.
