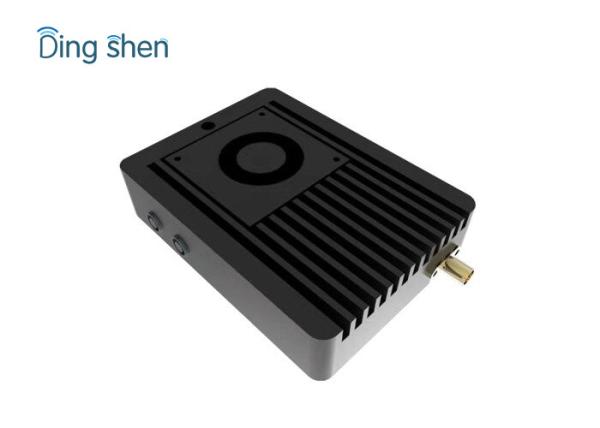

H.265 Mini COFDM Transmitter , UAV video transmitter Low Delay 300-900MHz
H.265 Mini COFDM Transmitter , UAV video transmitter Low Delay 300-900MHz
H.265 Mini COFDM Transmitter , UAV video transmitter Low Delay 300-900MHz
H.265 Mini COFDM Transmitter , UAV video transmitter Low Delay 300-900MHz
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT1W
Place of Origin :
China
MOQ :
1 Set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 works days
Packaging Details :
International packing
Video Compression: :
H.265
Frequency: :
300-900MHz (option)
Power: :
1 WATT
Modulation: :
COFDM
AV Interface: :
HDMI/HD-SDI, CVBS
Weight: :
200g
Description

H.265 Mini UAV COFDM Video Transmitter Video and Data Low Delay High-speed Transmission

Mini COFDM UAV Video Transmitter Description:

Model DS-HDT1W is our powerful full HD av signals transmitter,using the core of mobile communication technology COFDM,which can transmit good quality and stable Full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. 2-5W rf power output adjustable.Support full HD 1080P(1080i) H.265 encoding format and HDMI/HD-SDI inputs (single selection) as well support CVBS stereo balance audio input and narrowband transmission system.

Features:

● 1W rf power adjustable

● COFDM modulation technology ensure the stability of signal

● Support FULL HD quality,1080i/P@30fps;

● Built-in with HD and BNC ports;

● Provide AES128 encryption for video safety.

● It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz.;

● Low delay time

● With four holes at the bottom of the transmitter for fixed installation

● Widely used in helicopter shooting, Live broadcast and etc…

Transmitter parameter:

Modulate COFDM
Working voltage DC12V
Working current ≤6A@DC12V
RF bandwidth 2/4/6/8MHz (adjustable)
Frequency 300-900Mhz or other frequency customized
Output power 1W
Video input HDMI/SDI; CVBS
Data input (option) RS232/TTL, up to 115200bps
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps
Video coding MPEG-2/H.264/H265
Video rate 512Kbps-16Mbps (adjustable)
Encryption AES 128 bits
AV input 1Vp-p, 75Ω. Left and right channel
Video system PAL/NTSC
Power flatness Full band ≤1.5dB
CNR ≥25dBc@48dBm
Second harmonic ≥60dBc
CBER <2.0E-4
VBER <1.0E-7
MER 32dB
Carrier 2k 4k 8k
Constellation QPSK,16QAM,64QAM (option)
FEC 1/2, 2/3, 3/4, 5/6, 7/8 (option)
Guard Interval 1/32, 1/16, 1/8, 1/4 (option)
Working Temperature -25°C~55°C
Dimension 130*100*43mm
Weight 660g

External modulation display:


Rack-mounted type COFDM HD Video Receiver

Receiver parameter:

Frequency 170-900MHz, VHF&UHF
Bandwidth 2/3/4/5/6/7/8MHz (option)
RF input level -94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance 50Ω
RF input type N type
Modulation COFDM
Constellation QPSK,16QAM,64QAM(adjustable)
FEC 1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier 2k
Guard Interval 1/32,1/16,1/8,1/4(adjustable)
Video coding MPEG-2/H.264MP@ML
Screen 4:3 16:9
Video resolution 1080P@4MHz
Audio output Stereo unbalance 300/ 200mv
AV output 2 Audio output + 2 Video output. SDI/HDMI/ASI
Working voltage AC220V/DC12V ＜1A
working temperature -20℃～+50℃
Dimension 480*260*45(1U chassis)
Weight 1.5kg
