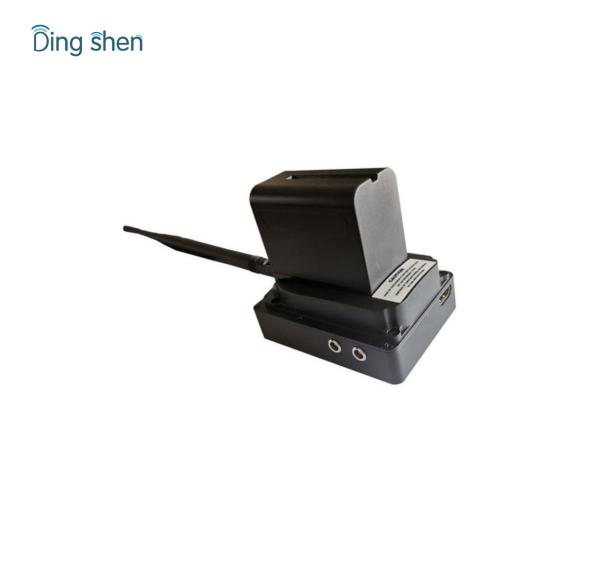

500m NLOS Long Range HD COFDM Video Transmitter With 1 Watt Power
500m NLOS Long Range HD COFDM Video Transmitter With 1 Watt Power
500m NLOS Long Range HD COFDM Video Transmitter With 1 Watt Power
500m NLOS Long Range HD COFDM Video Transmitter With 1 Watt Power
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT1W
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
200 Set/Sets per Month
Delivery Time :
3-7 works days
Packaging Details :
International packing
Product Name: :
Cofdm Wireless Video Transmitter
Frequency: :
300MHz-900MHz
Power: :
12V DC
RF Power: :
1 Watt
Encryption: :
AES 128/256 Bits
Weight: :
133g
Description
High Light:

12V DC COFDM Video Transmitter

,

500m COFDM Video Transmitter

,

NLOS COFDM Wireless Video Transmitter

500m NLOS Long Range HD COFDM Video Transmitter with 1 Watt Power​

Description of Digital wireless video sender:

DS-HDT1WL small video transmitter is a micro full HD COFDM video transmitter, specially designed for UAV, UGV and body-worn use. It is a rugged,miniature,high definition digital video transmitter ideal for long range video and data control purpose. DS-HDT1WL transmitter is in full HD resolution with HDMI input for HDMI camcorder connection, and data serial port(RS485/RS232/TTL) for two-way data transmission.

The increased compression and efficiency of the H.264/H.265 encoder offers users additional range with the added benefit of small size,low latency and low power consumption.In particular, COFDM provides robust,secure and reliable video transmission over long ranges.And its great security of the transmission can be ensured using the optional internal AES user defined encryption from end to end.

Specification of portable transmitter:

Voltage DC12V
Power supply DC12V/600mA
AV input

HDMI: support

HD1080P/1080I,720P,576,480;
Data serial port (option) RS485/RS232/TTL, two-way communication
Frequency 300~900MHz (optional); other frequencies customized
Bandwidth 2/2.5/4/8MHz(adjustable)
RF power 1 Watt (30dBm)
Encryption AES -user defined password
Modulation COFDM,2K,QPSK
Constellation QPSK,16QAM,64QAM
Carrier 2K,8K
Flatness Full band≤2dB,8MHz≤0.5dB
FEC 1/2,2/3,3/4,7/8
Guard Interval 1/32,1/16,1/8,1/4
Video Compression H.265/H.264/MPEG-4
Resolution 720P ,1080i/1080P@60fps
Parameter control method User can Set up the related parameters by the control buttons
Built-in small LCD display parameters,but will be shut up in 3 seconds after on.
Power switch ON/OFF simple operation
CNR(weighting) ≥58 dB
Sloping field SNR ≥50 dB
RF Interface SMA
Video formats PAL/NTSC(self-adaption)
Low latency 200ms
Working temperature -20℃～75℃
Dimension 100*60*16mm
Weight 133g

Features of lightweight digital video transmitter:

* COFDM modulation;

* Small size, lighter and low power consumption;

* Full HD video resolution, H.264/H.265 compression;

* inbuilt with HDM-I and two- way data serial port;

* Heat dissipation with aluminum case;

* Great security by AES user defined encryption;

* Ideal for UAV / UGV and hidden mission use;

* Low latency.

UAV video transmitter application:

500m NLOS Long Range HD COFDM Video Transmitter With 1 Watt Power
