Military Grade Long Range COFDM Wireless Video Transmitter With 100W Power Amplifier
Military Grade Long Range COFDM Wireless Video Transmitter With 100W Power Amplifier
Military Grade Long Range COFDM Wireless Video Transmitter With 100W Power Amplifier
Military Grade Long Range COFDM Wireless Video Transmitter With 100W Power Amplifier
Specifications
Brand Name :
Ding Shen
Model Number :
DS-CMTX100H
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
200 Set/Sets per Month
Delivery Time :
3-7 works days
Packaging Details :
International packing
Product Name: :
100W High Power Video Transmitter
RF Power: :
60-100 Watt (adjustable)
Video Compression: :
H.264
Video Input: :
HDM-I; SDI; CVBS
Frequency: :
300MHz-900MHz(adjustable)
Power: :
28V DC
Description

100 Watt COFDM Wireless Video Transmitter

,

Military COFDM Wireless Video Transmitter

,

COFDM Video Transmitter With 100W Amplifier

Military Grade Long Range COFDM Wireless Video Transmitter with 100W Power Amplifier

Description:

The DS-CMTX100H is a powerful COFDM digital wireless video & data transmitter from DingShen Technology. With the latest COFDM modulation, narrow-band, and H.264 encoder technology as its code, the DS-CMTX100H COFDM HD video audio digital transmitter sends high definition images ideal for establishing rugged wireless video links in different environments, like mobile and urban environments.

The high power and high definition makes the DS-CMTX100H COFDM video transmitter ideal for large UAV super long range video communication and mobile vehicle to vehicle, or mobile vehicle to command center building wireless video communication applications, enabling true long range HD video & data transmission.

Specification:

Voltage DC 28V
Bandwidth 2/2.5/4/8MHz
Frequency video 300MHz~900MHz, 1MHz increment; other Frequency can be customized
Frequency data (Option) 433MHz or other band
Modulation COFDM 2K
RF power 60-100W (adjustable)
FEC 1/2, 2/3, 3/4, 7/8
Guard interval 1/32, 1/16, 1/8, 1/4
Video port HDM-I /HD-SDI / CVBS
Data port (Option) RS232 / RS485
Video resolution 1080P/i & 720P/i
Video coding H.264/H.265
Video format PAL/NTSC
Encryption AES128/256bits
Dimension 480*460*135mm
Weight 8.1kg
Parameter setting user manually setting via touch screen


Special features:

* 1080P high quality video images transmission
* strong safety with AES user-defined passwords

* ultra low latency, 100ms end to end
* 100 Watts high power and low latency
* support NLOS and fast moving environments but still in stable signals transmission
* easy operation by digital panel configuration, and LCD display
* designed in military-grade level
* voice and video logn range transmission

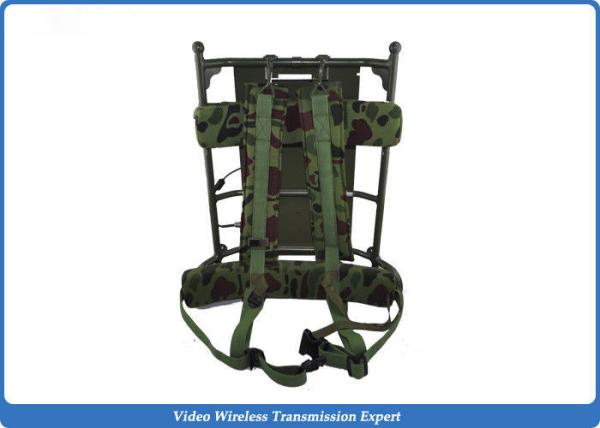

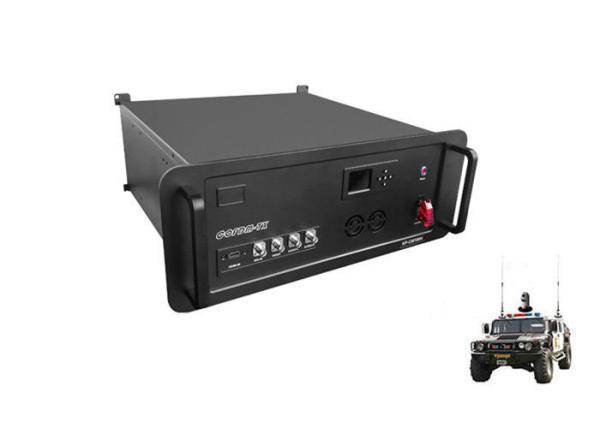

Appearance:

Military Grade Long Range COFDM Wireless Video Transmitter With 100W Power Amplifier

Military Grade Long Range COFDM Wireless Video Transmitter With 100W Power AmplifierMilitary Grade Long Range COFDM Wireless Video Transmitter With 100W Power Amplifier
