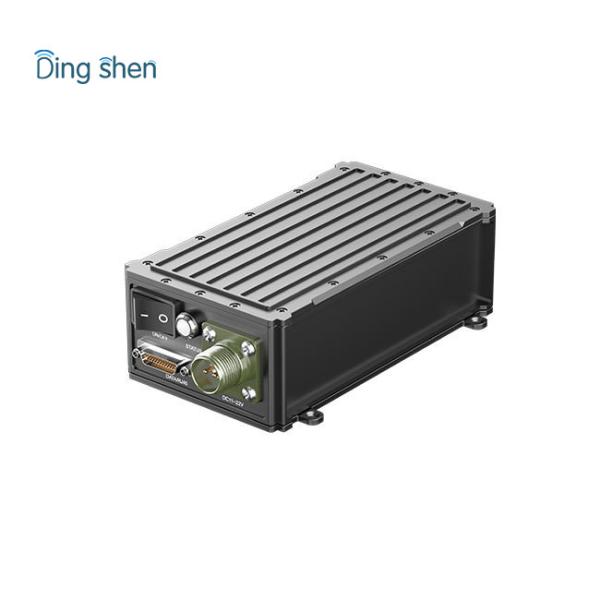

Multi hop ad hoc networking protocols wireless audio video transmitter for UAV data transmission
Multi hop ad hoc networking protocols wireless audio video transmitter for UAV data transmission
Multi hop ad hoc networking protocols wireless audio video transmitter for UAV data transmission
Multi hop ad hoc networking protocols wireless audio video transmitter for UAV data transmission
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HF0505UF
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
1,000 units per month
Delivery Time :
3-7 works days
Packaging Details :
International packing
Product name :
UAV telemetry video data transmission
Function :
Wireless Video Transceiver
Transmission distance :
50km, 100km, 250km max
Transmission power :
3-8 watts(adjustable)
Resolution :
720P/1080P/4K
Description

Customized Light COFDM Wireless Video Transceiver 100-250KM Long Range Security Devices Wireless IP MESH for UAV

DS-HF0505UF
Customized Light COFDM Wireless Video Transceiver 100-250KM Long Range Security Devices Wireless IP MESH for UAV
DS-HF0505UF adopts Ding Shen key technology of COFDM modulation as its core, allowing a group of mesh nodes to form a seamless and extremely secure private network in either line of sight (LOS) or none line of sight (NLOS) and fast moving conditions.
With its strong hopping frequency feature, it can hop 1200 times per second, it is very suitable for uavs to realize anti-interference in the complex warfare environment, this feature makes telemetry data and remote video transmit more stably and safely.
Multi hop ad hoc networking protocols wireless audio video transmitter for UAV data transmission
Specification
Transmission feature
Transmitting power
5W (Customizable)
Frequency
1.4G (Customizable)
Bandwidth
1/2/5/10/20/40MHz(Adjustable)
Nodes
32/64/128(Customizable)
Transmission range
250KM (Air To Ground)
Power supply
Operation voltage
DC12-24V
Current
1.6A
Signal feature
Interface
S.MA/USB 2.0/RS422/RJ45/HD,SBUS(Customizable)
Sensitivity
-106dBm
Baud rate
115200bps(adjustable)
RF connector
N type
Encryption
AES128 / AES256/user defined
Physical feature
Operation temperature
-20°C ~ +55°C
Storage temperature
-40°C ~ +70°C
Size:
78mm*144mm*65mm(Customizable)
Weight
Appr 800g (Customizable)
Multi hop ad hoc networking protocols wireless audio video transmitter for UAV data transmission
