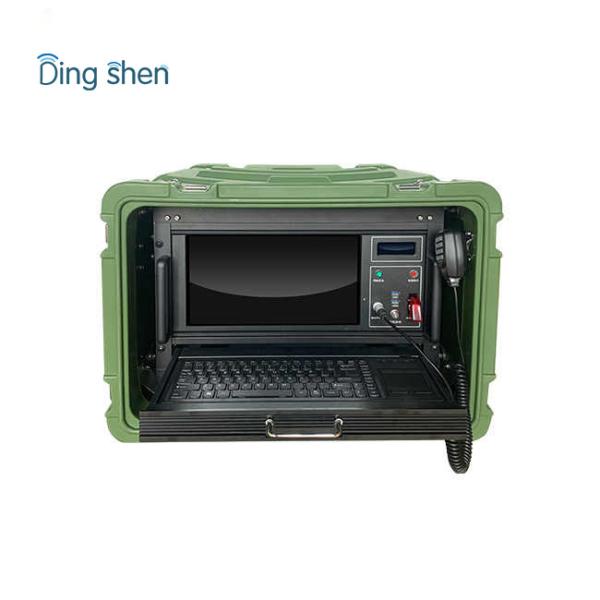

FDD Digital long range communication in network solution COFDM transceiver with RJ45 Ethernet
FDD Digital long range communication in network solution COFDM transceiver with RJ45 Ethernet
Specifications
Brand Name :
Ding Shen
Model Number :
DS-FDD100
Place of Origin :
China
MOQ :
1 Set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 works days
Packaging Details :
International packing
Frequency :
optional
Data :
rs485, rs422, rs232 (for data)
NLOS :
50Km
Weight :
undetermined
Video interface :
hd, HD-SDI, BNC
Serial port :
RS232/RS485 serial port
Description

COFDM models IP RJ45 interface 50km NLOS video transmitter

FDD Digital long range communication in network solution COFDM transceiver with RJ45 Ethernet

DS-FD100VCS is a new COFDM digital transmitter receiver with Frequency-division duplexing (FDD) technology, designed with dual-mode RF transceiver system which operate at different carrier frequencies ideal for long range communication in network solution. The FDD technique uses different frequency bands for video radio sending and receiving with no interference.

Feature:

* COFDM modulation,different carrier frequencies technology

* Low latency

* great transfer rate for uplink and downlink

* Built in with hd, SDI, Ethernet, serial ports

* Dual frequency is ideal for long-distance required

* Dynamic AES encryption 128bits

* Narrowband bandwidth 1M/2M/4M/8MHz available

* Work well in NLOS fast moving condition

* Integrated design, super linear

* User easy to operate the related parameters by LCD panel with keypad

Model DS-FD100VCS
Working voltage DC28V/ AC110~240V
Working current 20A_DC28V
Frequency 1 555MHz (300-2500MHz selection)
Frequency 2 595MHz (300-2500MHz selection)
RF bandwidth 1/2/4/8MHz
Output power 100W (50dBm)
Encryption/decryption mode AES128 bits user-defined password
modulation COFDM 2K
Transfer rate 2x30 Mbit/s uplink and downlink
RF connector N *2
Ethernet Standard RJ45 port *2
Video interface hd, HD-SDI, BNC
Voice speaking Aviation plug
Serial port RS232/RS485 serial port
Baud rate 115200bps max
LCD panel with keypad Easy to set/modify the related parameters
Dimension undetermined
Weight undetermined

FDD Digital long range communication in network solution COFDM transceiver with RJ45 EthernetFDD Digital long range communication in network solution COFDM transceiver with RJ45 Ethernet
