Long Range 660Mhz FPV Video Transmitter and Receiver 10km LOS 8 Channels
Long Range 660Mhz FPV Video Transmitter and Receiver 10km LOS 8 Channels
Long Range 660Mhz FPV Video Transmitter and Receiver 10km LOS 8 Channels
Long Range 660Mhz FPV Video Transmitter and Receiver 10km LOS 8 Channels
Long Range 660Mhz FPV Video Transmitter and Receiver 10km LOS 8 Channels
Long Range 660Mhz FPV Video Transmitter and Receiver 10km LOS 8 Channels
Specifications
Brand Name :
Dingshen
Model Number :
DS-MHA25
Place of Origin :
China
MOQ :
1 set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
3,00pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Model number: :
DS-4688TX2W
Voltage :
DC12V
Current :
700mA
Frequency :
460Mhz~880Mhz
Channels :
8 channels
Transmitter Weight :
60g
Dimensions (L * W * H) :
72*46*17mm; 75*45*20mm
Description

Long Range 660Mhz FPV Video Transmitter and Receiver 10km LOS 8 Channels

660Mhz Long Range Video FPV Transmitter and Receiver 10km LOS 8 Channels

Analog Video Transmitter Description:

It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.

DS-MHA25

wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 2dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 2000-4000m or so, and 10km LOS from air to ground. And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.



Features:

  • Responsive, timely, send and receive real-time transmission
  • Using FM mode, anti-interference ability, good image quality
  • Highly integrated, stable and reliable transmission distance
  • DC power supply, easy to use.
  • Wireless transmission: no need to set up communications cable
  • Image, audio sync, color black and white compatible
  • Small size, light weight, easy to carry, good installation
  • Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

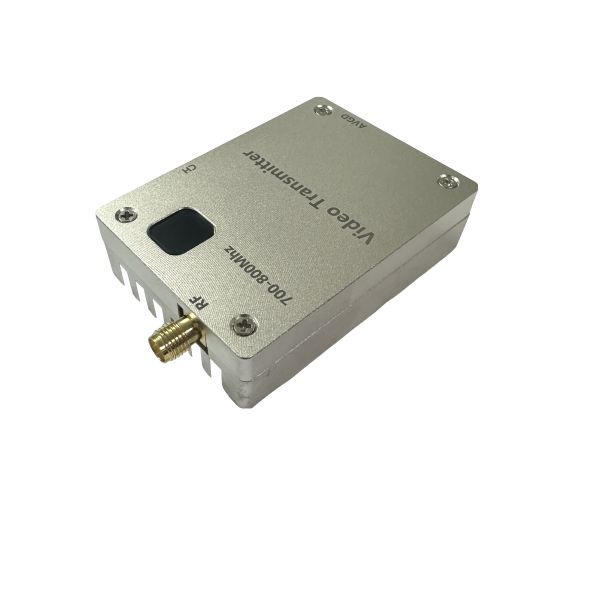

460~880Mhz Wireless AV Transmitter

Video Output 1 Vp-p(FM)
Audio Output 1 Vp-p(FM)
Audio Carrier Ware 5.5M 6.0M
Temperature -10℃ ~ +50℃
Antenna port SMA
Transmitter Weight 60g
Dimensions (L * W * H) 72*46*17mm; 75*45*20mm

VTX Specification:

Model number: DS-4688TX2W
Voltage DC 12V
Current 700mA
Modulation AM
Frequency 460Mhz~880Mhz
Channels 8 channels
Frequency band 500Mhz: (460Mhz, 480Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz).
600~700Mhz: (600Mhz, 620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz).
700-800Mhz: (740Mhz, 760Mhz, 780Mhz, 800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz)
Transmit Power 2 watt

Long Range 660Mhz FPV Video Transmitter and Receiver 10km LOS 8 ChannelsLong Range 660Mhz FPV Video Transmitter and Receiver 10km LOS 8 ChannelsLong Range 660Mhz FPV Video Transmitter and Receiver 10km LOS 8 Channels
