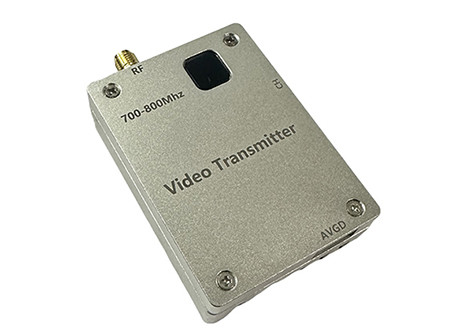

700Mhz Analog TV Transmitter 8000mW Wireless Transmission DC 12V
700Mhz Analog TV Transmitter 8000mW Wireless Transmission DC 12V
700Mhz Analog TV Transmitter 8000mW Wireless Transmission DC 12V
700Mhz Analog TV Transmitter 8000mW Wireless Transmission DC 12V
700Mhz Analog TV Transmitter 8000mW Wireless Transmission DC 12V
700Mhz Analog TV Transmitter 8000mW Wireless Transmission DC 12V
Specifications
Brand Name :
Dingshen
Model Number :
DS-4688TX2W
Place of Origin :
China
MOQ :
1 set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
3,00pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Voltage :
DC12V
Current :
700mA
Modulation :
AM
Channels :
8 channels
Transmitter Weight :
60g
Temperature :
-10℃ ~ +50℃
Description

700Mhz Analog TV Transmitter 8000mW Wireless Transmission DC 12V

VTX Specification:

Model number: DS-4688TX2W
Voltage DC 12V
Current 700mA
Modulation AM
Frequency 460Mhz~880Mhz
Channels 8 channels
Frequency band 500Mhz: (460Mhz, 480Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz).
600~700Mhz: (600Mhz, 620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz).
700-800Mhz: (740Mhz, 760Mhz, 780Mhz, 800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz)
Transmit Power 2 watt
Video Output 1 Vp-p(FM)
Audio Output 1 Vp-p(FM)
Audio Carrier Ware 5.5M 6.0M
Temperature -10℃ ~ +50℃
Antenna port SMA
Transmitter Weight 60g
Dimensions (L * W * H) 72*46*17mm; 75*45*20mm

transmitter and receiver is designed for industrial long-range wireless transmission applications that utilize 700Mhz frequency.

The transmittr offer an open field range of up to 20km with the included antennas. Even greater range can be achieved using receive-side directional antennas such as Yagi’s and flat panel antennas. (if the working environment is Non-line-of-sight, transmission distance is case by case). And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.

It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.

Features:

1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC Supply Input, easy to use.

8. External Whip Antenna Included

9. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

Installing:

A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack

B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation

C. Set the same channel with transmitter and receiver
700Mhz Analog TV Transmitter 8000mW Wireless Transmission DC 12V700Mhz Analog TV Transmitter 8000mW Wireless Transmission DC 12V
